– Position the handlebar clamps. Mount and evenly tighten the four screws 1.
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
Info
Make sure the gap width is even.

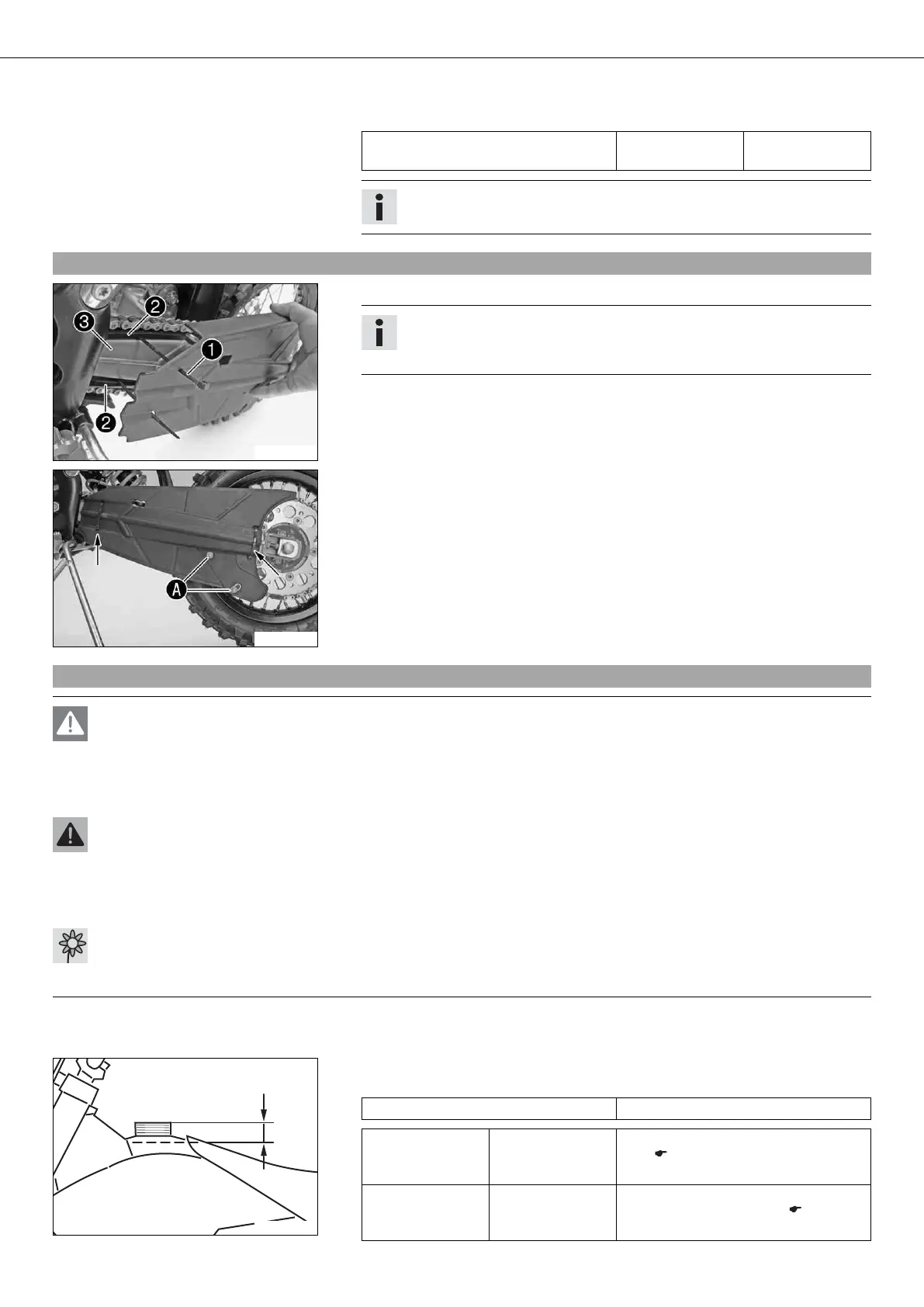

3.4Installing the chain guard (50 SX)
100816-10
– Position the chain guard. Mount cable binder 1.
Info
The cable binder must be run between chain sliding guard 2 and
swingarm 3.
100817-10
– Mount the cable binder at the rear.
– Align the chain guard so that screws A of the chain guide are visible.
– Tighten the cable binder and cut off the ends.
3.5Refueling
Danger
Fire hazard Fuel is highly flammable.
– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
– Fuel in the fuel tank expands when warm and can escape if the tank is overfilled. See the notes on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Avoid contact of the fuel with skin, eyes and clothing. Do not inhale fuel vapors. If fuel gets into your eyes, rinse imme-
diately with water and contact a doctor. Wash affected skin areas immediately with soap and water. If fuel is swallowed,
contact a doctor immediately. Change clothing that has come into contact with fuel.
Warning
Environmental hazard Improper handling of fuel is a danger to the environment.
– Do not allow fuel to get into the ground water, the ground, or the sewage system.
– Switch off the engine.
– Open the filler cap.
400214-10
– Fill the fuel tank with fuel up to measurement A.
Guideline
Measurement of A 35 mm (1.38 in)
Fuel tank
capacity, approx.
(50 SX Mini)
2.0 l (2.1 qt.) Super unleaded (ROZ 95/RON 95/PON
91) ( p. 8)
Fuel tank
capacity, approx.
(50 SX)
2.3 l (2.4 qt.) Super unleaded gasoline, mixed with
2-stroke engine oil (1:60) ( p. 8)
– Close the filler cap.
