ENGLISH
6
SERIAL NUMBER LOCATIONS »
OPERATION INSTRUMENTS »

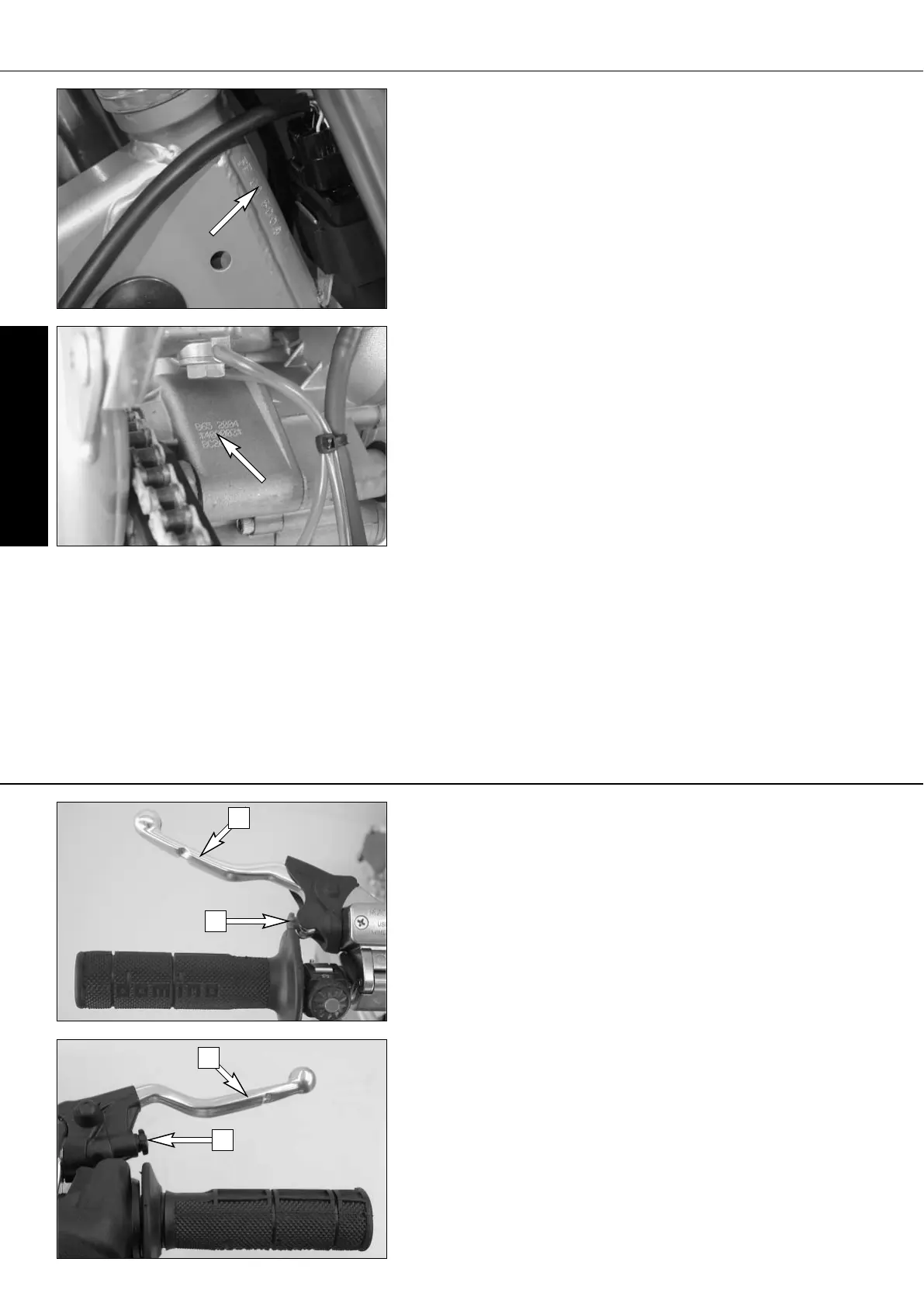

Chassis number
The chassis number is stamped on the right side of the steering head tube.
Enter this number in the field on page no 1.
Engine number
The engine number is stamped into the engine housing underneath the
carburetor. Enter this number in the field on page no 1.
Clutch lever
The clutch lever [1] is located on the left side of the handlebar. The adjust-
ing screw [A] is used to change the original position of the clutch lever (see
maintenance work on chassis and engine).
The clutch is hydraulically actuated and adjusts itself automatically.
Hand brake lever
The hand brake lever [2] is mounted on the handle bars on the right and actu-
ates the front wheel brake. The adjusting screw [B] can be used to change
the basic position of the hand brake lever (see maintenance work on chassis
and engine).
1
A
2
B
