OPERATION INSTRUMENTS »
Kickstarter

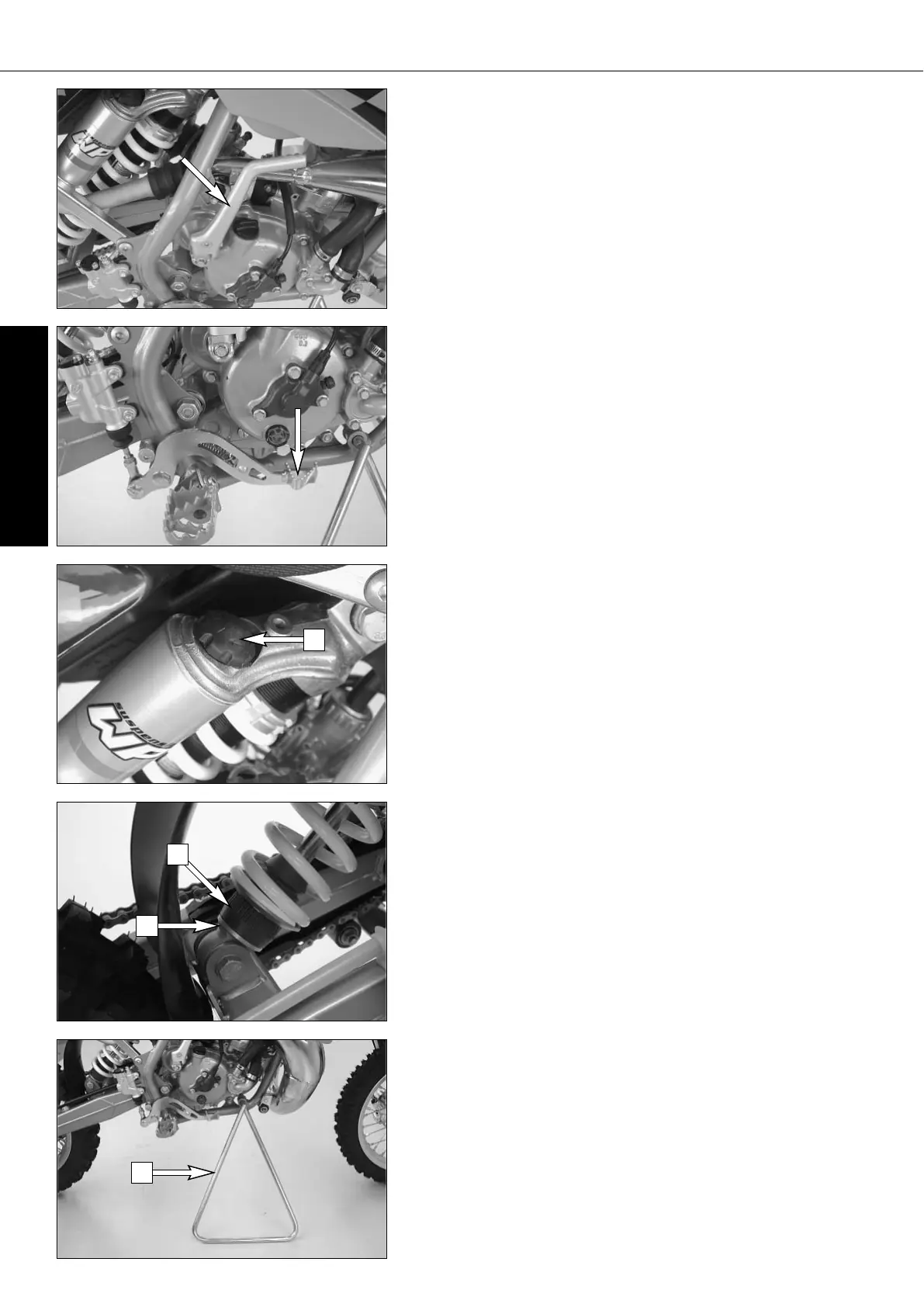

The kickstarter is mounted on the right side of the engine. Its upper part can
be swivelled.
Foot brake pedal
The foot brake pedal is located in front of the right foot rest. Its basic posi-
tion can be adjusted to your seat position (see maintenance work).
Compression damping of shock absorber
The degree of damping of the compression can be adjusted with the knob [1].
Turning in a clockwise direction will increase the damping, turning in a coun-
terclockwise direction will decrease the damping.
STANDARD ADJUSTMENT:
Turn the knob all the way to the stop in a clockwise direction.
Turn the knob 2 clicks in a counterclockwise direction (= position 3).
Rebound damping function of the shock absorber
The damping effect of the rebound damping mechanism can be adjusted by
levels by means of the setting wheel [2]. Turn the setting wheel clockwise (in)
to increase and counterclockwise (out) to reduce the damping effect.
STANDARD ADJUSTMENT:
Position 6 at the mark [A]
Plugin-stand
A socket is provided on the right side of the frame into which you can plug
the stand [3].
