13 WHEELS, TIRES 102
101997-10
–
Clean and grease the thread of the wheel spindle and screw
.
Long-life grease ( p. 185)

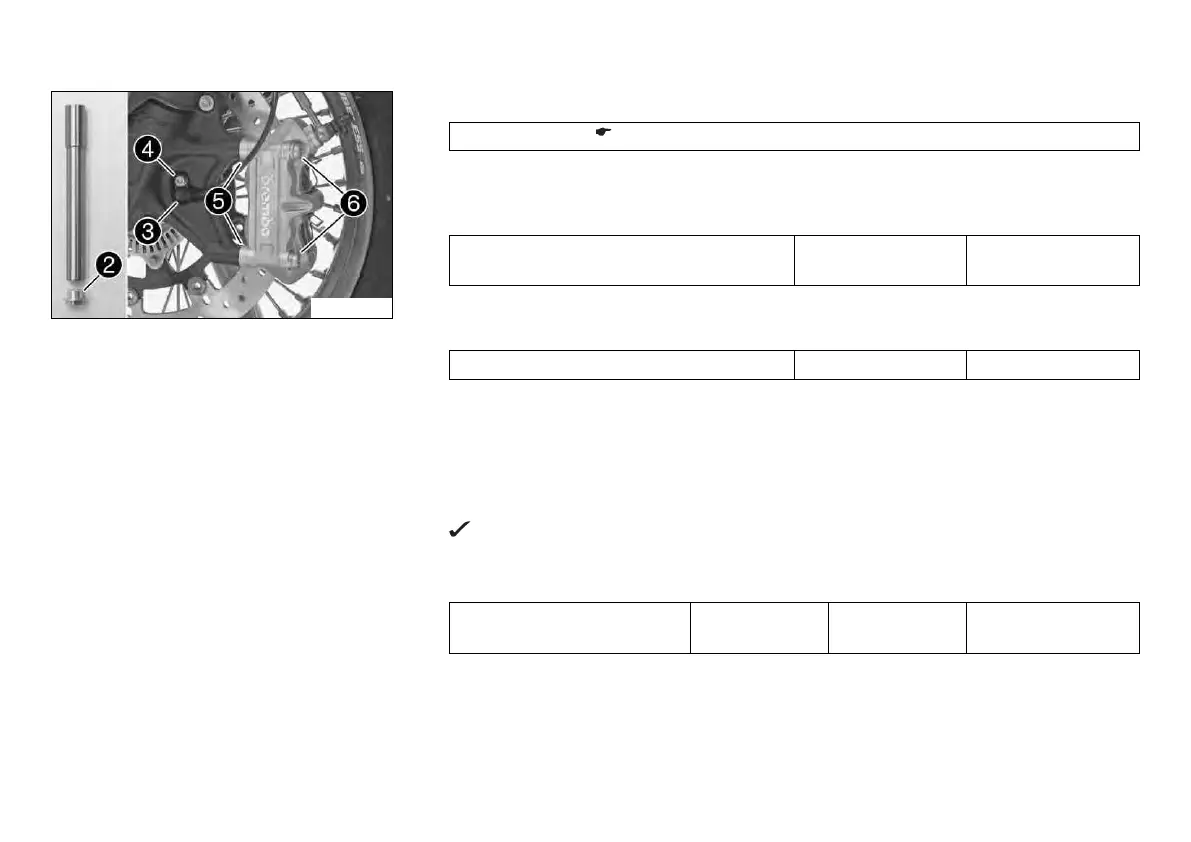

– Lift the front wheel into the fork, position it, and insert the wheel spindle. Mount and
tighten screw
.
Guideline
Screw, front wheel spindle M24x1.5 45 Nm
(33.2 lbf ft)
–
Insert wheel speed sensor
into the hole. Mount and tighten screw
.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Position the brake caliper and check that the brake linings are seated correctly.
–
Position spacers
. Mount screws
but do not tighten.
– Operate the hand brake lever repeatedly until the brake linings are in contact with the
brake disc and there is a pressure point. Fix the hand brake lever in the activated posi-
tion.
The brake caliper straightens.
–
Tighten screws
.
Guideline
Screw, front brake caliper M10x1.25 45 Nm
(33.2 lbf ft)
Loctite
®
243™
– Remove the fixation of the hand brake lever.
