14 ELECTRICAL SYSTEM 114
B01975-10
–

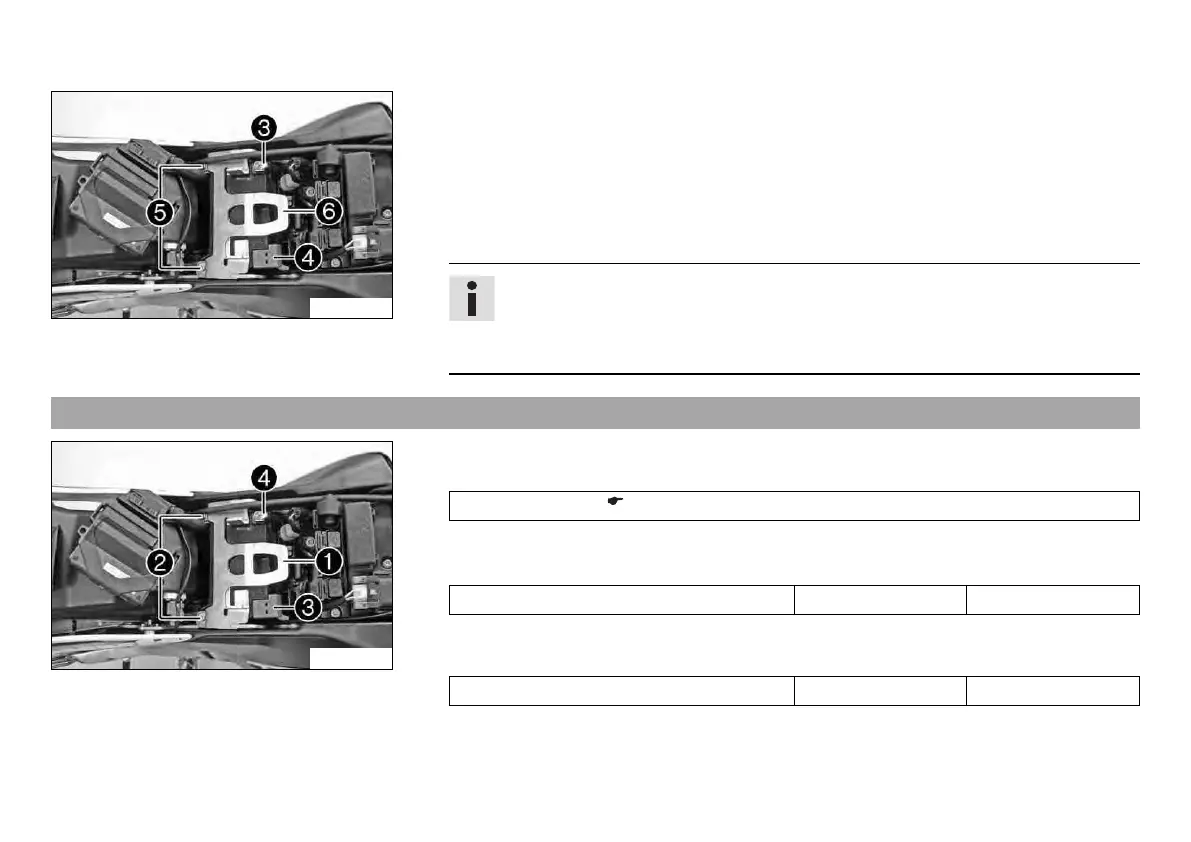

Disconnect negative cable
of the battery.
–
Take off the positive terminal cover
and disconnect the positive cable from the bat-
tery.
–
Remove screws
.
–
Pull retaining bracket
of the battery forward and remove it.
– Lift the battery up and out.
Info
Never operate the motorcycle with a discharged battery or without a battery. In
both cases, electrical components and safety devices can be damaged. The vehi-
cle is therefore no longer roadworthy.
14.2 Installing the battery x
B01975-11
Main work
– Insert the battery into the battery compartment with the terminals facing rearward.
Battery (YTZ10S) ( p. 173)
–
Position retaining bracket
and mount and tighten screws
.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Position the positive cable and mount and tighten the screw.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
–
Position positive terminal cover
.
–
Position negative cable
and mount and tighten the screw.
