SERVICE
WORK
ON
THE
ENGINE
147
100206-10
–

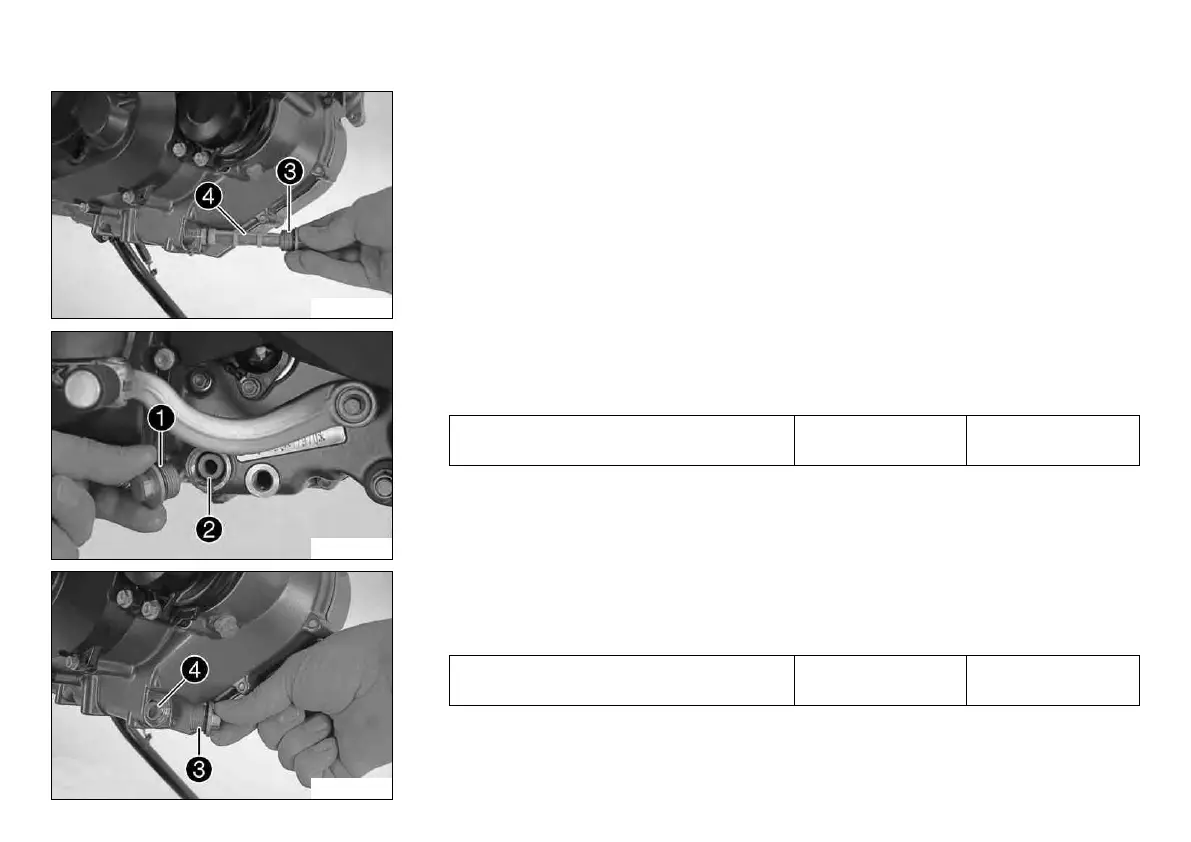

Remove
screw
plug
with
oil
screen
and
the
O-rings.
–
Completely
drain
the
remaining
engine
oil.
–
Thoroughly
clean
the
parts
and
sealing
area.
100207-10
–
Position
oil
screen
with
the
O-rings.
–
Mount
and
tighten
screw
plug
with
the
O-ring.
Guideline
Plug,
oil
screen
M20x1.5
15
Nm
(11.1
lbf
ft)
100208-10
–
Position
oil
screen
with
the
O-rings.
–
Mount
and
tighten
screw
plug
with
the
O-ring.
Guideline
Plug,
oil
screen
M20x1.5
15
Nm
(11.1
lbf
ft)
148
