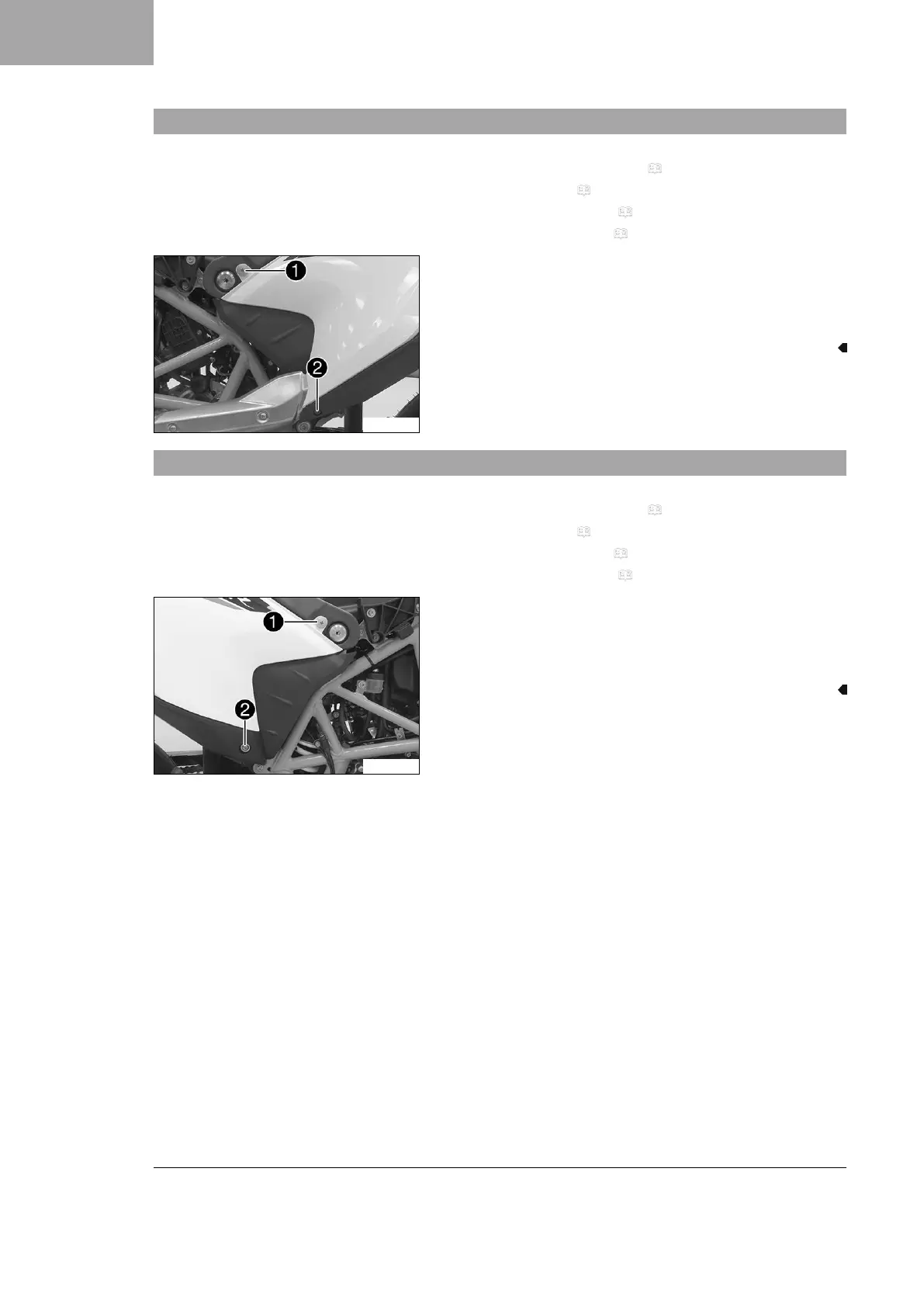

3.12 Removing the rear left side cover
Preparatory work
– Open the fuel tank filler cap. ( p. 12)
– Remove the seat. ( p. 8)
– Remove the rear fairing. ( p. 13)
– Take off the side cover. ( p. 13)
R05344-10
Main work
–
Remove screw
1
.
–
Remove screw
2
.
– Take off the side cover.
3.13 Removing the rear right side cover
Preparatory work
– Open the fuel tank filler cap. ( p. 12)
– Remove the seat. ( p. 8)
– Take off the side cover. ( p. 13)
– Remove the rear fairing. ( p. 13)
R05343-10
Main work
–
Remove screw
1
.
–
Remove screw
2
with the bushing.
– Take off the side cover.
