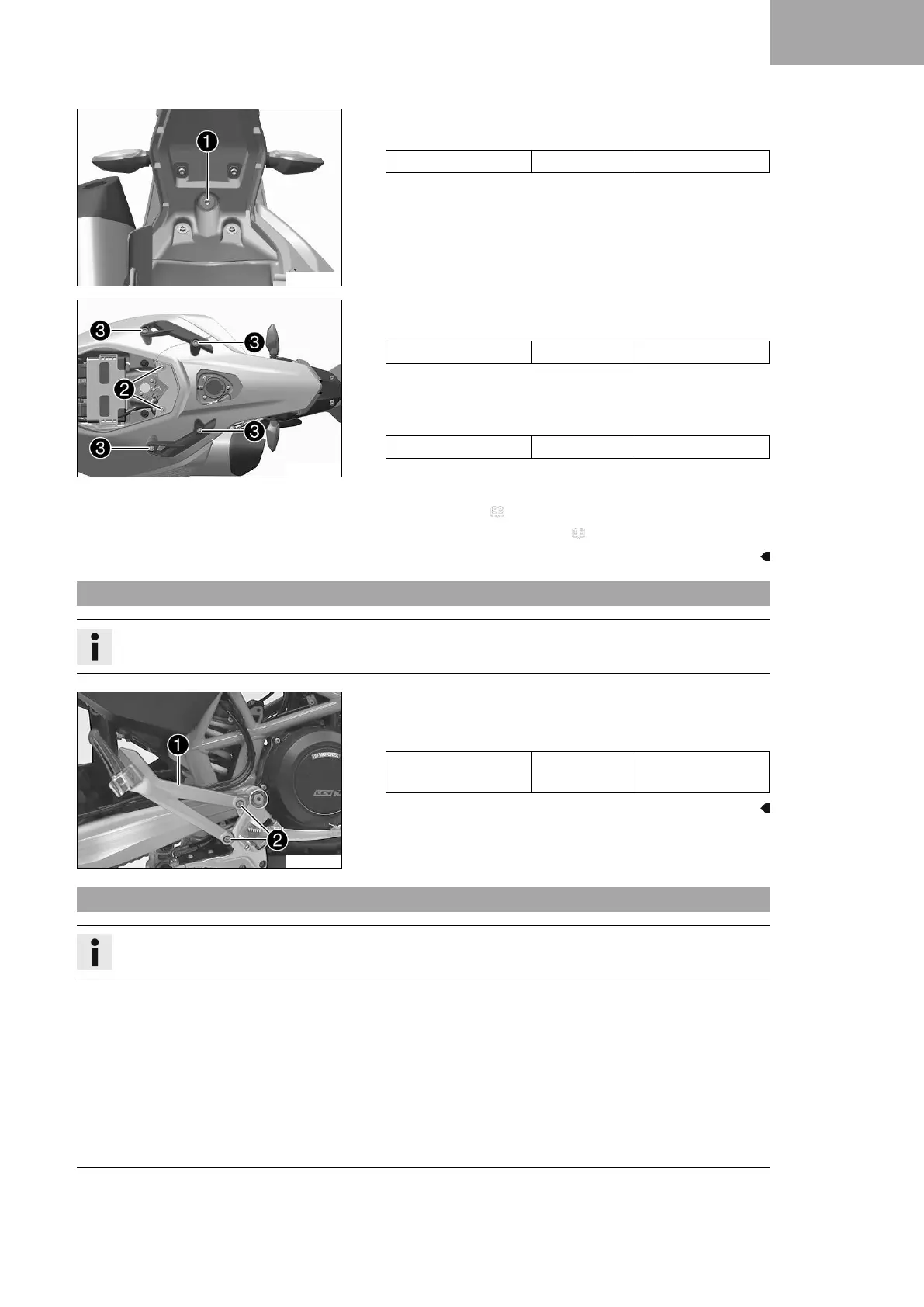

WORK 3
17
D07484-11
–
Mount and tighten screw
1
.
Guideline
Screw, tail section M6x21 10 Nm (7.4 lbf ft)
D07483-11
–
Mount screws
2
with the bushings and tighten.
Guideline
Screw, trim M5x20 2 Nm (1.5 lbf ft)
– Position the grab handle.
–
Mount and tighten screws
3
.
Guideline
Screw, grab handle M8 10 Nm (7.4 lbf ft)
Finishing work
– Mount the seat. ( p. 8)
– Close the fuel tank filler cap. ( p. 12)
3.18 Mounting rear footrest bracket
Info
The operations are the same for the left and right sides.
S00784-10
–
Position the footrest bracket
1
. Mount and tighten
screws
2
.
Guideline
Screw, rear footrest
bracket
M8x16 25 Nm (18.4 lbf ft)
3.19 Mounting heel protector
Info
The operations are the same for the left and right sides.

KTM 690 SMC R 2021 Specifications

General

Displacement	692.7 cm³
Bore x Stroke	105 mm x 80 mm
Power	55 kW (74 hp)
Torque	73.5 Nm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 2 oil pumps
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Suspension	WP APEX 48
Rear Suspension	WP APEX with Pro-Lever linkage
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Ground Clearance	237 mm
Fuel Tank Capacity	13.5 liters
Engine Type	Single cylinder, 4-stroke
Front Brake	Brembo four piston radial caliper, brake disc
Rear Brake	Brembo single-piston floating calliper, brake disc
ABS	Bosch 9.1 MP (incl. Supermoto ABS)
Weight (without fuel)	147 kg
