KTM 790 Adventure R 2020 User Manual

WORK 3
23
The light-dark boundary must be exactly on the lower mark-
ing when the motorcycle is ready to be operated with the
rider mounted along with any luggage and a passenger if
applicable.
» If the boundary between light and dark does not meet
specifications:
– Adjust headlight range. ( p. 23)

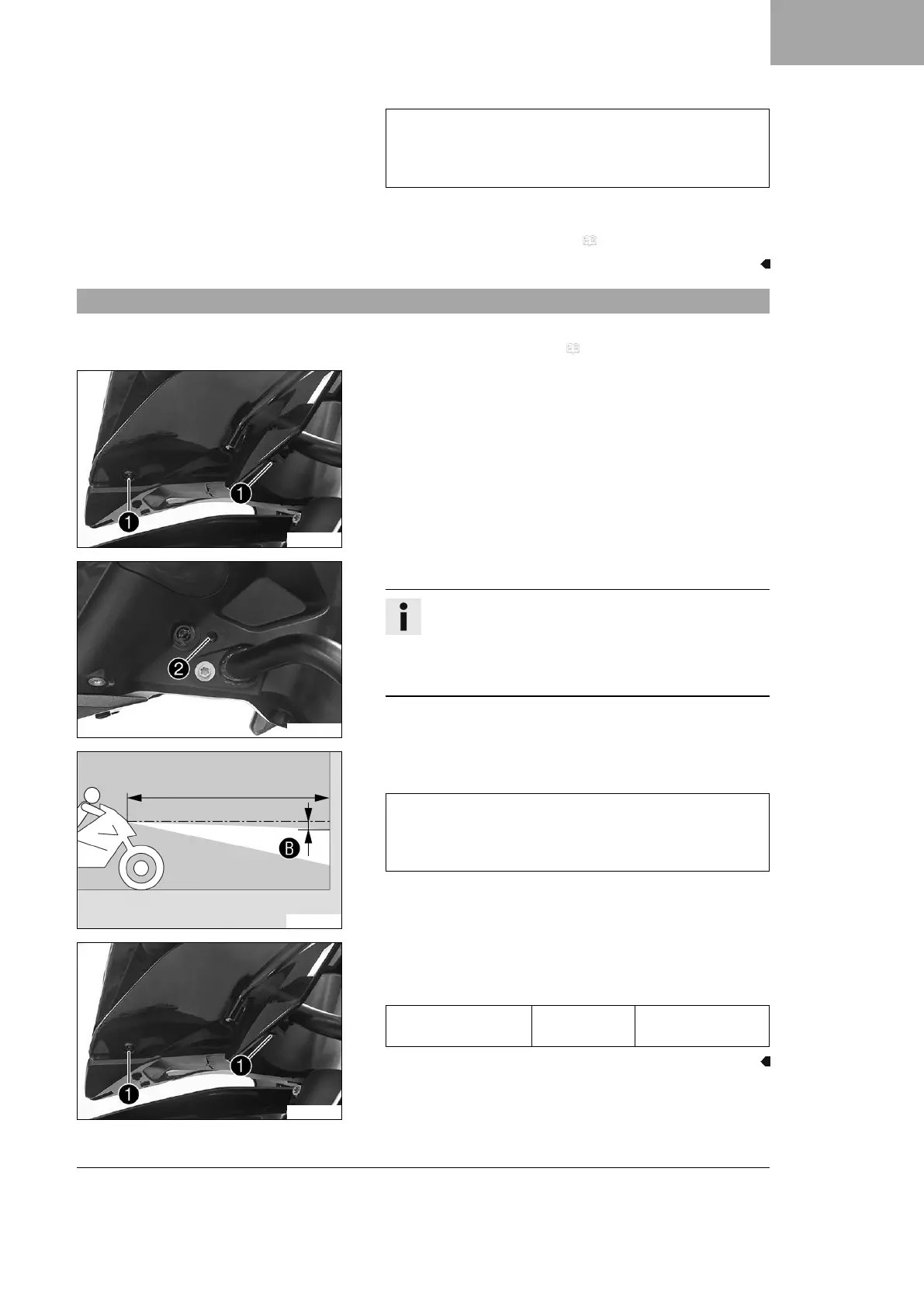

3.19 Adjusting the headlight range
Preparatory work
– Check the headlight setting. ( p. 22)
F02085-10
Main work
–
Remove screws
1
.
– Remove the left mask spoiler.
F02086-10
–
Turn adjusting screw
2
to adjust the headlight range.
Info
Turn clockwise to reduce the headlight range; turn
counterclockwise to increase the headlight range.
If you have a payload, you may have to correct the
headlight range.
400726-11
–
Set the headlight to marking
B
.
Guideline
The light-dark boundary must lie exactly on lower mark-
ing
B
when the motorcycle is ready to operate with the
rider mounted along with any luggage and a passenger, if
applicable.
F02085-10
– Position left mask spoiler.
–
Mount and tighten screws
1
.
Guideline
Remaining screws,
chassis
M5 5 Nm (3.7 lbf ft)

KTM 790 Adventure R 2020 Specifications

General

Displacement	799 cc
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic fuel injection
Cooling System	Liquid cooled
Final Drive	Chain
ABS	Bosch 9.1 MP (incl. Cornering-ABS and offroad mode, disengageable)
Tires Front/Rear	90/90-21 / 150/70-18
Seat Height	880 mm
Ground Clearance	263 mm
Dry Weight	189 kg
Engine Type	2-cylinder, 4-stroke, parallel twin
Bore x Stroke	88 mm x 65.7 mm
Power Output	70 kW (95 hp)
Torque	88 Nm @ 6, 600 rpm
Frame	Chromium-Molybdenum steel trellis frame
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP XPLOR PDS shock absorber, adjustable compression, rebound
Front Brake	Double disc brake, 320 mm
Rear Brake	260 mm disc, 2-piston caliper
Wheels Front/Rear	21-inch / 18-inch
Fuel Tank Capacity	20 liters
