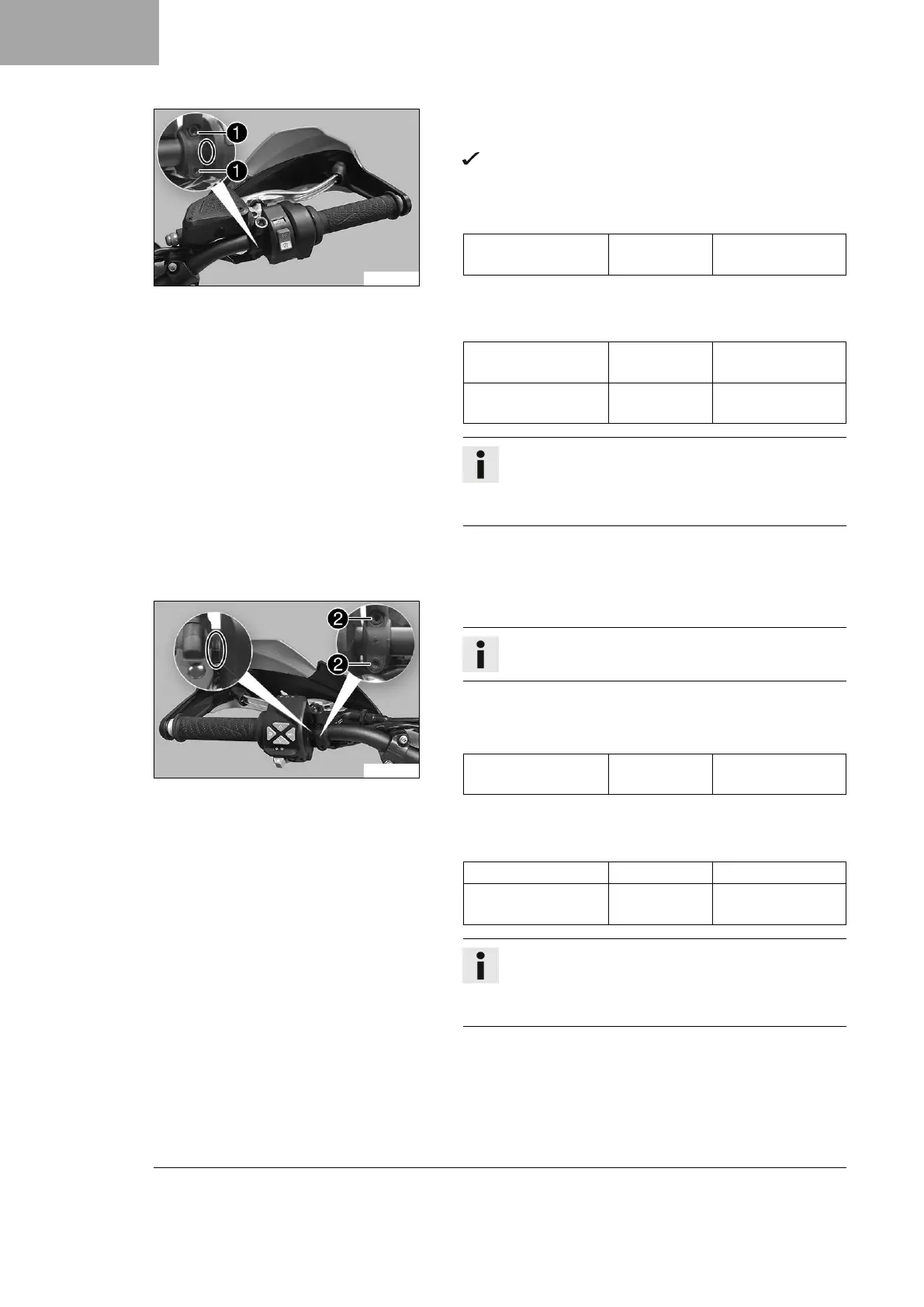

KTM 790 Adventure R 2020 User Manual

2 SETUP
6
F02131-10
– Position the brake assembly on the handlebar.
– Position brake assembly clamp on the handlebar.
The holding lug of the clamp engages in the combination
switch.
–
Mount and tighten screws
1
.
Guideline
Screw, brake assem-
bly
M6 5 Nm (3.7 lbf ft)
– Tighten all the screws on the controls on the right half of the
handlebar.
Guideline
Screw for throttle
grip
M5 3.5 Nm
(2.58 lbf ft)
Screw, combination
switch, right
M5 5 Nm (3.7 lbf ft)
Info
Pay attention to the markings on the handlebar.
Make sure the cables and wiring are positioned cor-
rectly.
– Tie the cables and wires together with the rubber straps sup-
plied.
– Check the throttle grip for smooth operation.
F02132-10
– Position the clutch assembly on the handlebar.
Info
Pay attention to the markings on the handlebar.
– Position the clutch assembly clamp on the handlebar.
–
Mount and tighten screws
2
.
Guideline
Screw, clutch assem-
bly
M6 5 Nm (3.7 lbf ft)
– Tighten all the screws on the controls on the left half of the
handlebar.
Guideline
Screw, fixed grip, left M4 3 Nm (2.2 lbf ft)
Screw, combination
switch, left
M5 2 Nm (1.5 lbf ft)
Info
Pay attention to the markings on the handlebar.
Make sure the cables and wiring are positioned cor-
rectly.
– Tie the cables and wires together with the rubber straps sup-
plied.

KTM 790 Adventure R 2020 Specifications

General

Displacement	799 cc
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic fuel injection
Cooling System	Liquid cooled
Final Drive	Chain
ABS	Bosch 9.1 MP (incl. Cornering-ABS and offroad mode, disengageable)
Tires Front/Rear	90/90-21 / 150/70-18
Seat Height	880 mm
Ground Clearance	263 mm
Dry Weight	189 kg
Engine Type	2-cylinder, 4-stroke, parallel twin
Bore x Stroke	88 mm x 65.7 mm
Power Output	70 kW (95 hp)
Torque	88 Nm @ 6, 600 rpm
Frame	Chromium-Molybdenum steel trellis frame
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP XPLOR PDS shock absorber, adjustable compression, rebound
Front Brake	Double disc brake, 320 mm
Rear Brake	260 mm disc, 2-piston caliper
Wheels Front/Rear	21-inch / 18-inch
Fuel Tank Capacity	20 liters
