KTM 85 SX 2018 User Manual

3 WORK
10
V00843-11
–

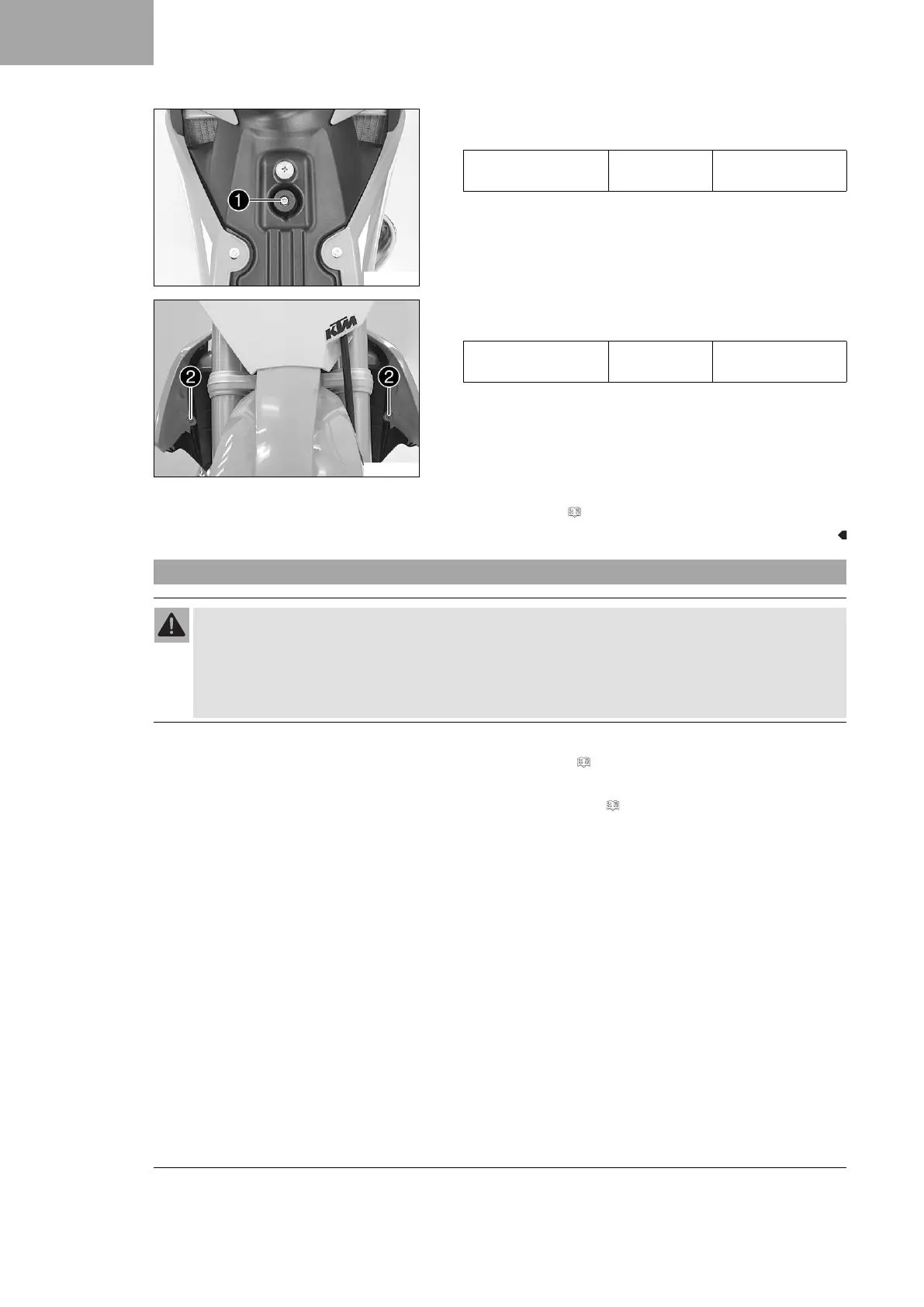

Mount and tighten screw
1
with the rubber bushing.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
V00842-11
–
Mount and tighten screws
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
– Mount fuel hose.
– Position the fuel tank breather in the steering stem.
Finishing work
– Mount the seat. ( p. 7)
3.6 Checking the throttle cable routing
Warning
Danger of accidents The throttle cable may slip out of the guide if routed incorrectly.
The throttle slide will then no longer be closed and the speed can no longer be controlled.
– Make sure that the throttle cable routing and the play in throttle cable complies with the specifica-
tion.
Preparatory work
– Remove the seat. ( p. 7)
– Turn the tap handle of the fuel tap to the OFF position.
– Remove the fuel tank. ( p. 8)

KTM 85 SX 2018 Specifications

General

Engine Type	1-cylinder, 2-stroke engine
Displacement	84.9 cm³
Starter	Kickstarter
Transmission	6-speed
Front Brake	Disc brake
Rear Brake	Disc brake
Chain	1/2 x 5/16"
Steering Head Angle	66°
Cooling	Liquid cooled
Frame Design	Central tube frame, chrome molybdenum steel
Front Suspension	WP Suspension 43
Rear Suspension	WP Suspension Monoshock
Tank Capacity	5.2 l
Fuel System	Carburetor
Front Tire	70/100-17
Rear Tire	90/100-14
Wheelbase	1290 mm
Bore x Stroke	47 mm x 48.95 mm
