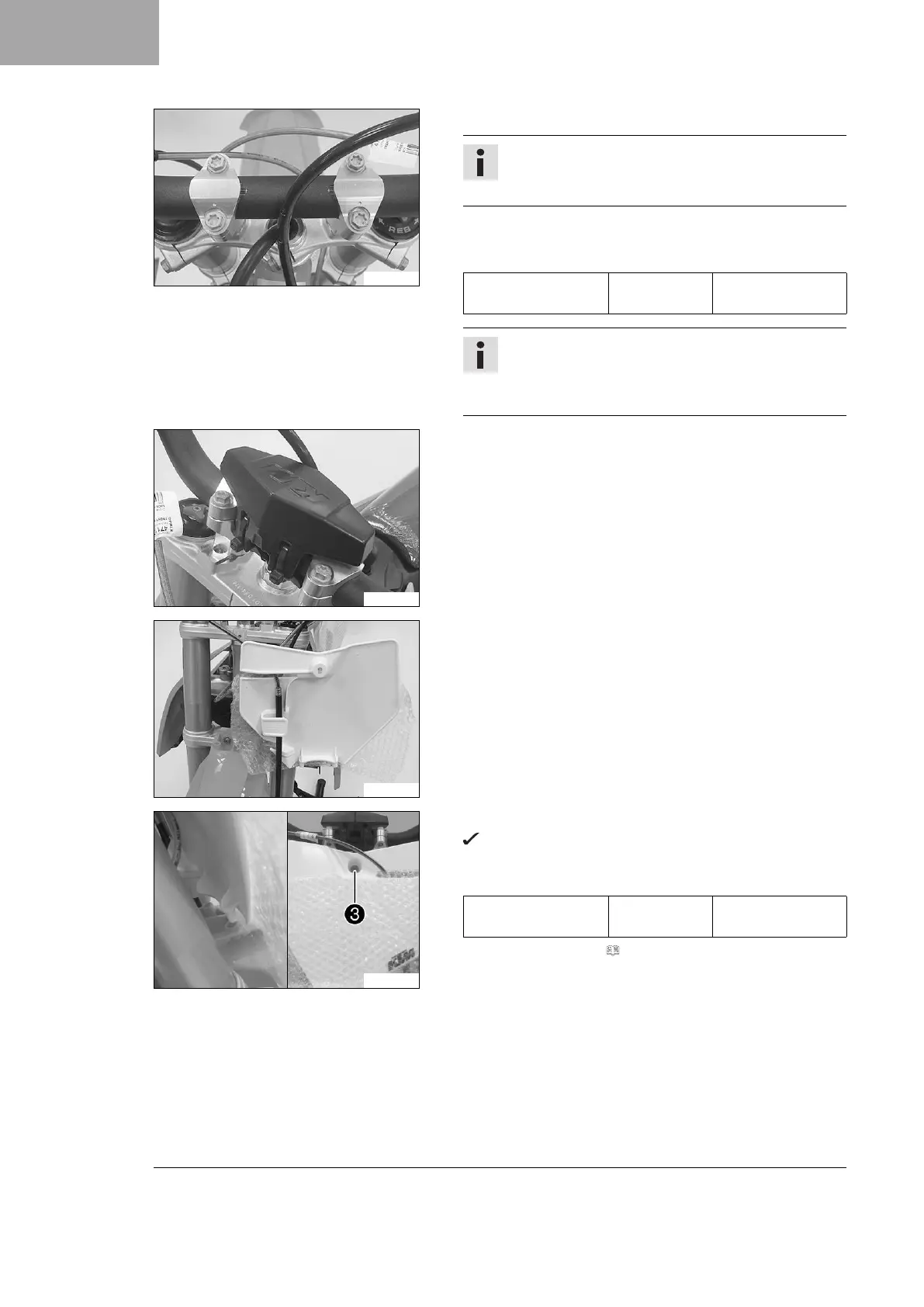

KTM 85 SX 2018 User Manual

2 SETUP
4
V01041-01
– Position the handlebar.
Info
Make sure the cables and wiring are positioned cor-
rectly.
– Position the handlebar clamps. Mount and tighten the screws
evenly.
Guideline
Screw, handlebar
clamp
M8 20 Nm (14.8 lbf ft)
Info
The markings on the handlebar should be at the center
of the handlebar clamps.
Keep the gap widths equal when tightening.
V01042-01
– Position the handlebar cushion and secure with cable ties.
V01043-01
– Attach the start number plate to the brake line.
V01044-10
– Position the start number plate.
The holding lugs engage in the fender.
–
Mount and tighten screw
3
.
Guideline
Start number plate
screw
M6 4 Nm (3 lbf ft)
– Remove the fuel tank. ( p. 8)

KTM 85 SX 2018 Specifications

General

Engine Type	1-cylinder, 2-stroke engine
Displacement	84.9 cm³
Starter	Kickstarter
Transmission	6-speed
Front Brake	Disc brake
Rear Brake	Disc brake
Chain	1/2 x 5/16"
Steering Head Angle	66°
Cooling	Liquid cooled
Frame Design	Central tube frame, chrome molybdenum steel
Front Suspension	WP Suspension 43
Rear Suspension	WP Suspension Monoshock
Tank Capacity	5.2 l
Fuel System	Carburetor
Front Tire	70/100-17
Rear Tire	90/100-14
Wheelbase	1290 mm
Bore x Stroke	47 mm x 48.95 mm
