ENGLISH
34
MAINTENANCE WORK ON CHASSIS AND ENGINE »

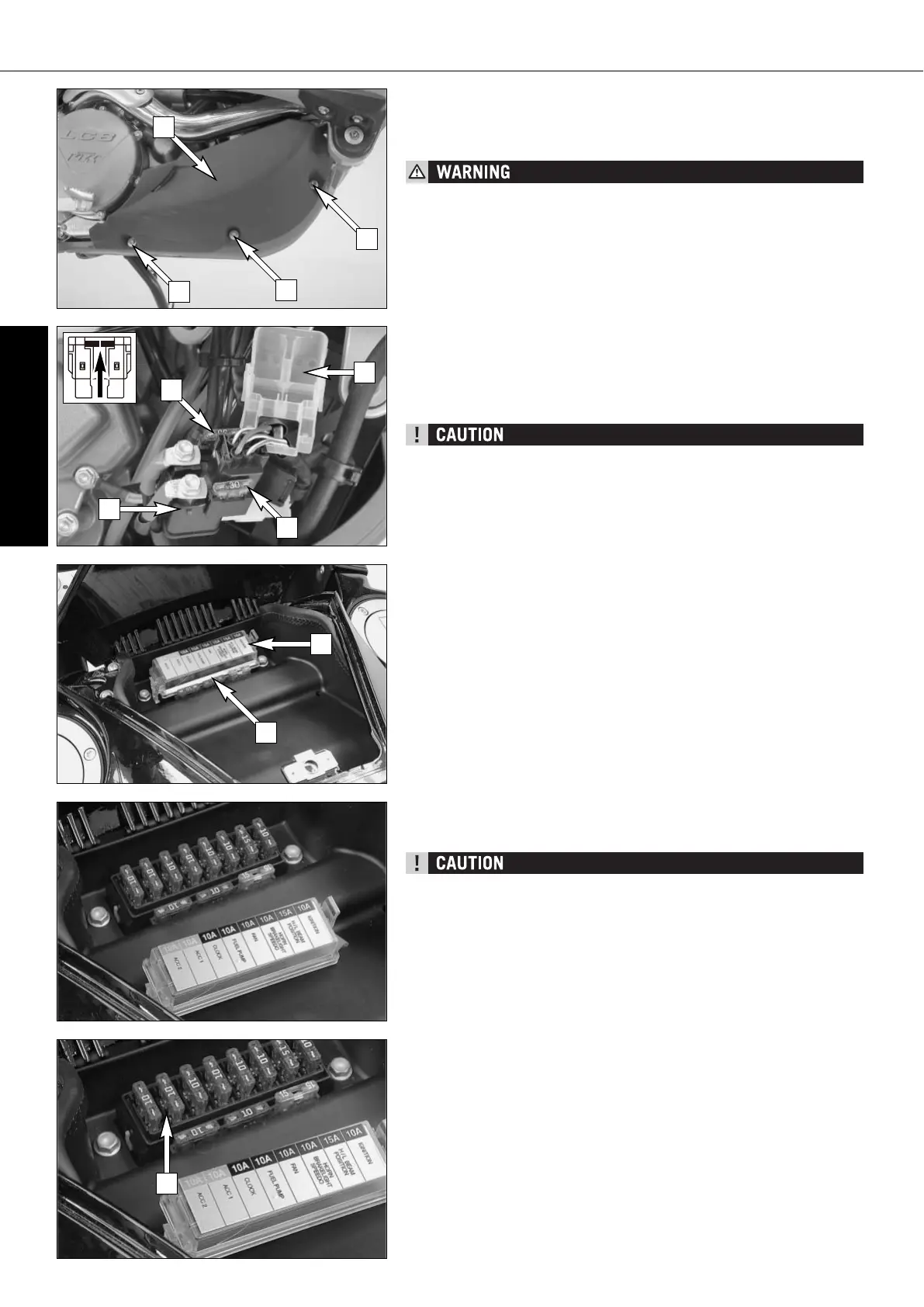

Main fuse
The main fuse protects all of the motorcycle's current consumers. The main
fuse is located in the starter relay under the right engine cowl. Remove the
screws [1] and take off the engine cowl [2].
DO NOT BURN YOURSELF ON THE HOT EXHAUST PIPE.
Lift the starter relay [3] out of the bracket, remove the cap [4] and check the
main fuse [5]. A spare fuse [6] (30 ampere) is also plugged into the starter
relay.
Replace a blown fuse only with an equivalent one. If a new fuse that has just
been set in gets blown again, you are strongly advised to have it
inspected by a KTM dealer.
UNDER NO CIRCUMSTANCES IS A STRONGER FUSE ALLOWED TO BE SET IN OR
A FUSE ALLOWED TO BE “REPAIRED”. AN INEXPERT TREATMENT COULD DAM-
AGE THE WHOLE ELECTRICAL INSTALLATION!
Fuses for individual current consumers
A fuse box with additional fuses is mounted in the storage compartment to
separately protect the current consumers against short circuits.
The current consumers and the corresponding fuse capacities are listed on
the cover of the fuse box [7]. The fuse box also contains 10 and 15-ampere
spare fuses [8].
Replace a blown fuse only with an equivalent one. If a new fuse that has just
been set in gets blown again, you are strongly advised to have it
inspected by a KTM dealer.
UNDER NO CIRCUMSTANCES IS A STRONGER FUSE ALLOWED TO BE SET IN OR
A FUSE ALLOWED TO BE “REPAIRED”. AN INEXPERT TREATMENT COULD DAM-
AGE THE WHOLE ELECTRICAL INSTALLATION!
The ACC 1 and ACC 2 fuses [9] are designed for accessory equipment with
a maximum current consumption of 10 amperes each. The respective con-
nectors for this equipment are provided under the headlight cover. For more
information, contact an authorized KTM workshop.
2
1
1
1
3
4
5
6
7
8
9
