KTM 950 ADVENTURE User Manual

ENGLISH
42

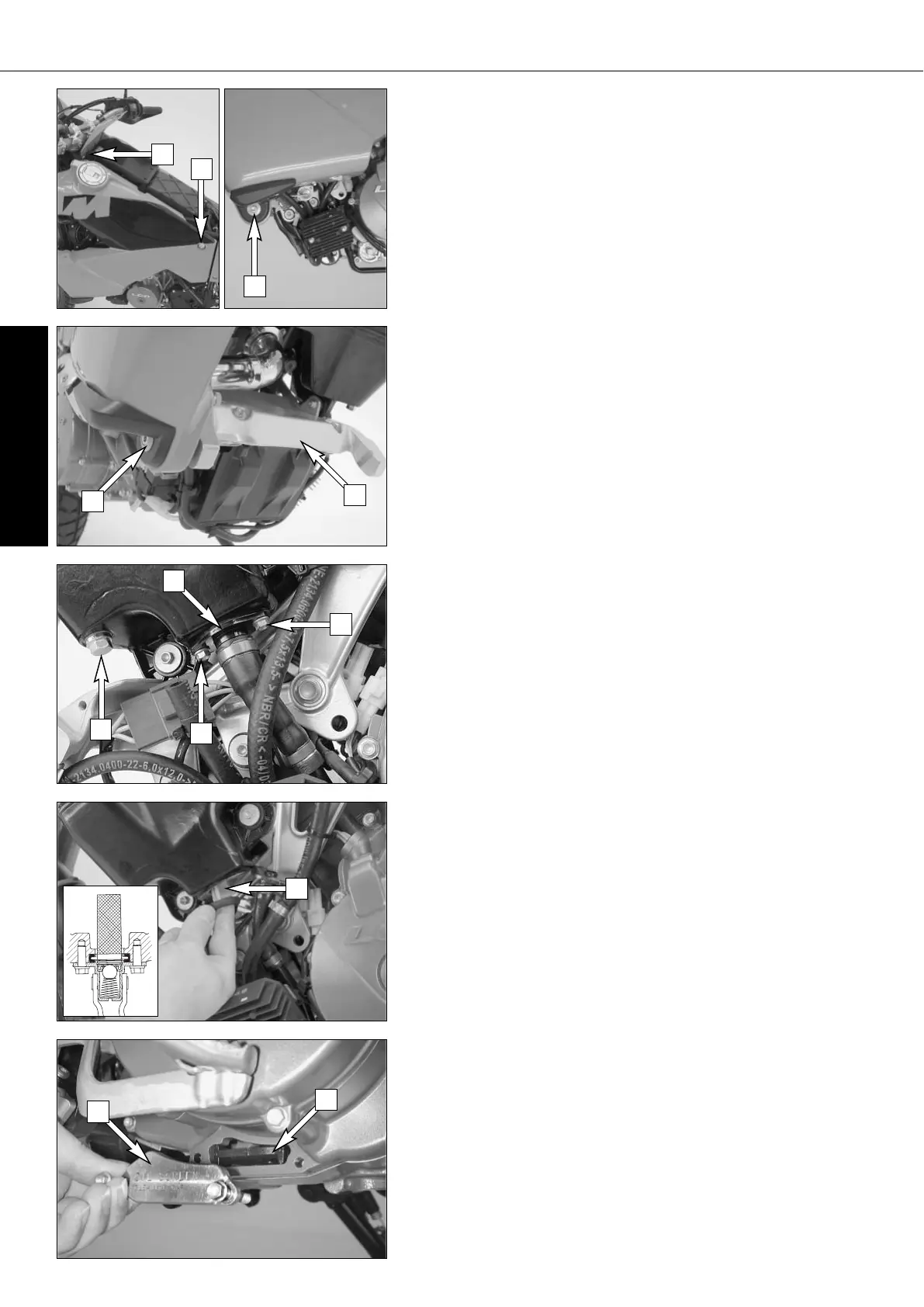

Remove the 3 screws [1], lift the tank approx. 15 mm and carefully tilt to the
side. Disconnect the connector from the pickup cable (fuel level) and set the
tank down.
Remove the lower screw [2] on the right tank. Remove the HH screws and
take off the battery cover [3].
Remove the drain plug [4] on the oil tank and allow the oil to drain into a
receptacle. Remove the screws [5] and tilt the oil return valve [6] to the side.
Carefully pull the oil screen [7] out of the oil tank.
Thoroughly clean the drain plugs, the cover and both oil screens. Clean all
rubber seal rings and check for damage. Replace if necessary.
Mount the oil drain plug on the engine with a new seal ring and tighten to
20 Nm.
Slide the oil screen [8] into the guides in the oil pump housing with the TOP
mark facing up. Make sure the form ring is in place and mount the cap [9].
Tighten the screws to 10 Nm.
1
1
1
2
3
4
5
5
6
7
8
9
MAINTENANCE WORK ON CHASSIS AND ENGINE »

KTM 950 ADVENTURE Specifications

General

Engine Type	V-twin, 4-stroke
Displacement	942 cc
Cooling System	Liquid cooled
Transmission	6-speed
Front Suspension	WP USD 48 mm
Bore x Stroke	100 mm x 60 mm
Fuel System	Carburetor
Rear Suspension	WP monoshock
Front Brakes	Dual 300 mm discs, 2-piston calipers
Rear Brakes	240 mm Brembo disc with 2-piston caliper
Fuel Capacity	22 liters
Power	98 hp
Torque	95 Nm
Wheelbase	1570 mm
