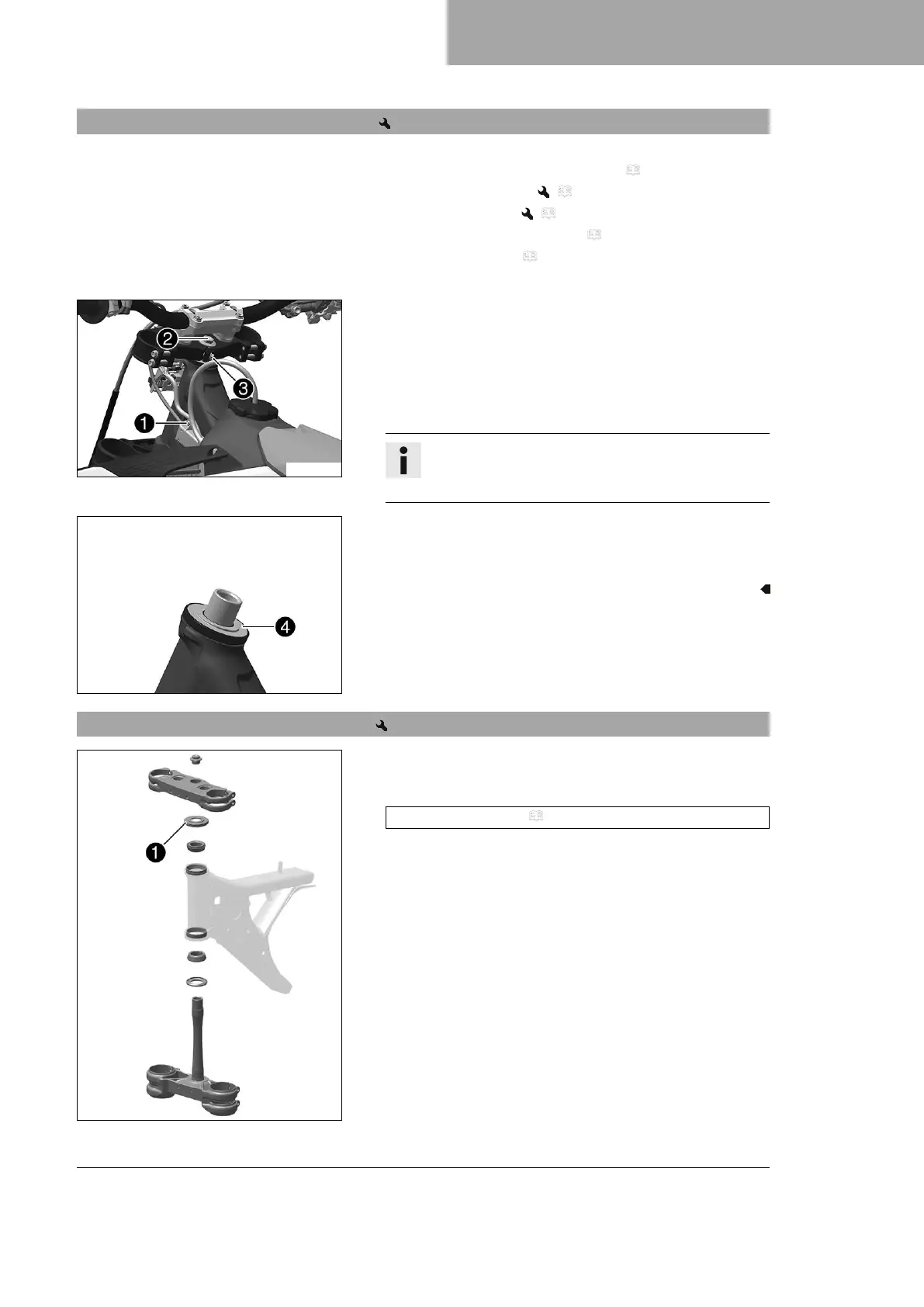

11.9 Removing the lower triple clamp
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 49)
– Remove the front wheel. ( p. 93)
– Remove the fork legs. ( p. 51)
– Remove the start number plate. ( p. 57)
– Remove front fender. ( p. 57)
– Take off the handlebar cushion.
S05332-10
Main work
–
Remove screw
1
. Detach the wiring harness.
–
Remove screw
2
.
–
Remove screw
3
.
– Take off the upper triple clamp with the handlebar and place
to one side.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
S05333-10
–
Remove the steering head seal
4
.
– Remove the lower triple clamp with steering stem.
– Remove the upper steering head bearing.
11.10 Installing the lower triple clamp
F03661-10
Main work
– Clean the bearing and sealing elements, check for damage,
and grease.
High viscosity grease ( p. 141)
– Insert the lower triple clamp with the steering stem. Mount
upper steering head bearing.
–
Push on the steering head seal
1
.
