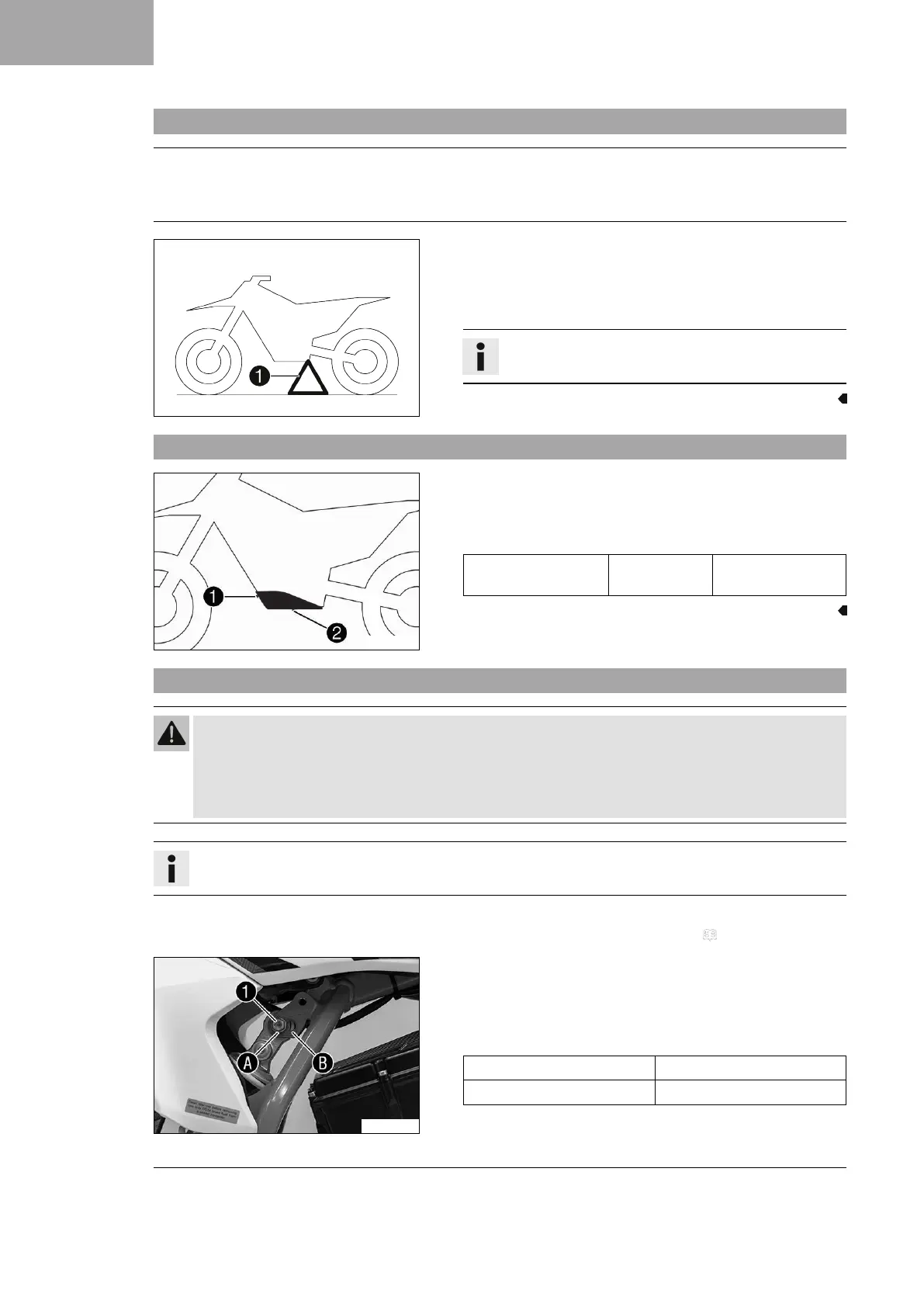

3.8 Removing the motorcycle from the lift stand
Note
Danger of damage The parked vehicle can roll away or fall over.
– Park the vehicle on a firm and level surface.
402581-10
– Remove the motorcycle from the lift stand.
– Remove the lift stand.
–
To park the motorcycle, insert plug-in stand
1
into the plug-
in stand bracket on the left side of the vehicle.
Info
Remove the plug-in stand before riding.
3.9 Installing the motor guard
T04024-11
– Attach the motor guard on the frame at the rear and swing up
at the front.
–
Mount and tighten screws
1
and
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
3.10 Adjusting the seat height on the shock absorber
Warning
Danger of accidents Modifications to the suspension setting may seriously alter the handling characteris-
tic.
– Make sure your child rides slowly to start with after making adjustments in order that he or she can
assess the new handling characteristic.
Info
If the seat height is adjusted on the shock absorber, the seat height should also be adjusted on the fork.
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 9)
M01660-10
Main work
–
Hold the rear wheel with the link fork and remove screw
1
.
– Position the shock absorber according to the required seat
height.
Guideline
High seat position
A
Low seat position
B
–
Mount and tighten screw
1
.
