Section 1: Assembly & Set-up
Table of Contents
4/5/19AP-SRF2772, AP-SRF2790, AP-SR2772, & AP-SR2790 Powered Rakes 321-120MK
12
Skid Steer Requirements
The Powered Rake is designed to fit on Skid Steer
Loaders with the following minimum requirements:
• SR2772 & SRF2772
Hitch type . . . . . . . . . . . . . . . . .Universal quick attach
SAE lift capacity . . . . . . . . . . . . . . . . . . . . . . 1200 lbs
Hydraulic requirements. . . . . . . . . 12 gpm at 2250 psi
Maximum hydraulic pressure . . . . . . . . . . . . 3500 psi
• SR2790 & SRF2790
Hitch type . . . . . . . . . . . . . . . . .Universal quick attach
SAE lift capacity . . . . . . . . . . . . . . . . . . . . . . 1600 lbs
Hydraulic requirements. . . . . . . . . 15 gpm at 2250 psi
Maximum hydraulic pressure . . . . . . . . . . . . 3500 psi
Section 1: Assembly & Set-up
Hitch Assembly of the SRF27 Series Power Rake
Spiked Roller and Material Control Blades Omitted for Clarity

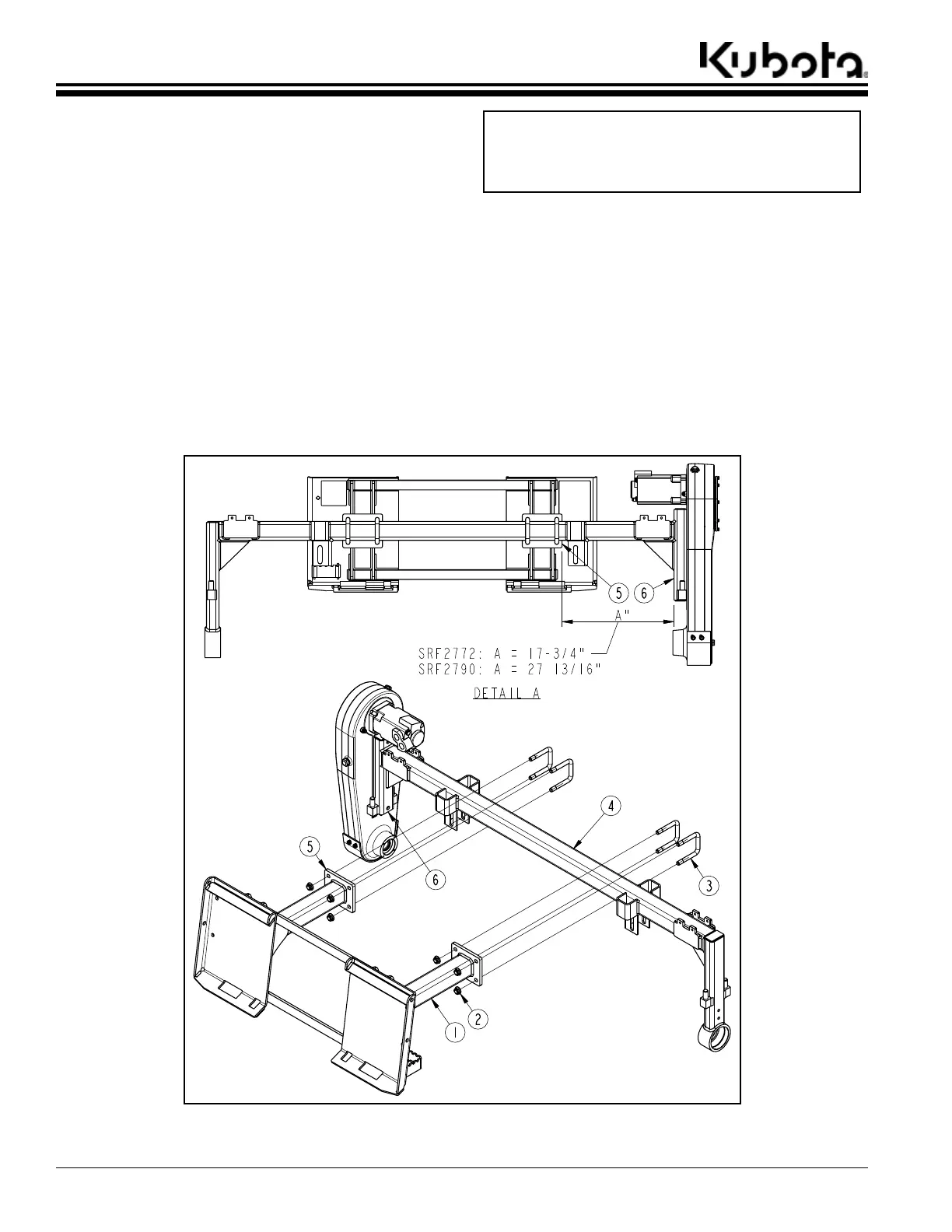

Figure 1-1
SRF27 Series Fixed Hitch Assembly
Refer to Figure 1-1:
1. Attach fixed hitch (#1) to mainframe (#4) with 5/8"-11
GR5 u-bolts (#3) and hex flange locknuts (#2). Draw
locknuts up loosely, Do not tighten at this time.
2. Adjust fixed hitch (#1) left or right on mainframe (#4)
until left edge of mounting plate (#5) is spaced “A”
dimension from inside surface of left-hand tube (#6).
• SRF2772: “A” = 17 3/4" as shown in Detail A
• SRF2790: “A” = 27 13/16" as shown in Detail A
3. Tighten hex flange locknuts (#2) to the correct torque
for a grade 5 bolt.
IMPORTANT: Ballast may need to be added to your
skid steer to maintain steering control and to prevent
tipping. Refer to your skid steer Operator’s Manual to
determine if additional ballast is needed.
