83PERIODIC SERVICE

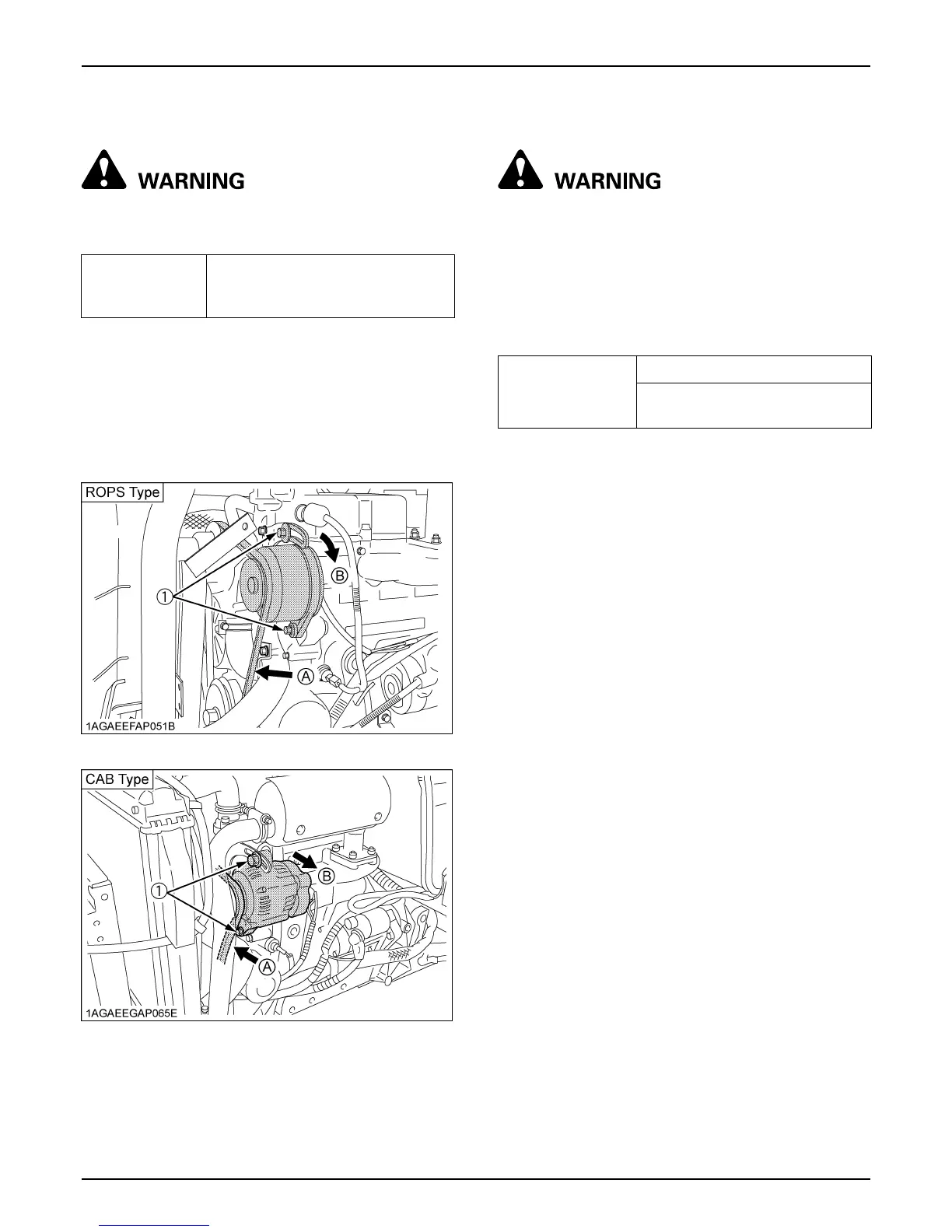

BAdjusting Fan Belt Tension
To avoid personal injury or death:
A Be sure to stop the engine before checking belt
tension.
1. Stop the engine and remove the key.
2. Apply moderate thumb pressure to belt between
pulleys.
3. If tension is incorrect, loosen the alternator mounting
bolts and, using a lever placed between the alternator
and the engine block, pull the alternator out until the
deflection of the belt falls within acceptable limits.
4. Replace fan belt if it is damaged.
BAdjusting Brake Pedal
To avoid personal injury or death:
A Stop the engine and chock the wheels before
checking brake pedal.
A Be sure that the difference is 5 mm or less,
when the right and left brake pedals are
depressed. If the difference is large, the brake
pull to one side when braking, and cause an
accident.
1. Release the parking brake.
2. Slightly depress the brake pedals and measure free
travel at the top of pedal stroke.
3. If adjustment is needed, loosen the lock nut and turn
the turnbuckle to adjust the rod length within
acceptable limits.
4. Retighten the lock nut.
Proper fan belt
tension
A deflection of between 7 to 9 mm
(0.28 to 0.35 in.) when the belt is
pressed in the middle of the span.
(1) Bolt (A) Check the belt tension
(B) To tighten
Proper brake pedal
free travel
30 to 40 mm on the pedal
Keep the free travel in the right
and left brake pedals equal.
To Next Page
