ENGLISH
ATTACHING THE MOWER
3
CAUTION
To avoid personal injury:
¡¡
¡¡
¡ Shut off the engine and remove the key
before attaching the mower.

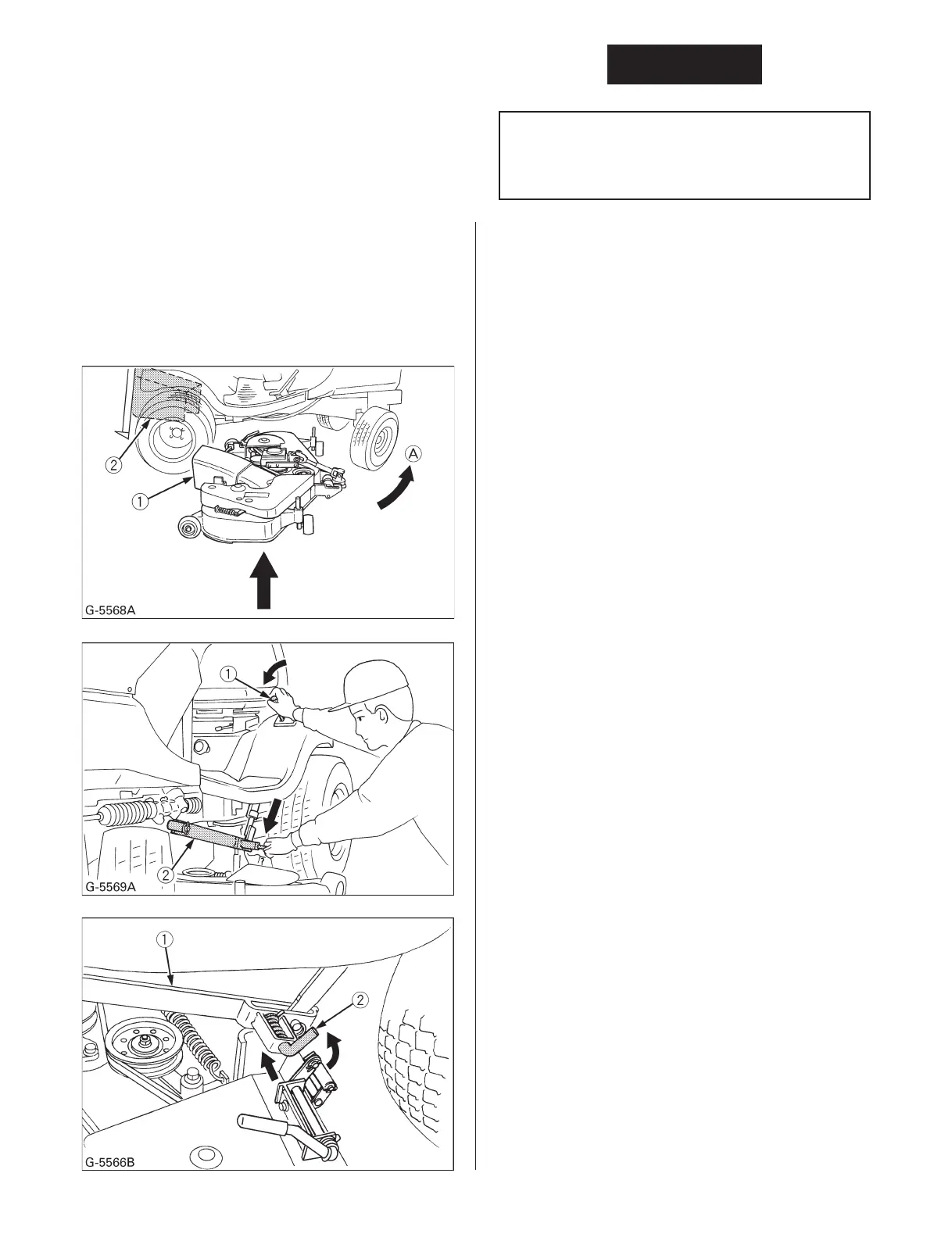

MOWER MOUNTING
6. Release the L pins lock to attach the rear links to
the mower deck.
(1) Mower’s rear link
(2) L pin
쏋 Mounting the mower deck
1. Park the machine on level ground and place the
mower deck at the right side of the machine.
2. Set the front anti-scalp rollers sideways and at
the topmost position.
Turn the front wheel to the left. Pull the hydraulic
lift lever to raise rear links.
3. Slide the mower deck under the machine, and
make sure that the mower duct is setting properly
inside of the container discharge duct, then return
wheels to straight ahead position.
4. Reset the front anti-scalp rollers to straight ahead
position (Refer to ADJUSTING CUTTING HEIGHT
section to set the anti-scalp rollers height.)
(1) Mower duct (A) “LEFT”
(2) Container discharge duct
NOTE:
¡ Make sure that the mower duct is setting properly
inside of the container discharge duct.
5. Place the hydraulic lift lever in the “DOWN”
position. Push down the rear links to align with
the mower bracket.
(1) Hydraulic lift lever
(2) Mower’s rear link
To Next Page
