INSTRUMENT PANEL
AND CONTROLS

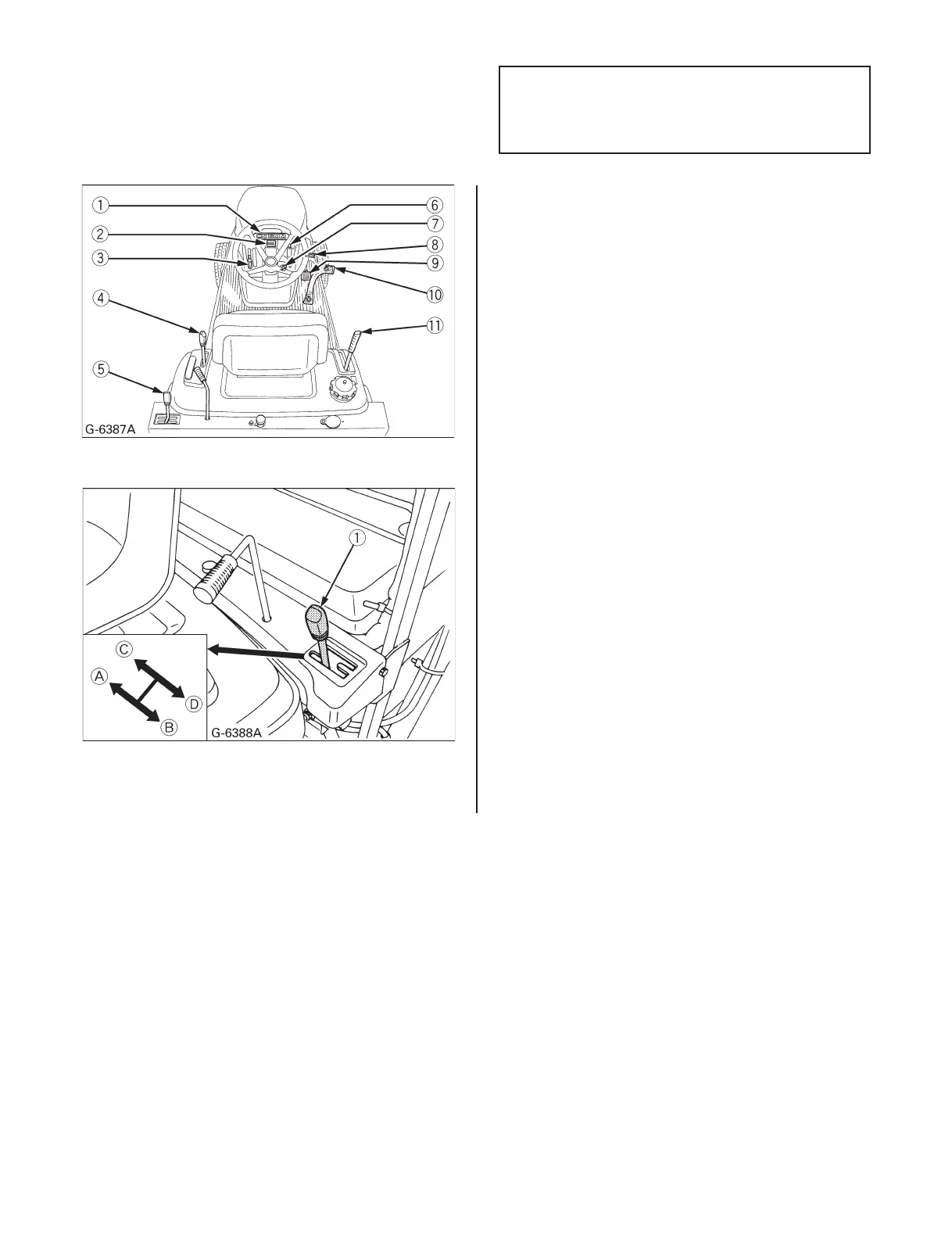

(1) Easy checker
TM
(2) Hour meter
(3) Throttle lever
(4) Hydraulic lift lever
(5) Grass container control lever
(6) Light switch
(7) Key switch
(8) Parking brake pedal
(9) Brake pedal
(10) Speed control pedal
(11) PTO lever
쏋 Grass Container Control Lever
The grass container control lever is used to move up
and down as well as empty the grass container.
Before using this lever, pull the PTO lever to the
“DISENGAGED” position to stop the cutting blades.
Move the grass container control lever to the front
right (A) to lift the container. Move it to the front left
(B) to lower it.
With the container raised, move the control lever to
the back right (C) and the container will tilt backward
to discharge grass. Move it to the back left (D) and the
container will back in the original position.
(1) Grass container control lever
(A) “UP”
(B) “DOWN”
(C) “TILT BACKWARD”
(D) “TILT FORWARD”
