CNC:
Index Service Part # File Name
Description
Qty
1 A00-0013 TEKT-0009 5MM Bushing 12
2 A00-0014 THICK-BUSHING 8MM Bushing 5
3 A00-0020 STEP-BOLT1-4X1-1-4 Step Bolt, 1/4" x 1 1/4", MB 6
4 A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD 6
5 A00-0033 315-080 Rear Wiper Shaft Grommet 1
6 A00-0043 WWF-MOTOR WWF Wiper Motor, 1" Shaft 1
7 A00-0126 TEKT-ASM-036 20" Panto Arm, WWF Motor 1
8 A00-0127 BLADE_16 Wiper Blade, 16" 1
9 A00-0128 TEKT-ASM-035 WWF Motor, Panto Adapter Mount 1
10 K03-0003 KUGF1800-022 Windshield Glass 1
11 K03-0004 KUGF1800-042 Windshield Seal 1

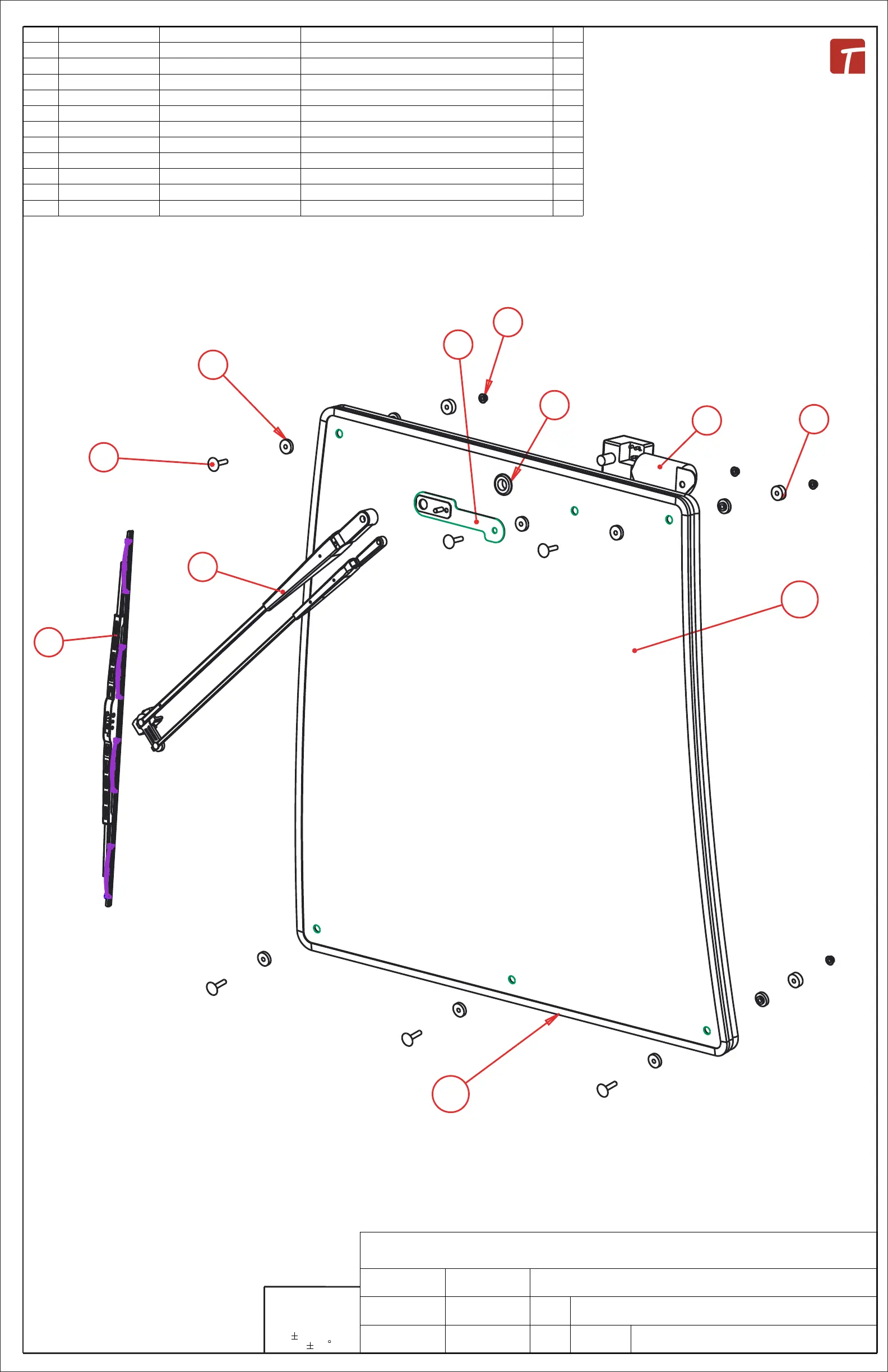

Windshield Assembly
Daryl Furkalo
2017-07-19 Imp.
KUGF1800-ASM-009_OP
B
SCALE 0.200
1
4
5
11
7
9
8
3
10
6
2
