OPERATING THE GENERATOR
ENGLISH
OPERATING THE GENERATOR
OPERATING PROCEDURE TO SUPPLY THE
ELECTRIC POWER
1.Start the engine according to the
"OPERATING THE ENGINE"
2. Warm the engine with section load.
3. Turn ON the circuit breaker.
IMPORTANT:
¡ When there is a severe overload or single phase
short circuit in the wiring of the three phase
generator, the circuit breaker turns OFF. If this
happens, eliminate the cause and turn the circuit
breaker ON again.
¡ When there is three phase short circuit in the
wiring of the three phase generator, after the
excitation current rises to ceiling level during 10
seconds the electronic protection circuit of the
A.V.R. decreases the excitation current to about 1A
then the generator voltage becomes very low.
(The circuit breaker dose not trip in this case). If
this happens, turn the circuit breaker OFF and
eliminate the cause, then turn the circuit breaker
ON again.
¡ When there is a severe overload or short circuit in
the wiring of the single phase generator, the
thermal relay turns the circuit breaker to OFF. If
this happens, eliminate the cause and turn the
circuit breaker ON again.
NOTE:
¡ The thermal relay dose not work if the battery
voltage falls below the prescribed level. Be aware
of good battery care.
쎱 Voltage
Check the voltage on the meters.
¡ Voltage regulation can be achieved by turning the
voltage adjuster in clockwise or counterclockwise
direction.
¡ Set voltage to the same as devices being used.

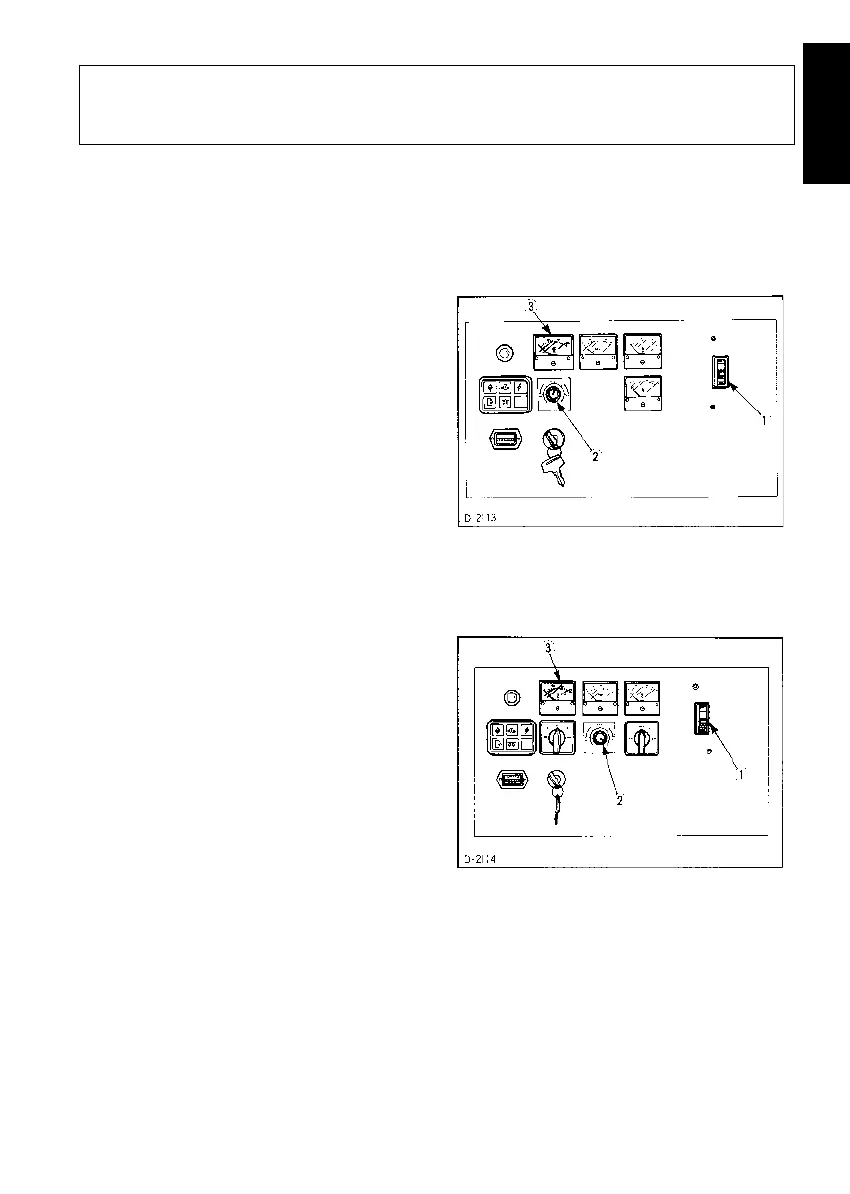

[KJ-S130VX, KJ-S240, KJ-S150VX]
(1) Circuit breaker
(2) Voltage adjuster (Potentiometer)
(3) AC Volt meter
[KJ-T130DX, KJ-T180VX, KJ-T300, KJ-T160DX,
KJ-T210VX]
(1) Circuit breaker
(2) Voltage adjuster (Potentiometer)
(3) AC Volt meter
4. Turn ON the electrical device switches for
the connections.
5. Adjust the voltage and frequency.
쎱 Frequency
Check the frequency on the meters.
50 to 54Hz z50Hz typex
60 to 65Hz z60Hz typex
