1. Adjusting the Operator’s Seat
n Operator's Seat
3
CAUTION
To avoid personal injury:
lMake sure that the seat is
completely secured after each
adjustment.
lDo not allow any person other
than the driver to ride on the
excavator.

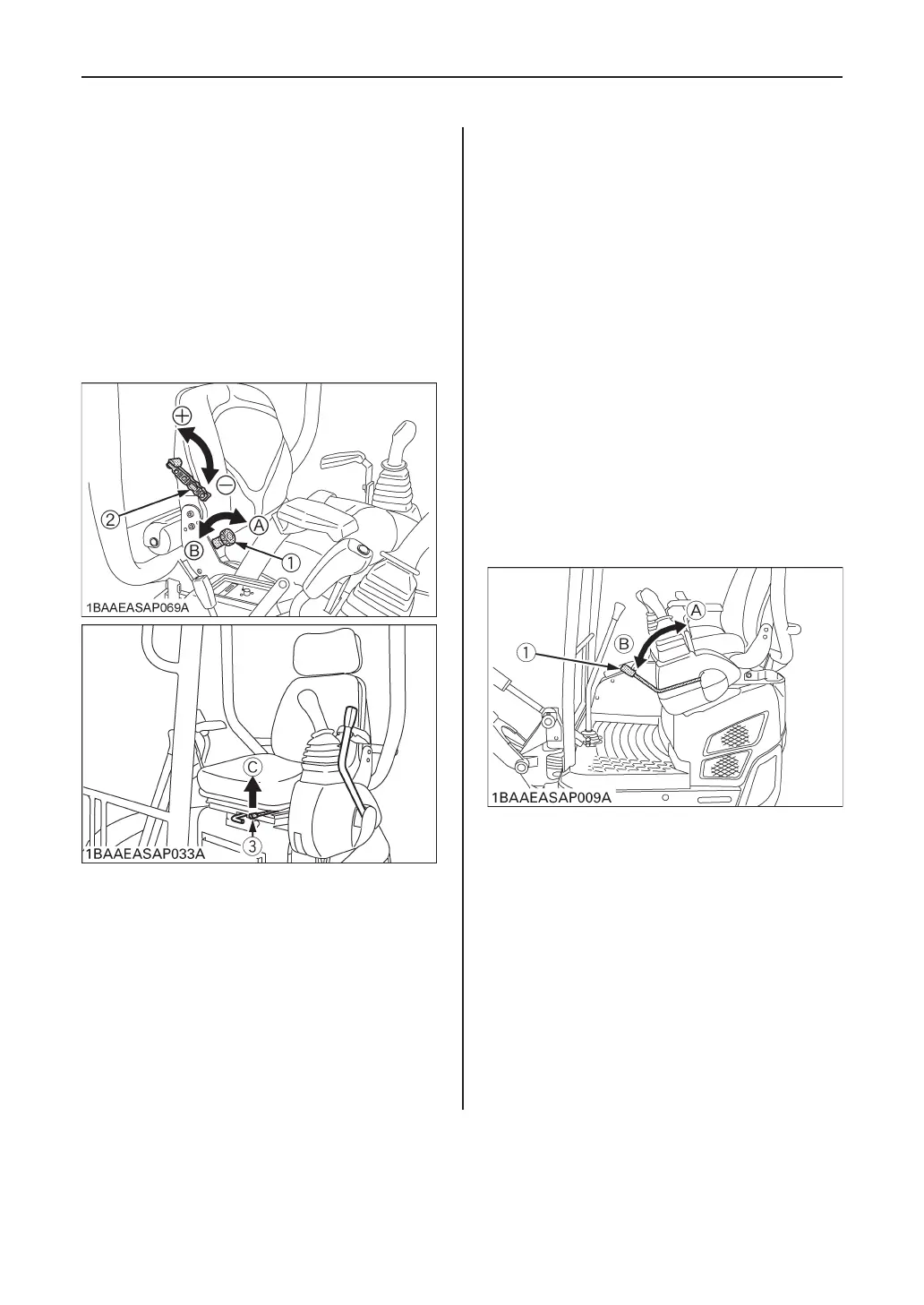

(1) Knob for tilt (A) "FORWARD"
(2) Suspension adjustment (B) "BACK"
lever (C) "UNLOCK"
(3) Travel adjust lever
u Backrest angle adjust knob : (1)
Pull up and unlock the backrest angle
adjust knob (1). Reposition the backrest in
Direction (A) or (B) to an optimum angle.
u Driver's weight adjustment : (2)
Sit down on the operator's seat.
Move up the lever (2) toward (+) from the
center (free state), and the spring force
gets stronger. Move it down toward (-),
and the spring force gets weaker.
u Travel adjustment (Horizontal) : (3)
Pull up and unlock the travel adjust lever
(horizontal) (3) in Direction (C). Slide
the seat back and forth to an optimum
position.
Make sure the seat has got locked in the
desired position.
2. Bring the lock lever into the
"Unlock" position.
3
CAUTION
To avoid personal injury:
lCheck safety features all
around the excavator.
(1) Pilot control lock lever (A) “Lock”
(B) “Unlock”
