Combination Braking System (CBS)
Combination Braking System , the rider's action
of depressing the rear brake lever applies both
front and rear brakes, The amount of each
brake applied is determined by CBS pump.
Depressing the front brake lever only applies
the front brake.
① Rear brake lever
② the master cylinder
③ the brake tubing
④ the brake caliper
⑤ the brake disc
\
⑥ CBS Pump
Front brake
Rear brake
1
2
3
3
6
4
4
5
5

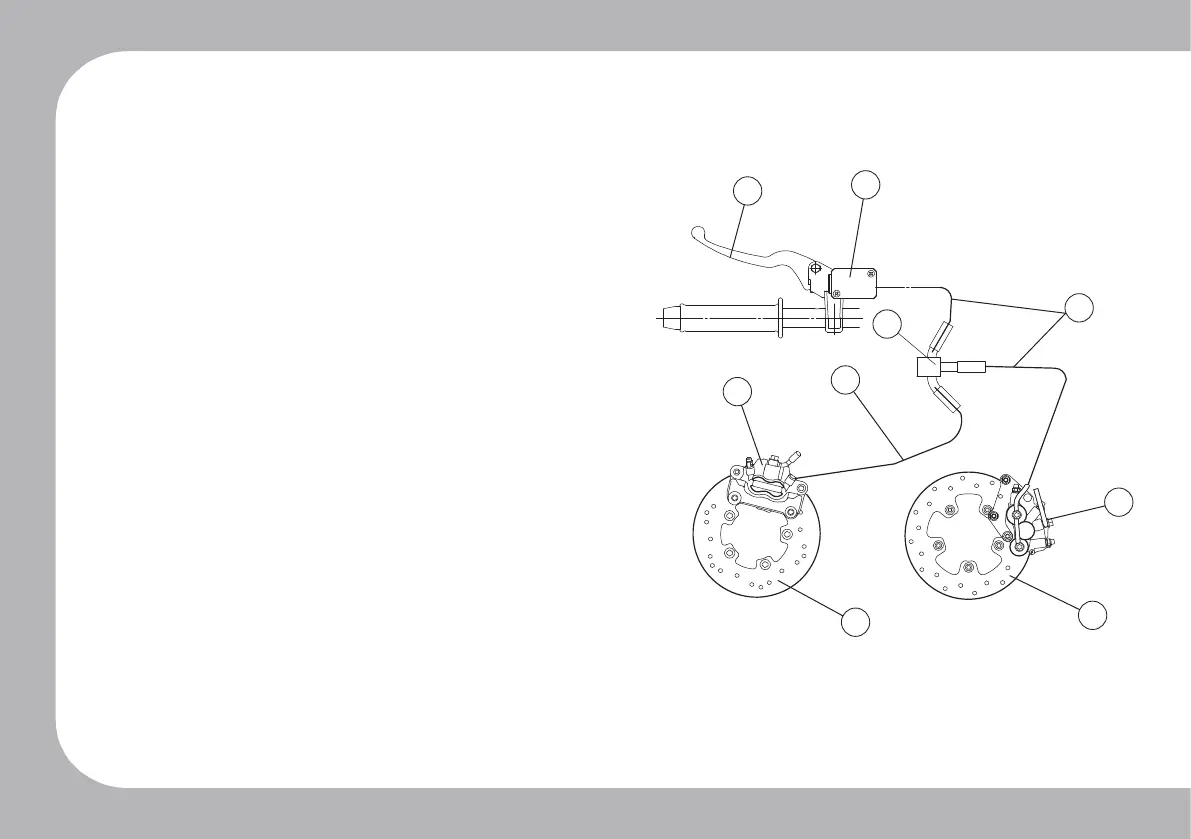

CBS Diagraph
