KYMCO AGILITY300 User Manual

CONTROLS & FEATURES

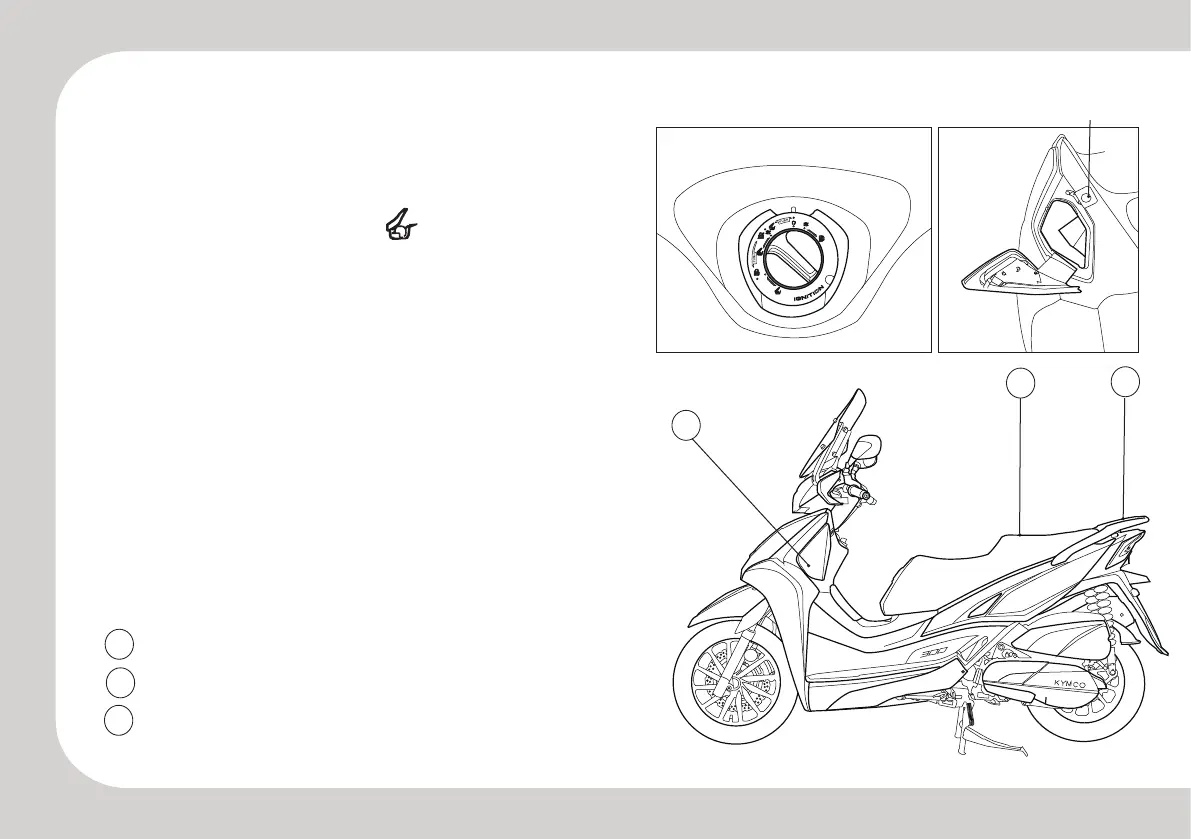

Seat
Open Luggage Box
Unlock KEYLESS and turn
counter- clockwise to “ ” position to open
the Luggage Box.
Front Inner Box
Open the Front Inner Box.
Press down the Front Inner Box
and pull the cover downward to open it.
Close up the Front Inner Box
Pushing the cover back to its original position
will close it up.
Main Switch
push button
Maximum cargo weight:
REAR LUGGAGE BOX............. .10KG...
REAR CARRIER ..........................5KG
4
5
6
1
2
1
2
FRONT INNER .......... ....1.5KG BOX ......
3
3
OPEN
28
Button

KYMCO AGILITY300 Specifications

Capacities

engine oil capacity (exchange)	0.9 L
transmission oil capacity (exchange)	0.18 L
fuel tank capacity	13 L
maximum weight capacity	341 kg

Engine Specifications

engine type	Four-stroke, air-cooled OHC
engine displacement	276 cc
bore and stroke	72.7 X 66.4 mm
compression ratio	10.6:1
max horsepower	16.8 KW/7500 rpm
max torque	23.5 Nm/6500 rpm
spark plug	DPR6EA-9
idle speed	1700±100 RPM
cooling system	Cooling water
starting system	Electric starter motor

Chassis

tire size, front	110/70–16
tire size, rear	140/70–14
brake, front	DISK(ABS)
brake, rear	DISK(ABS)

Electrical

ignition type	ECU
battery	12v 10Ah
headlight	12v/8w/6w
tail light	12v 4w
brake light	12v 6w
turn signal light	12v 10w 2
license plate light	12V 5w
position light	12v 5w(F)12v 1w(B)
fuses	30A 1, 25A 1, 15A 2, 10A*2

Weight and Dimensions

overall length	2200 mm
overall width	765 mm
overall height	1560 mm
wheel base	1550 mm
seat height	800 mm
curb weight	191 kg
