9.DRIVE AND DRIVEN PULLEYS
9-10
CLUTCH/DRIVEN PULLEY
DISASSEMBLY

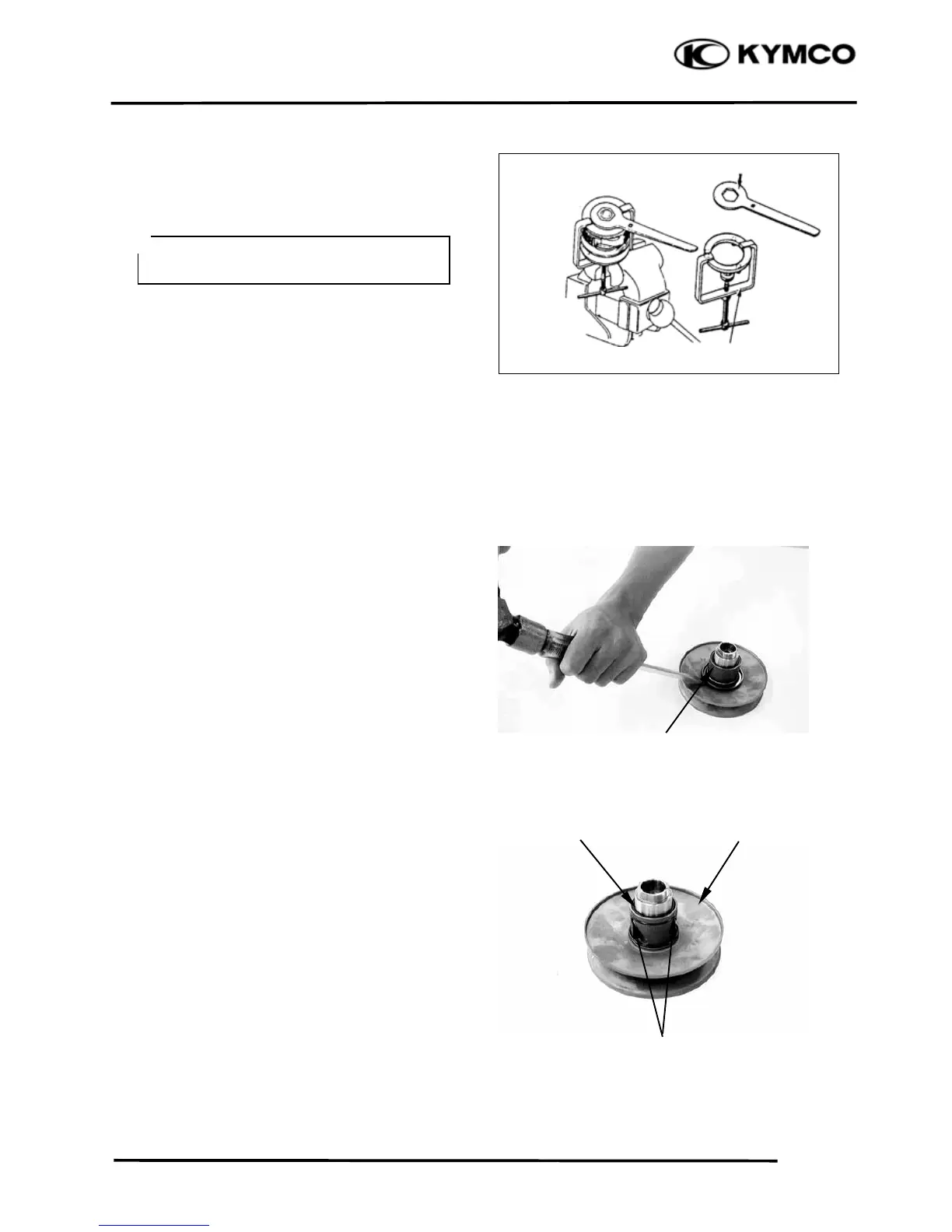

Hold the clutch/driven pulley assembly with
the clutch spring compressor.
Clutch Spring Compressor A120E00034
Set the clutch spring compressor in a vise and
remove the clutch drive plate nut.
Loosen the clutch spring compressor and
disassemble the clutch/driven pulley assembly.
Remove the seal collar.
Pull out the three guide roller pins and guide
rollers. Remove the movable driven face from
the driven face.
Clutch S
p
rin
g
Com
p
resso
r
Lock Nut Wrench, 39m
m
Movable Driven Face
Guide Roller Pins
Dust Seal
Be sure to use a clutch spring
compressor to avoid spring damage.
＊
Seal Colla
r
