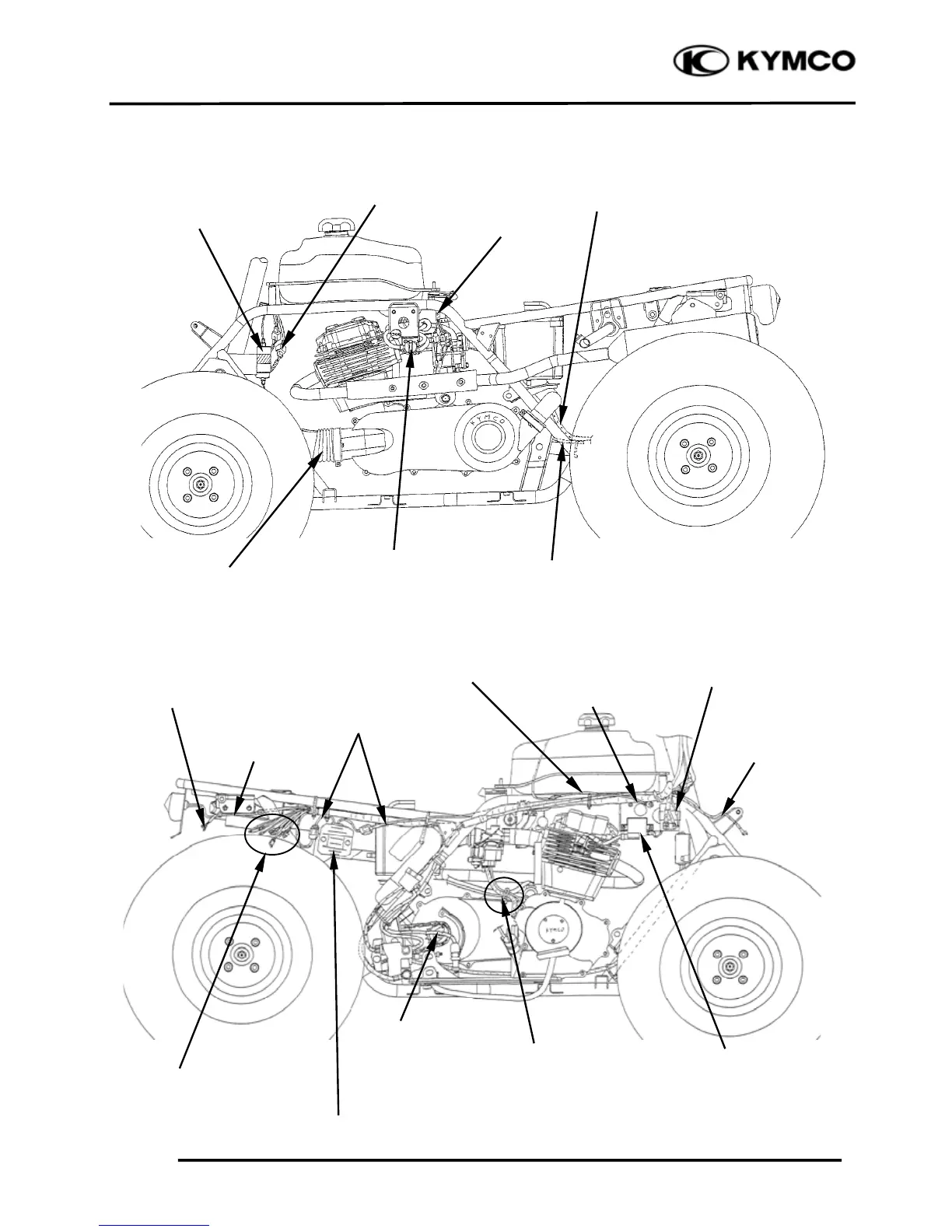

CABLE & HARNESS ROUTING (MXU 150)
Hazard Unit
Hazard Unit Connecto
r
Inlet Hose
Fuel Valve
Harness Wire
Rear Brake Hose
RPM Sensor Wire
Rear Right Turn Signal
Light Connectors
(ON ROAD)
Taillight Wire
Change Gear Control
Unit Connectors
Rectifier/Regulato
r
Rectifier/Regulato
r
Wires
A.C. Generator Wire
Change Gear Switch Wire
Starter Motor Cable
Engine Ground Cable
Rear Brake Light
Switch Wire
Fuel Unit Wire
Frame Ground Wire
Ignition Coil
Headlight
Control Unit
Front Right Turn
Signal Light Wire
(ON ROAD)
