4.9. BRAKE
4.9.1. Front Brake Lever
The front brake lever is next to the right handgrip.
The front brakes are operated by squeezing the front brake
lever.
4.9.2. Rear Brake Lever
The rear brake is operated by squeezing the rear brake lever,
near left handgrip.

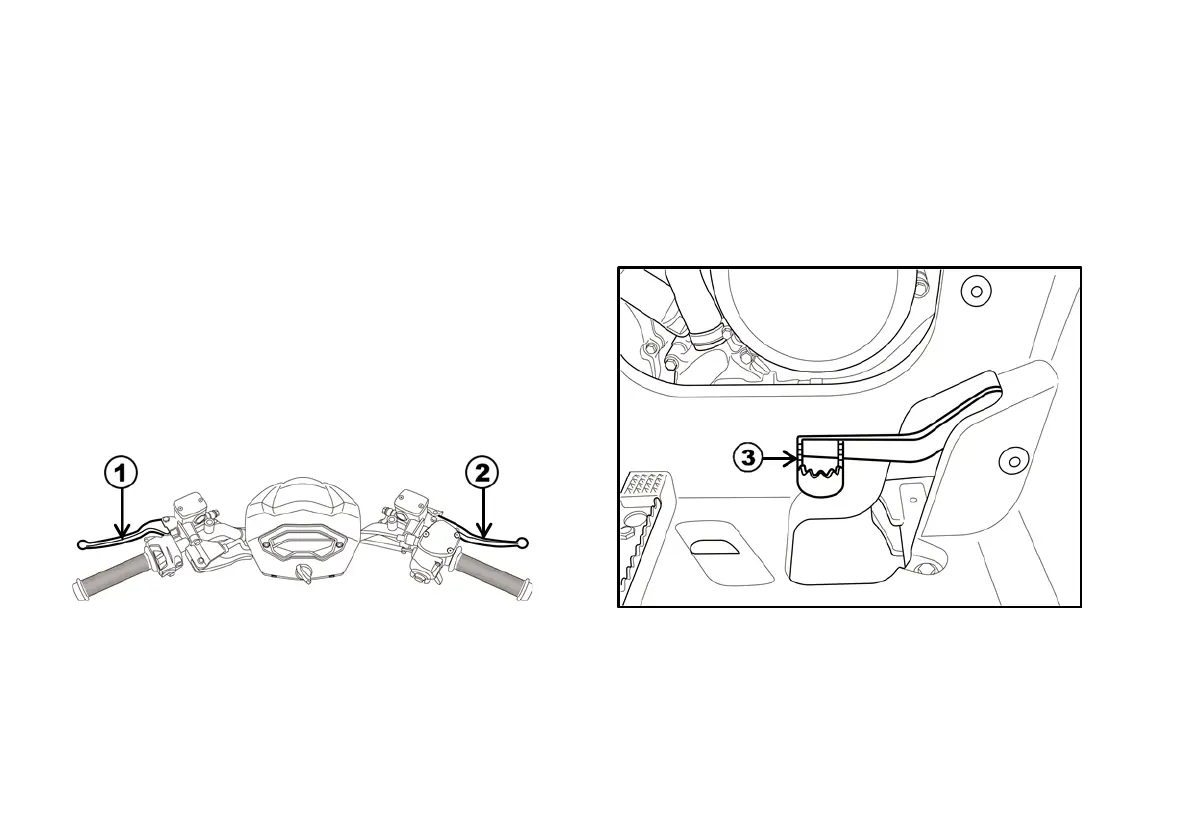

(1) Rear brake lever
(2) Front brake lever
4.9.3. BRAKE PEDAL
This ATV is equipped with a combined brake system. Operating
the brake pedal applies the rear brake and the front
(3) Brake pedal
