P.29/51

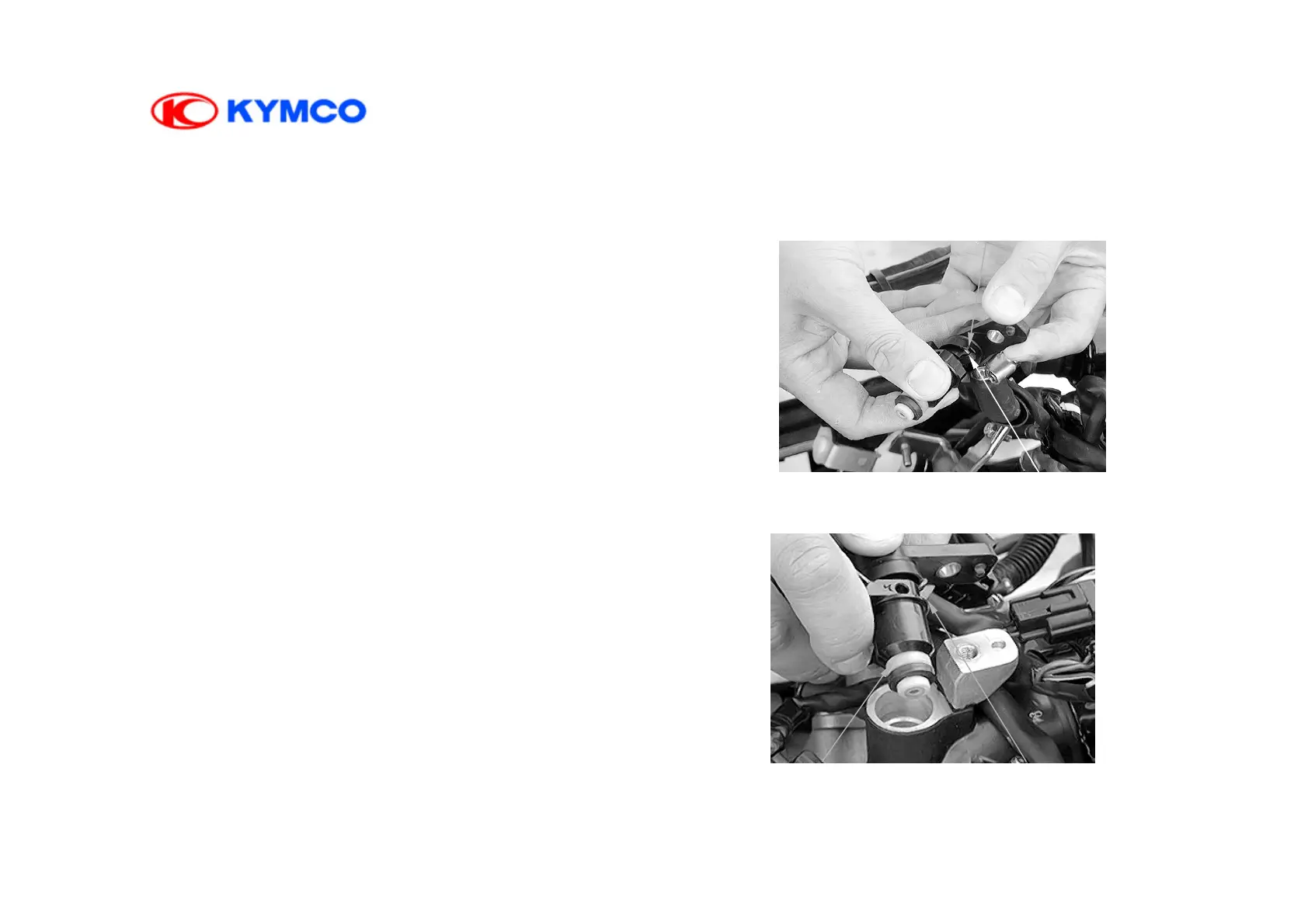

INSTALLATION
1. Apply the engine oil to a new O-ring.
2. Install the fuel injector into the fuel pipe.
3. Ensure the tab of the fuel injector inserted into the
groove of the fuel pipe.
4. Install the fuel pipe into the intake manifold by
aligning the dowel pin.
5. Be careful not to damage the O-ring.
6. Tighten the fuel pipe mounting bolt.
Dowel pinO-ring
Tab
Groove
FUEL INJECTOR REMOVAL / INSTALLATION
