Kyocera FS-C2026MFP Service Manual

2KW/2KX
2-2-4
(2) Switches and sensors

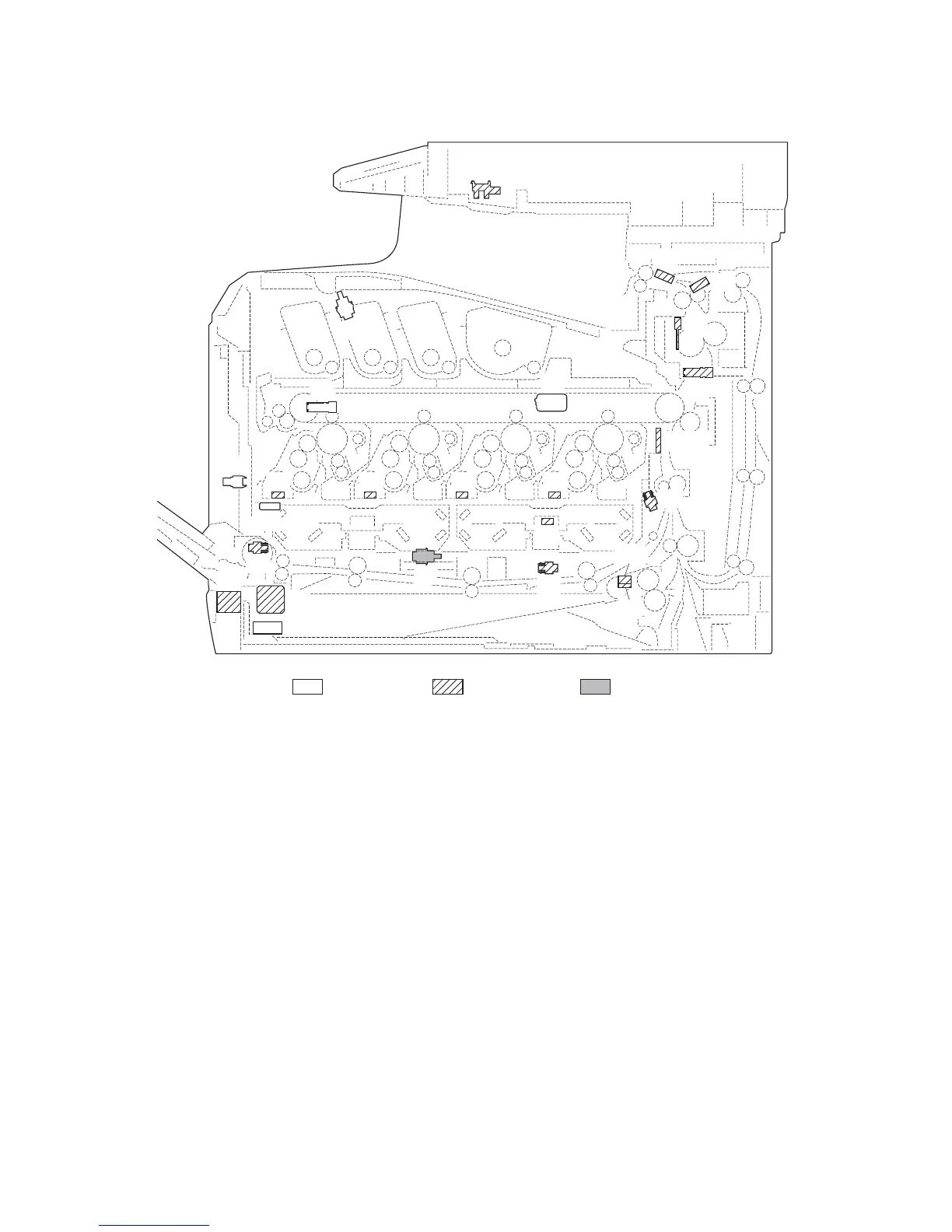

Figure 2-2-2 Switches and sensors
1. Main power switch (MSW) .................... Turns ON/OFF the AC power source.
2. Interlock switch (ILSW) ......................... Shuts off 24 V DC power line when the top tray and rear cover are
opened.
3. Cassette size switch (CSSW) ............... Detects the paper size dial setting of the paper setting dial.
4. Paper sensor (PS) ................................ Detects the presence of paper in the cassette.
5. Lift sensor (LS)...................................... Detects activation of upper limit of the bottom plate.
6. Registration sensor (RS)....................... Controls the secondary paper feed start timing.
7. MP paper sensor (MPPS) ..................... Detects the presence of paper on the MP tray.
8. MP feed sensor (MPFS) ....................... Detects a paper misfeed in the MP conveying section.
9. Eject sensor (ES) .................................. Detects a paper misfeed in the fuser or eject section.
10. Paper full sensor (PFS)......................... Detects the paper full in the top tray.
11. Toner sensor K (TS-K) .......................... Detects the toner density in the developing unit K.
12. Toner sensor K (TS-M).......................... Detects the toner density in the developing unit M.
13. Toner sensor K (TS-C) .......................... Detects the toner density in the developing unit C.
14. Toner sensor K (TS-Y) .......................... Detects the toner density in the developing unit Y.
15. ID sensor 1 (IDS1) ................................ Measures image density for color calibration.
16. ID sensor 2 (IDS2) ................................ Measures image density for color calibration.
4
5
1
24
17
18
14 13 12 11
6
15,16
19
10
9
23
2
26
21
20
22
25
8
3
7
Machine insideMachine right Machine left

Kyocera FS-C2026MFP Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	9600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	26 ppm
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
Total output capacity	- sheets
Maximum input capacity	50 sheets
Internal memory	768 MB
Processor family	PowerPC
Card reader integrated	No
Sound power level (standby)	30 dB
Sound pressure level (printing)	50 dB
Dimensions (WxDxH)	514 x 550 x 580 mm
Power requirements	AC 220 - 240 V, 50/60 Hz
Networking features	Fast Ethernet
All-in-one functions	Copy, Scan
Maximum internal memory	1.75 GB
Color all-in-one functions	copy, print
Compatible operating systems	Windows, Mac OS X 10.2 +, Unix, Linux
Maximum print size	216 x 356 mm
Paper tray media types	Envelopes, Plain paper
Non-ISO print media sizes	Folio
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Power consumption (standby)	79 W
Power consumption (average operating)	466 W
Certification	TÜV/GS, CE
Maximum duty cycle	65000 pages per month
Grayscale levels	256
Image formats supported	JPG, TIF
Sustainability certificates	ENERGY STAR
Market positioning	Business
