Kyocera FS-C2026MFP Service Manual

2KW/2KX
2-2-6
(3) Motors

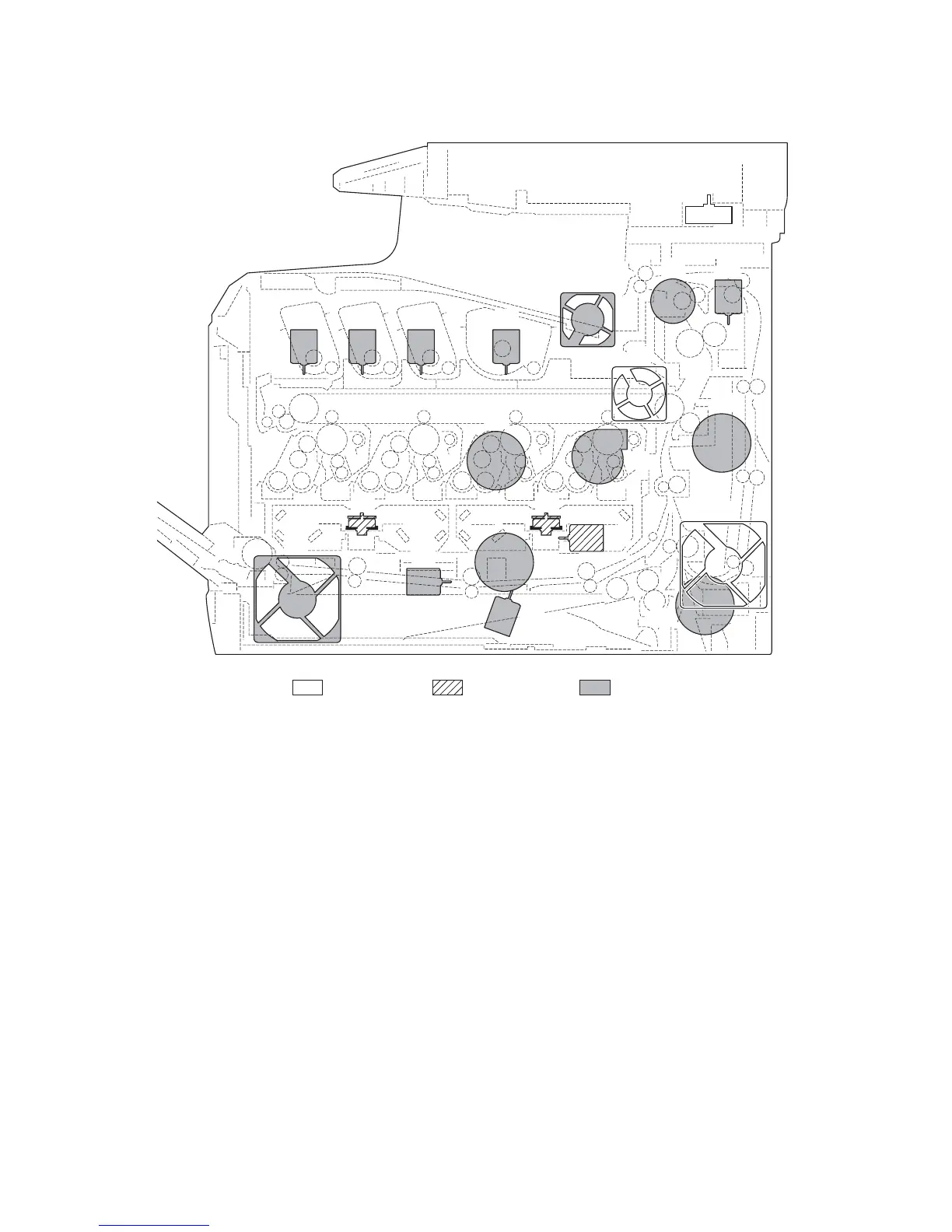

Figure 2-2-3 Motors
1. Paper feed motor (PFM) ....................... Drives the paper feed section.
2. Lift motor (LM)....................................... Operates the bottom plate.
3. Drum motor (DRM) ............................... Drives the drum unit.
4. Developing motor (DEVM) .................... Drives the developing unit.
5. Fuser motor (FUM) ............................... Drives the transfer section and the fuser section.
6. Duplex motor (DUM) ............................. Drives the duplex section.
7. Toner motor K (TM-K) ........................... Replenishes toner to the developing unit K
8. Toner motor M (TM-M) .......................... Replenishes toner to the developing unit M
9. Toner motor C (TM-C)........................... Replenishes toner to the developing unit C
10. Toner motor Y (TM-Y) ........................... Replenishes toner to the developing unit Y
11. Polygon motor KM (PM-KM) ................. Drives the polygon mirror KM.
12. Polygon motor CY (PM-CY).................. Drives the polygon mirror CY.
13. Developing release motor (DEVRM)..... Drives separation of developing units M, C and Y.
14. LSU cleaning motor (LSUCM) .............. Drives LSU dust shield glass cleaning system.
15. Fuser pressure release motor
(FPRM) ................................................. Drives fuser pressure release.
16. Left fan motor (LFM) ............................. Cools the interior of machine.
17. Right fan motor (RFM) .......................... Cools the interior of machine.
16
12 11
13
14
17
5
20
3
18
19
6
15
21
78910
4
1
2
Machine insideMachine right Machine left

Kyocera FS-C2026MFP Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	9600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	26 ppm
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
Total output capacity	- sheets
Maximum input capacity	50 sheets
Internal memory	768 MB
Processor family	PowerPC
Card reader integrated	No
Sound power level (standby)	30 dB
Sound pressure level (printing)	50 dB
Dimensions (WxDxH)	514 x 550 x 580 mm
Power requirements	AC 220 - 240 V, 50/60 Hz
Networking features	Fast Ethernet
All-in-one functions	Copy, Scan
Maximum internal memory	1.75 GB
Color all-in-one functions	copy, print
Compatible operating systems	Windows, Mac OS X 10.2 +, Unix, Linux
Maximum print size	216 x 356 mm
Paper tray media types	Envelopes, Plain paper
Non-ISO print media sizes	Folio
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Power consumption (standby)	79 W
Power consumption (average operating)	466 W
Certification	TÜV/GS, CE
Maximum duty cycle	65000 pages per month
Grayscale levels	256
Image formats supported	JPG, TIF
Sustainability certificates	ENERGY STAR
Market positioning	Business
