2HL/2HM/2HN
2-2-1
2-2 Electrical Parts Layout
2-2-1 Electrical parts layout
(1) PWBs

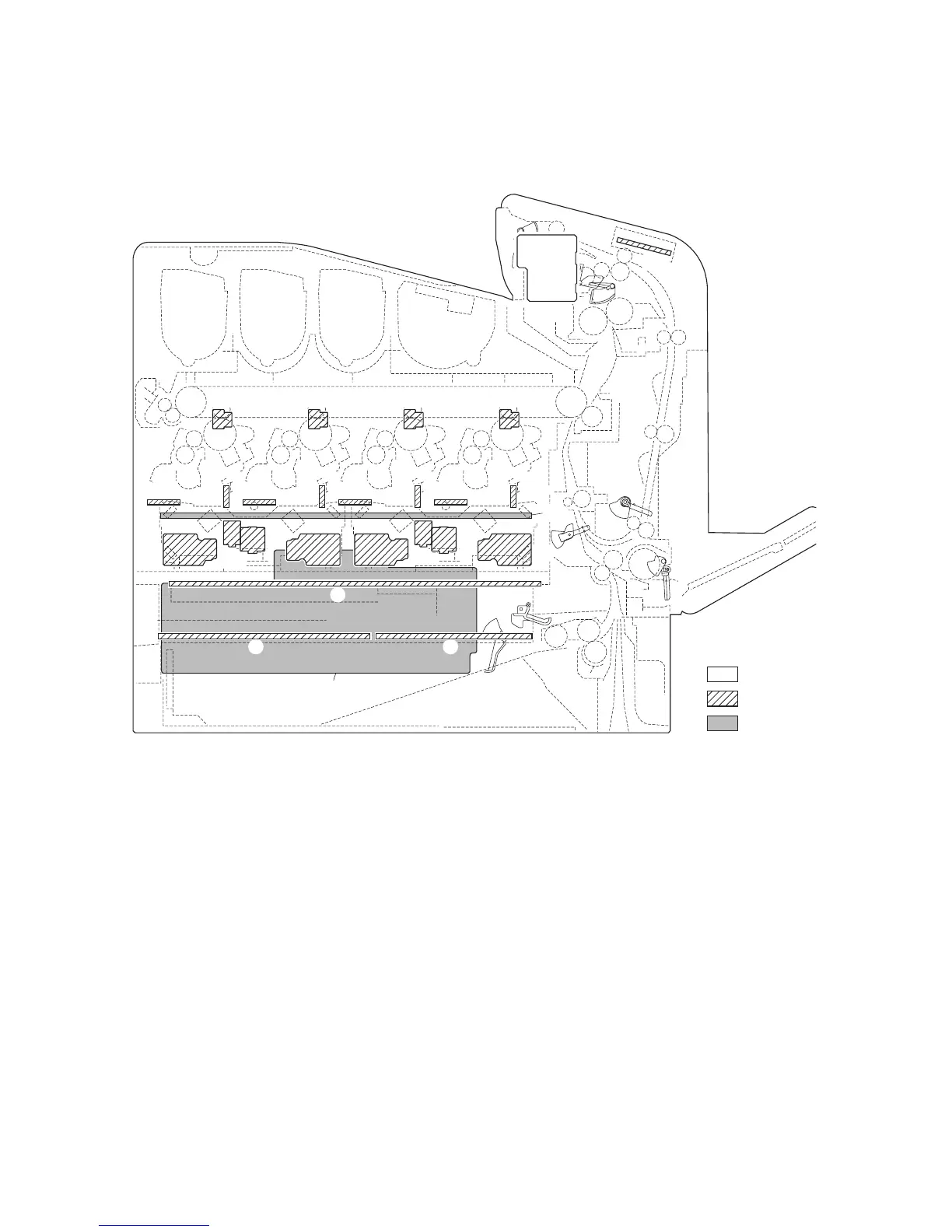

Figure 2-2-1 PWBs
1. Main PWB .................................................... Controls the software such as the print data processing and provides the
interface with computers.
2. Engine PWB................................................. Controls printer hardware such as high voltage/bias output control, paper
conveying system control, and fuser temperature control, etc.
3. Power source PWB...................................... After full-wave rectification of AC power source input, switching for
converting to 24 V DC for output. Controls the fuser heater lamp.
4. High voltage PWB........................................ Generates main charging, developing bias, transfer bias and cleaning
bias.
5. Operation panel PWB .................................. Consists the LED indicators and key switches.
6. Paper exit PWB............................................ Interconnects the engine PWB and the electrical parts (paper exit sec-
tion).
7. Drum relay PWB .......................................... Interconnects the engine PWB and the drum units/developing units.
8. APC PWB M ................................................ Generates and controls the laser beam. (magenta)
9. APC PWB C................................................. Generates and controls the laser beam. (cyan)
10. APC PWB Y ................................................. Generates and controls the laser beam. (yellow)
11. APC PWB K ................................................. Generates and controls the laser beam. (black)
12. PD PWB M................................................... Controls horizontal synchronizing timing of laser beam. (magenta)
13. PD PWB C ................................................... Controls horizontal synchronizing timing of laser beam. (cyan)
14. PD PWB Y ................................................... Controls horizontal synchronizing timing of laser beam. (yellow)
15. PD PWB K ................................................... Controls horizontal synchronizing timing of laser beam. (black)
Machine inside
Machine left
Machine right
24
20 21 22 23
16 17 18 19
25 26 27
12
13
14
15
8 11
910
5
6
7
3
1 2
4
To Next Page
