Chapter 6: Modifying Your Washer
Product Service 1-800-522-7658 43
When the Upper Spindle Rack is in place, it limits the height of the glassware that
can be washed. If very tall glassware or long pipets are to be washed, remove the
Upper Spindle Rack.
Removing the Optional Upper Rack
The upper rack may be easily removed from the Glassware Washer to facilitiate
loading the rack outside the washer or to allow very tall glassware to be loaded
and washed on the lower rack.
To remove the upper rack:
1. Slide the upper rack all the way out of the washer.

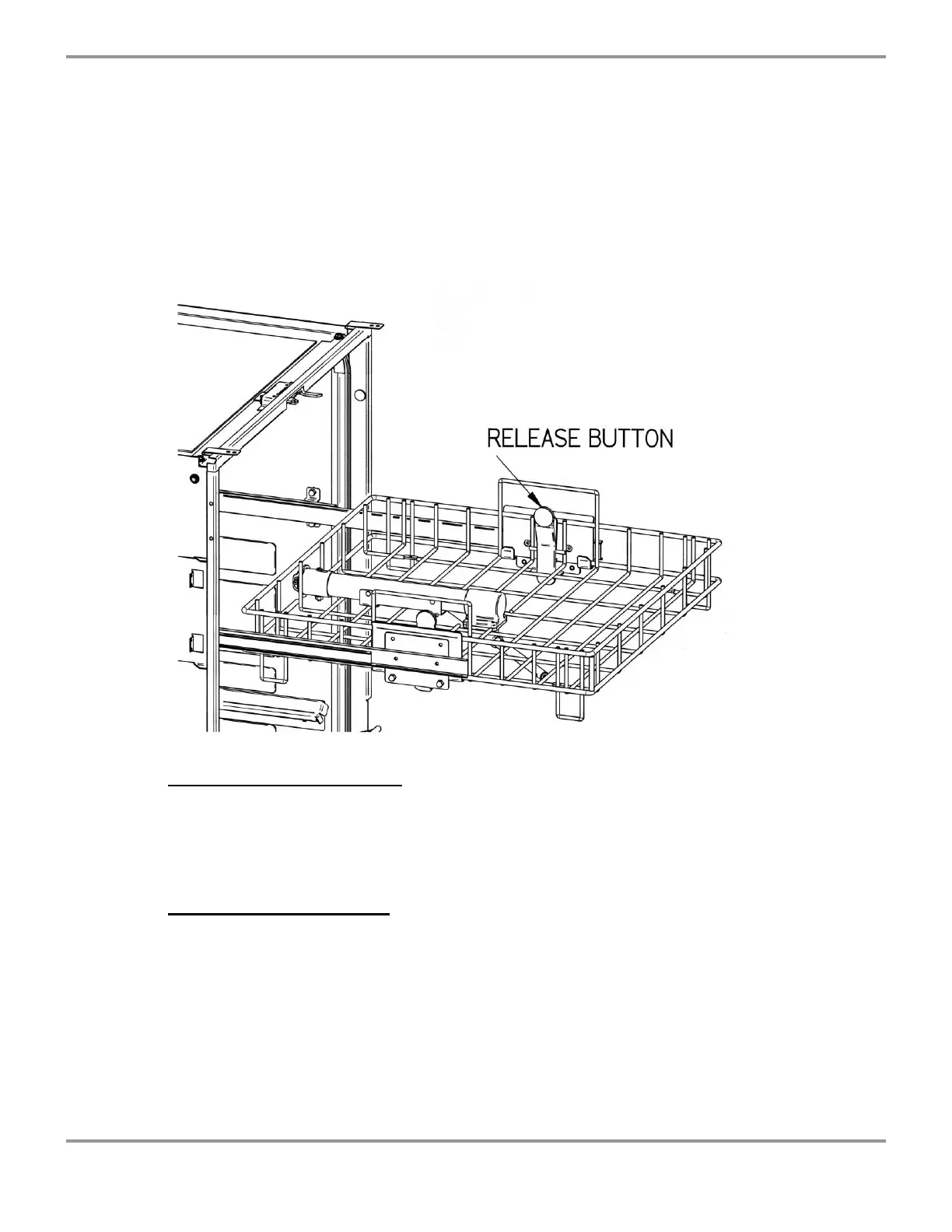

2. Grasp each side of the rack placing a thumb on the release buttons.
3. Press each release button and lift the rack straight upward.
To install the upper rack:
1. The upper rack can be replaced into the washer by first sliding each slide rail
all the way out of the washer and then lowering the rack onto the rails.
2. Press down and the latch will automatically engage the rail.
