LAUNCH X-431 GDS Batterybox Manual
11

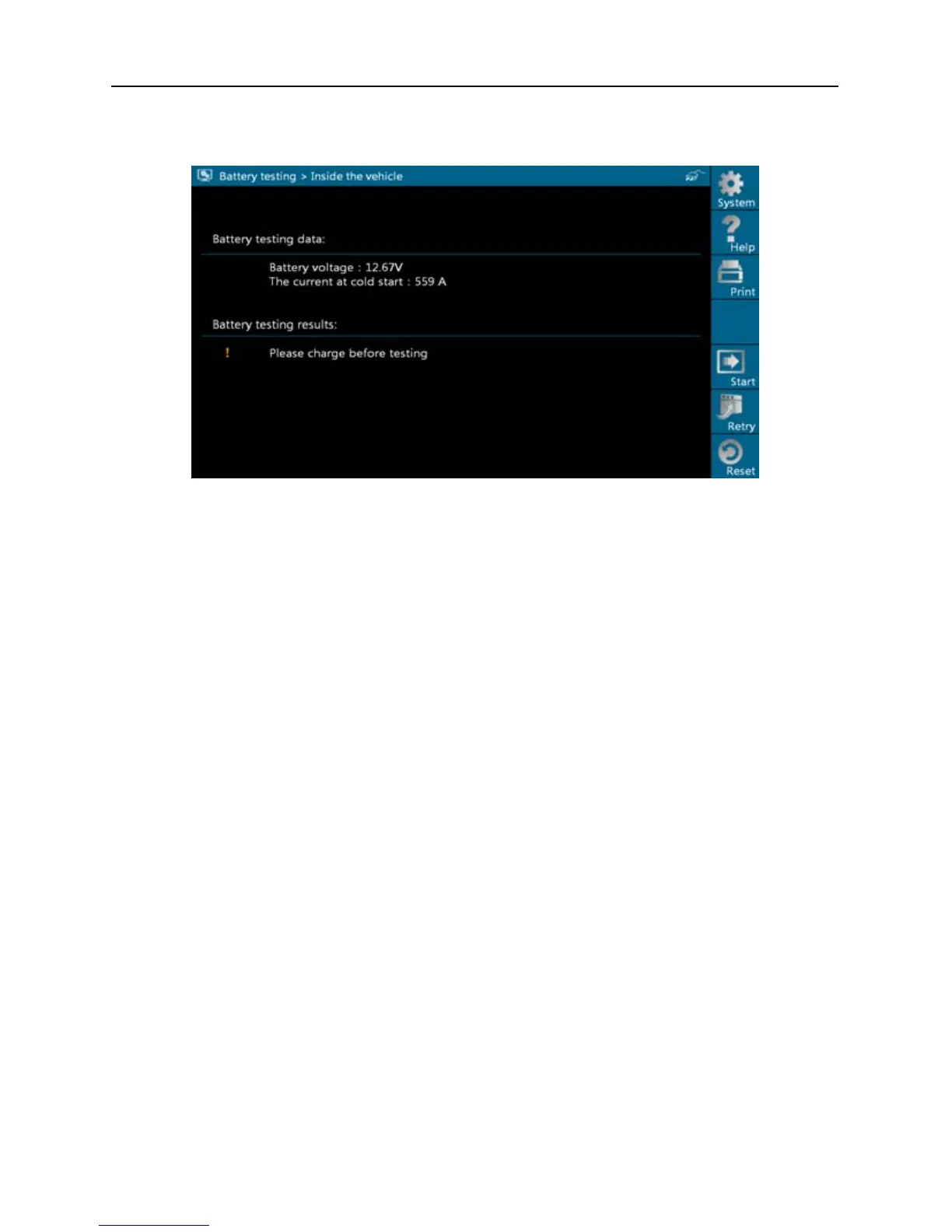

7. Click [Next] and the testing result will appear on the following screen.
Fig. 3-8
3.2.2 Charging system and starting system test
While performing this test, the battery’s charging voltage value and starting
voltage can be obtained in case of engine starting and accelerating. Based on
the data, the system will judge whether battery’s charging and actuation status
is normal or not.
1. The interface will display as Fig. 3-9 after the engine starts.

Launch X-431 GDS Specifications

General

Brand	Launch
Model	X-431 GDS
Category	Battery Pack
Language	English
