554515_A_PUB_DATE_1_FEB_2014.DOC INSTALLATION AND MAINTENANCE MANUAL 65

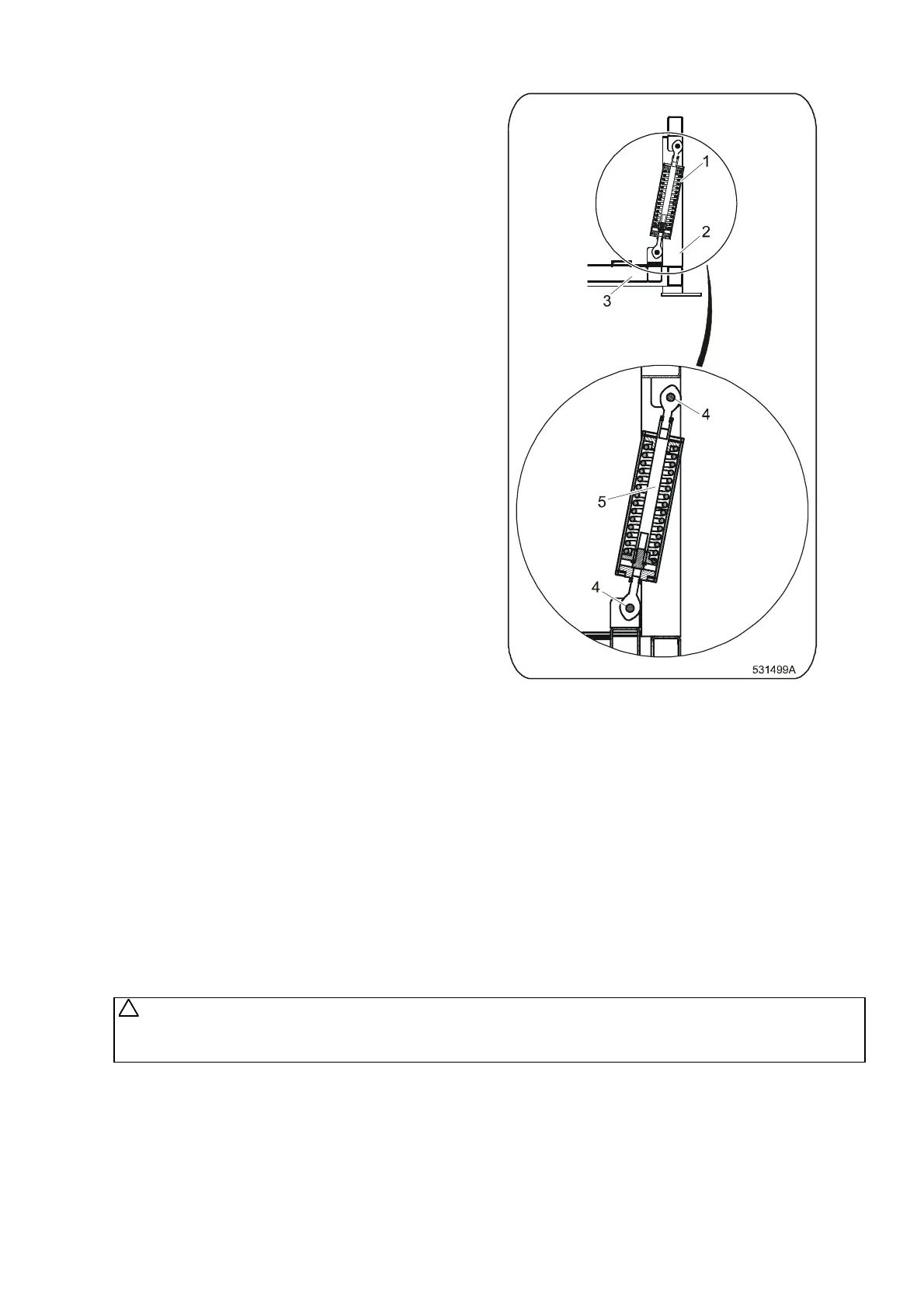

MACHINES 80-100-120 kg / 180-230-275 lb
Adjusted by manufacturer.
1. Spring unit
2. Machine frame
3. Suspended part
4. Spring suspension eyes
5. Guiding rods
Figure 5.12.B. – Machines 80-100-120 kg / 180-230-275 lb
5.13. REPLACEMENT WASHER FUSES
FUSE VALUES
The correct values of fuses can be found in the vicinity of the fuse holders and on the electrical scheme
and delivered with the machine. When a fuse is blown, you can replace it with the same value but in NO case
a higher value. If the fuse blows again, do not change it, but find the cause of the failure.
Contact your commercial distributor for help if necessary.
5.14. EARTH LEAKAGE TRIPS
If the laundry is equipped with the earth leakage trip in the inlet circuit of the electric switchboard it is necessary
to test it regularly. The earth leakage trip is a very sensitive device and it provides a safety for operators
avoiding a risk of an electric shock while the machine is in operation.
WARNING!
A QUALIFIED WORKER MUST PERFORM A TEST OF THE EARTH LEAKAGE TRIP FUNCTION AT LEAST
ONCE IN 3 MONTHS.
THE TEST PROCEDURE:
Press the test push button of the earth leakage trip while it is under tension. The earth leakage trip must go off!
!
