ASSEMBLY
Functional description
This portable hand held grass trimmer is powered by an electrical motor.
This trimmer features a single line bump feed head that is used for safe and efficient grass
cutting.
After the safety guard is installed it will protect the user during trimming operations.
The following describes the functions of the operating parts.
Extent of the delivery
Carefully unpack the trimmer and check that it is complete:
• Lawn trimmer (2 sections)
• Safety guard with 2 installation screws included.
• Flower guard
WARNING
Always disconnect from power source before working on the trimmer. Wait until motor has completely
stopped before attempting any maintenance. There is danger of electric
shock and the possibility
of injury by the rotating trimmer line unless motor has stopped rotating.
Assembling instructions
NOTE: Once the lower and upper sections of the trimmer has been assembled,
they can not be seperated.
Assembling the guard( Fig.
3-4
)
1. Assemble the housing and handle.
2. Align the safety guard with the holes on the underneath side of the motor housing and slide
into position.
3. Attach the guard with the two screws Assembling the equipment.
4. Connect the upper housing and the lower housing.
The safety guard and handle must be in the same direction. Be careful that the internal power
cord is not tight or twisted.

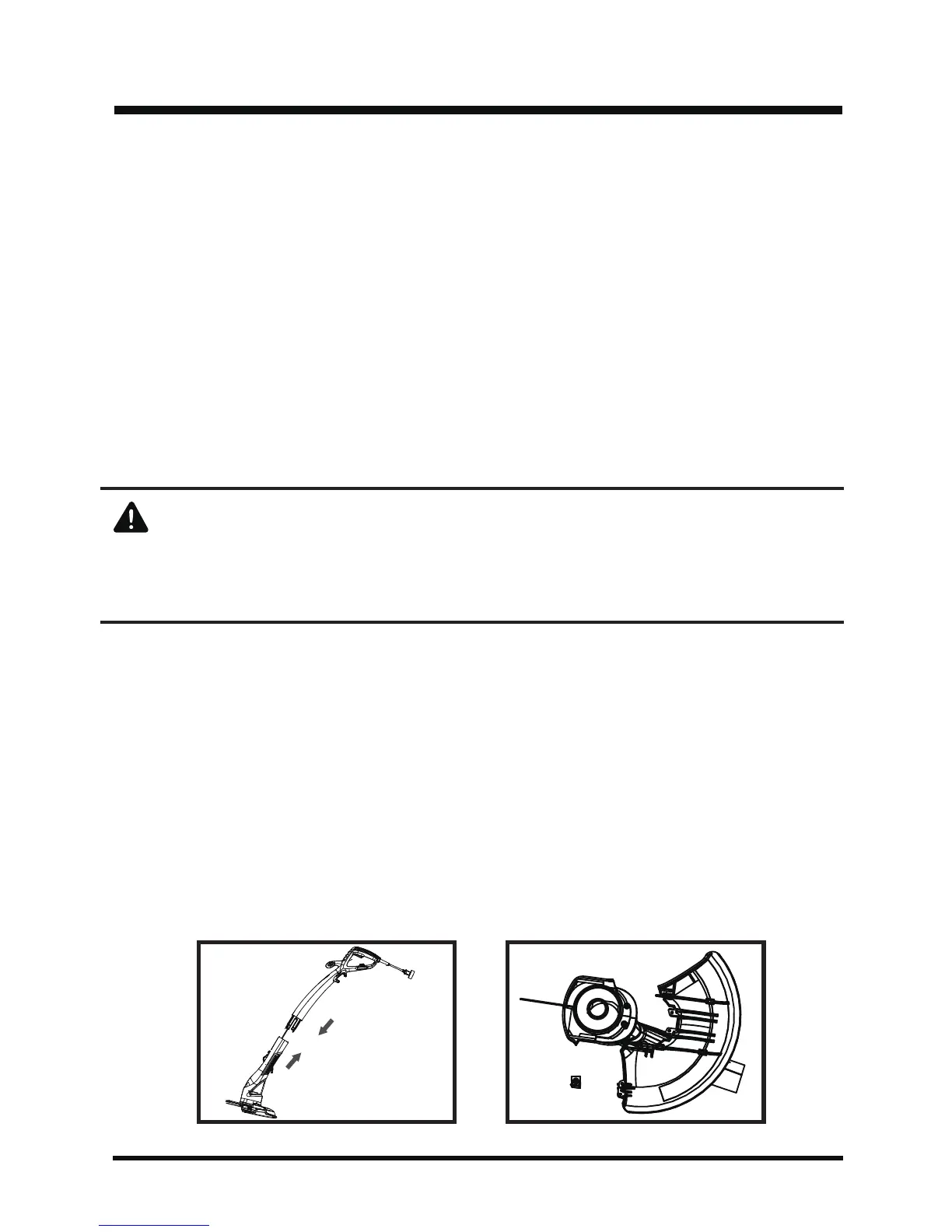

Fig. 3 Fig. 4
