9
iComfort S30 Commissioning (Conventional Outdoor Unit)
Both unit capacity and number of compressor stages are required to be
congured through the Lennox communicating thermostat. Once the
outdoor unit has been installed and connected to the equipment interface
module, go to the thermostat and start the conguration process.
1. From the equipment found screen, touch the non-communication
equipment location to add non-communicating equipment.

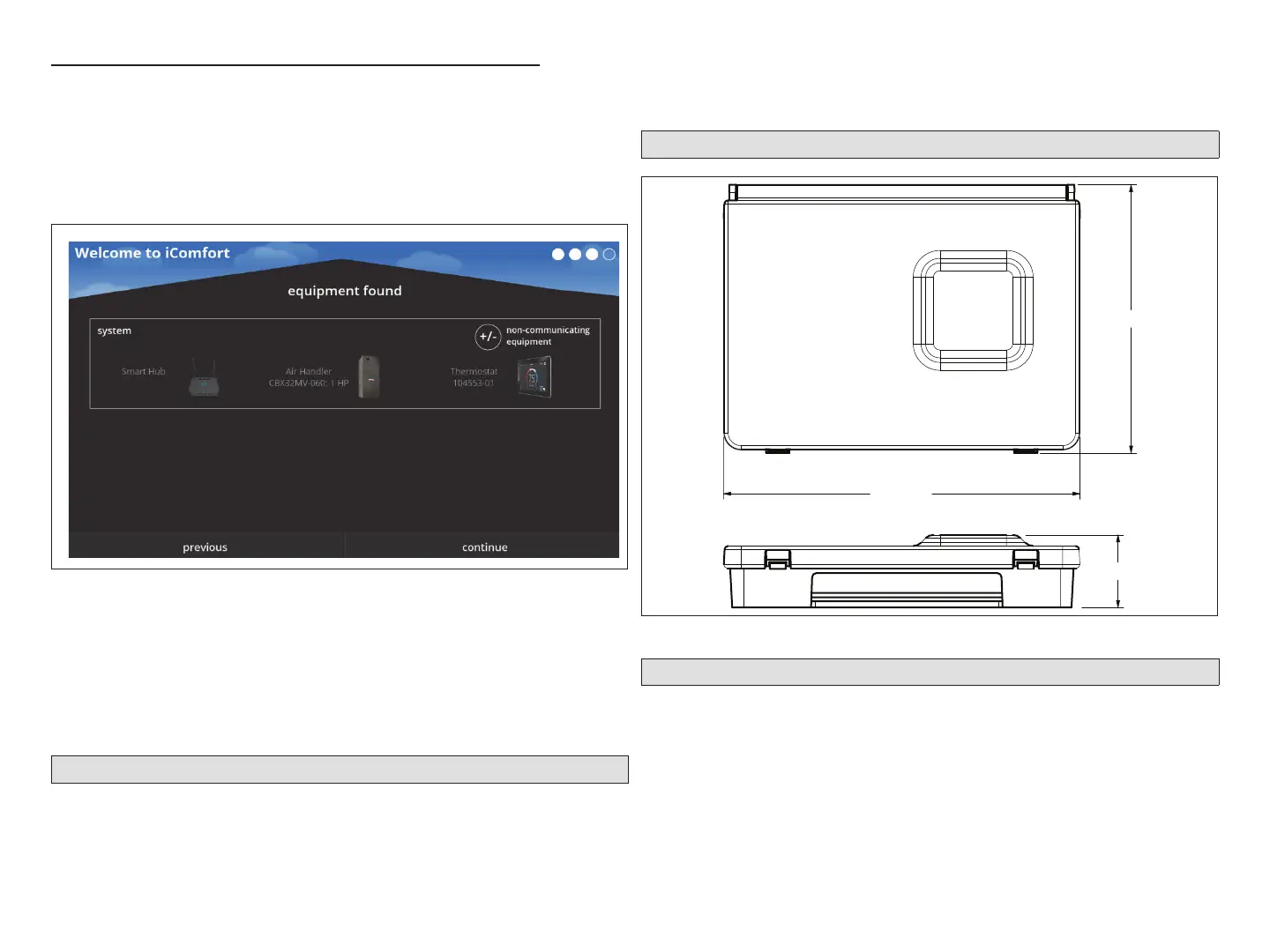

Figure 6. Adding Conventional Outdoor Unit
2. A add/remove equipment screen will appear. Under Outdoor Unit
Type, select the applicable 1 or 2-stage unit.
3. Touch either the plus or minus buttons to selected the applicable
Outdoor Unit Capacity. Valid options are 18, 24, 30, 36, 42, 48 and
60.
4. Touch save to continue.
Operating Environment Specications
The Equipment Interface Module is designed to operate in the following
environmental conditions.
• Operating Temperature Range: 40°F to 176°F (40° C to 80°C).
• Shipping and Storage Temperature Range: 40° F to 185°F (40°C to
85°C).
• Operating Humidity Range: 10% to 90% non-condensing at 104°F.
Unit Dimensions
8” (203mm)
6” (152mm)
1-5/8” (42mm)
Figure 7. Unit Dimensions
Duel-Fuel Operations
To use the EIM in dual-fuel mode, the following equipment combinations
and conguration is required.
Defrost Air Tempering Kit (67M41) will be required. The included DT1
discharge temperature probe is inserted in the furnace air outlet between
the furnace and the indoor coil to keep the furnace from overheating the
coil which would cause heat pump high pressure tripping during the defrost
cycling. The DT1 is only needed with non-communicating furnaces and is
not required for air handlers.
