Wiring and Sequence of Operation
Cut Size: 7" wide x 6" tall

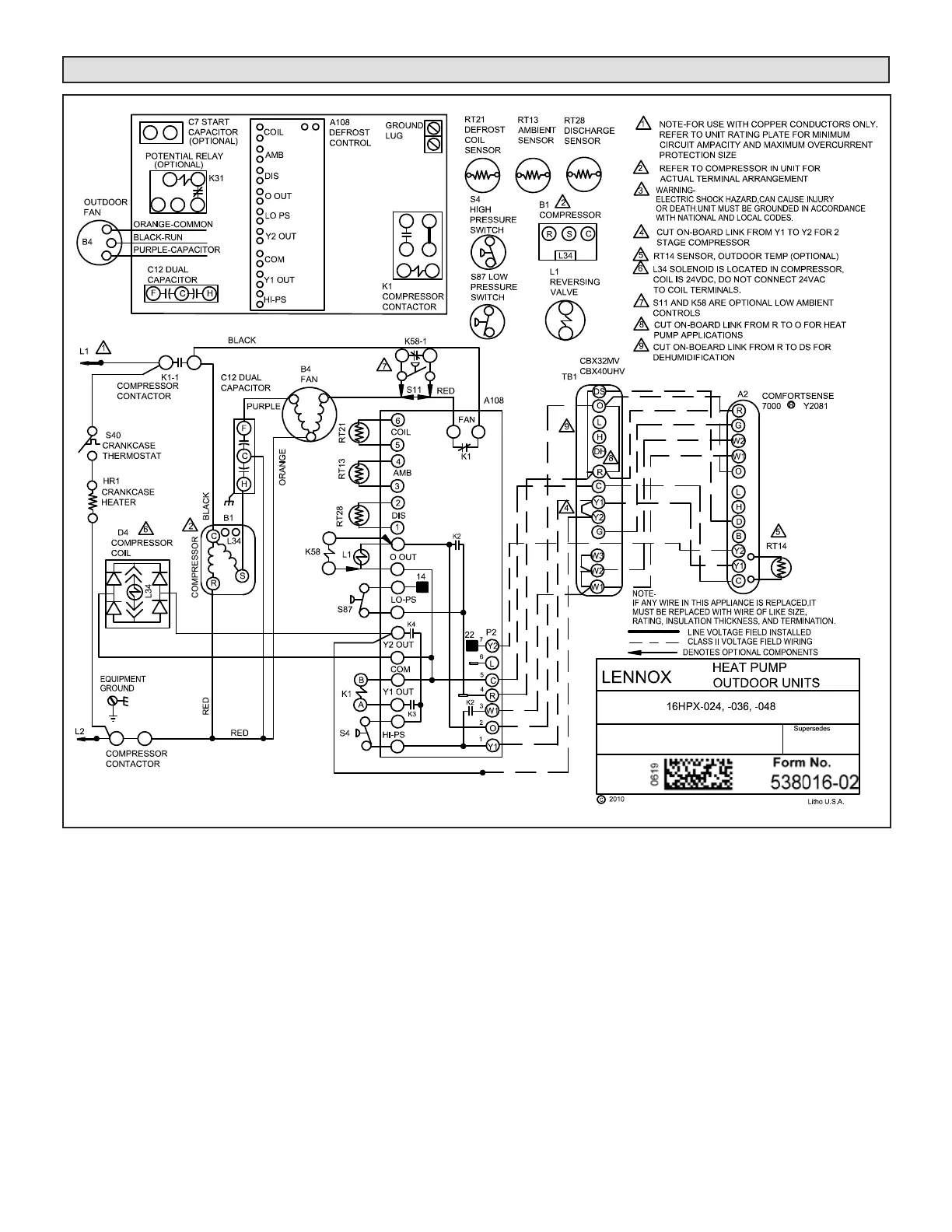

FIGURE 15. Typical Unit Wiring (-024, -036 and -048 Units)
