INSTALLATION
BALTIC R410A-IOM-0708-E Page 18
MINIMUM CLEARANCE AROUND THE UNIT

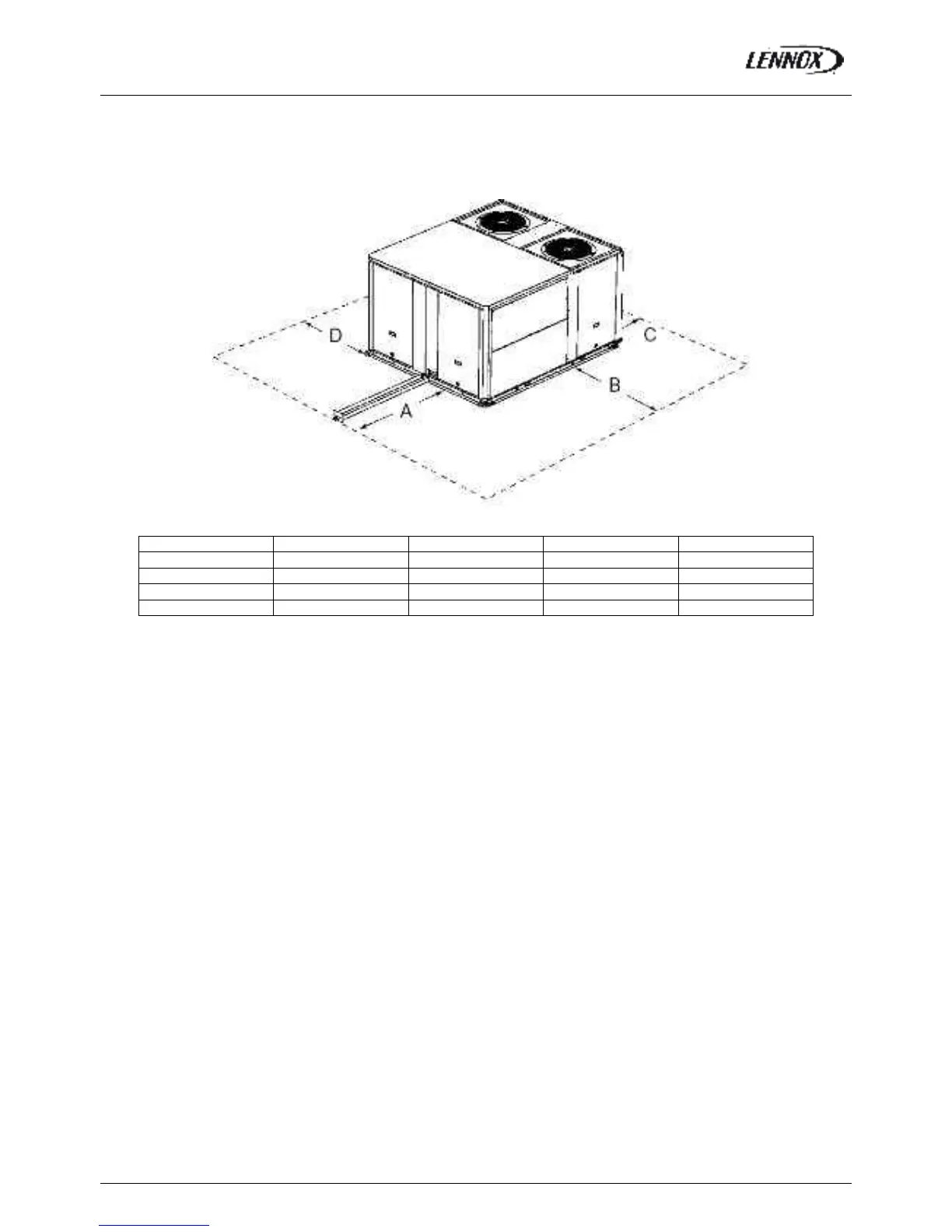

Figure 4 shows the required clearances and service access around the unit.
NOTE: Ensure the fresh air inlet does not face prevailing wind direction.
A B C D
B Box 1000
(1)
1500
(2)
1500 1000
C Box 1200
(1)
1500
(2)
1500 1000
D Box 1400
(1)
1500
(2)
1500 1000
E Box 1800
(1)
1500
(2)
1500 1100
(1) Add 1 meter if the units are equipped with gas burner
(2) Double this distance if the units are equipped with extraction
Fig. 16
