BALTIC R410A-IOM-0708-E Page 20
NON ADJUSTABLE NON ASSEMBLIED ROOFCURB
FRAME PARTS IDENTIFICATION

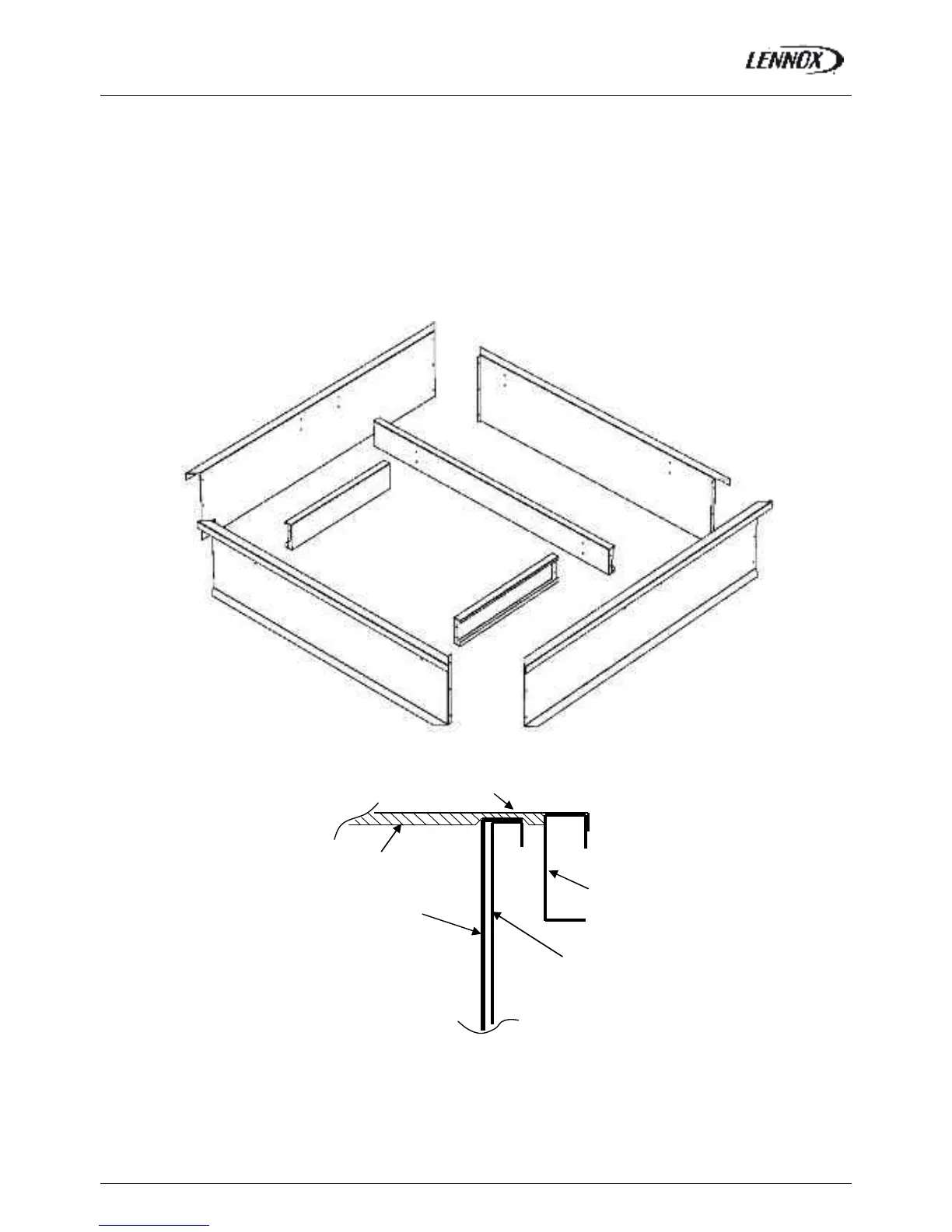

Figure 20 shows the different parts used in the assembly of this roof mounting frame.
INSTALLATION
The roof mounting frame provides support when the units are installed in down-flow configurations.
The non adjustable, non assembled roof mounting frame can be installed directly on decks having adequate structural strength
or on roof supports under deck. See page 24 for frame dimensions, location of supply and return air opening
NOTE: frame assembly must be installed flat, levelled within 5mm per linear meter in any direction.
UNIT FLOOR
UNIT FLOOR
