• 32 •
CFM
BS1
FASHFAIH
BS0
BH10
FM
BS2
MCMS
Installation Manual • COMPACTAIR ADV IOM-MIL157E-0418

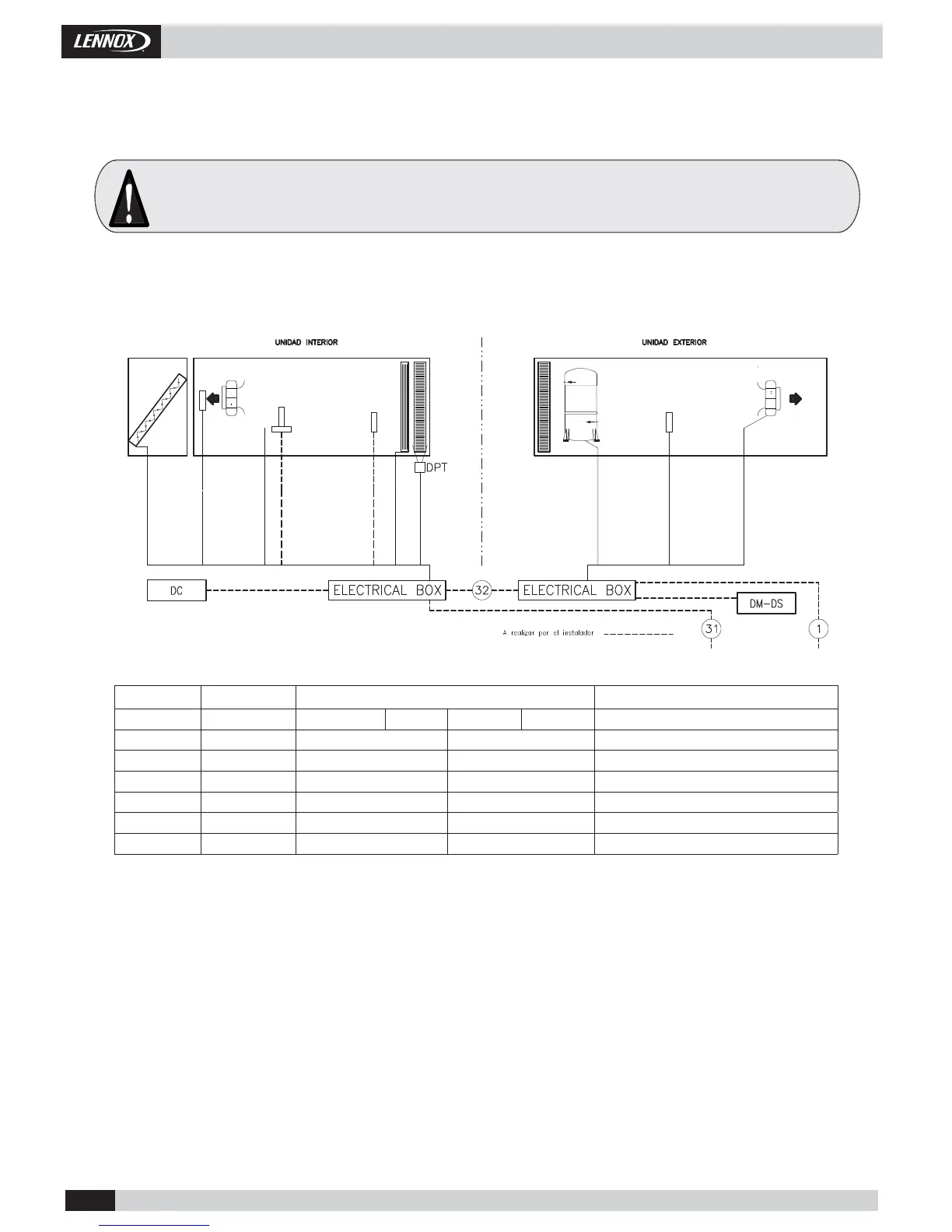

2.8.2.- ELECTRICAL CONNECTION FOR SPLIT UNITS.
2.- INSTALLATION
- Before making the electrical connections, ensure that all circuit breakers are open.
- To make the elctrical connections, follow the electrical diagram supplied with the unit.
- Take into account the current standard for the installation of the unit, whether local, regional or national standards.
- USE SUPERINMUNIZED DIFFERENTIAL SWITCHES.
2.8.- ELECTRICAL CONNECTIONS.
Connection 1 Connection 31
Connection 32
Unit Base unit Base unit ELHS ELHM ELHHM Interconnection
025 4G x 4mm² 4G x 2.5mm² 4G x 6mm² 3 x 0.5mm² shielded
035 4G x 6mm² 4G x 2.5mm² 4G x 6mm² 3 x 0.5mm² shielded
045 4G x 6mm² 4G x 2.5mm² 4G x 6mm² 3 x 0.5mm² shielded
060 4G x 10mm² 4G x 2.5mm² 4G x 16mm² 3 x 0.5mm² shielded
075 4G x 16mm² 4G x 2.5mm² 4G x 16mm² 3 x 0.5mm² shielded
085 4G x 16mm² 4G x 2.5mm² 4G x 16mm² 3 x 0.5mm² shielded
