• 31 •
CFM
BS1
BS0
BH10
BS2
B51
MS
MC
Installation Manual • COMPACTAIR ADV IOM-MIL157E-0418
2.- INSTALLATION
2.8.- ELECTRICAL CONNECTIONS.
- Before making the electrical connections, ensure that all circuit breakers are open.
- To make the elctrical connections, follow the electrical diagram supplied with the unit.
- Take into account the current standard for the installation of the unit, whether local, regional or national standards.
- USE SUPERINMUNIZED DIFFERENTIAL SWITCHES.

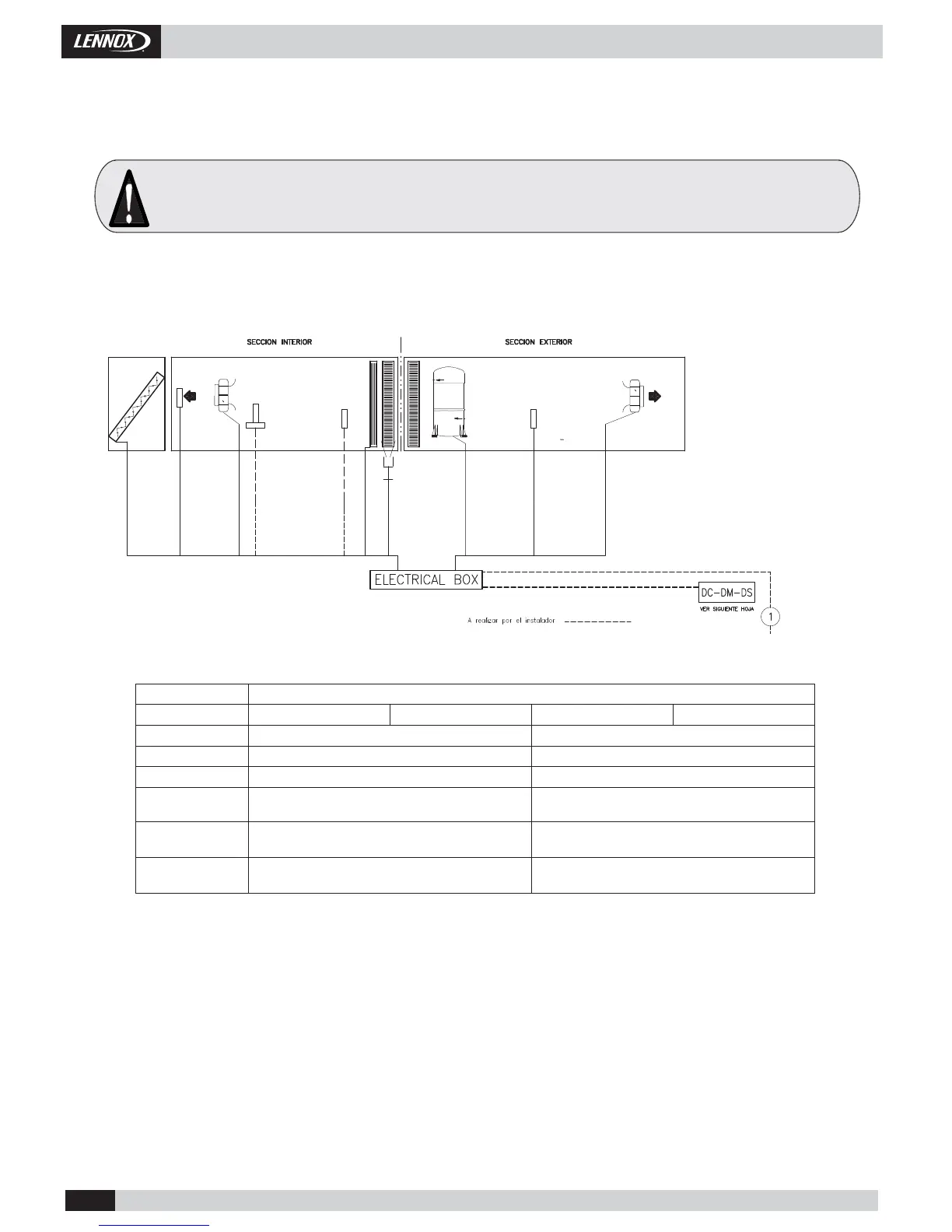

2.8.1.- ELECTRICAL CONNECTION FOR PACKAGE UNITS.
Connection 1
Unit Base unit Base unit + ELHS Base unit + ELHM Base unit + ELHHM
025 4G x 6mm² 4G x 10mm²
035 4G x 6mm² 4G x 16mm²
045 4G x 10mm² 4G x 16mm²
060 4G x 16mm²
3 x 50mm²
1 x 25mm²
075
3 x 25mm²
1 x 16mm²
3 x 50mm²
1 x 25mm²
085
3 x 25mm²
1 x 16mm²
3 x 70mm²
1 x 55mm²
