Page 27

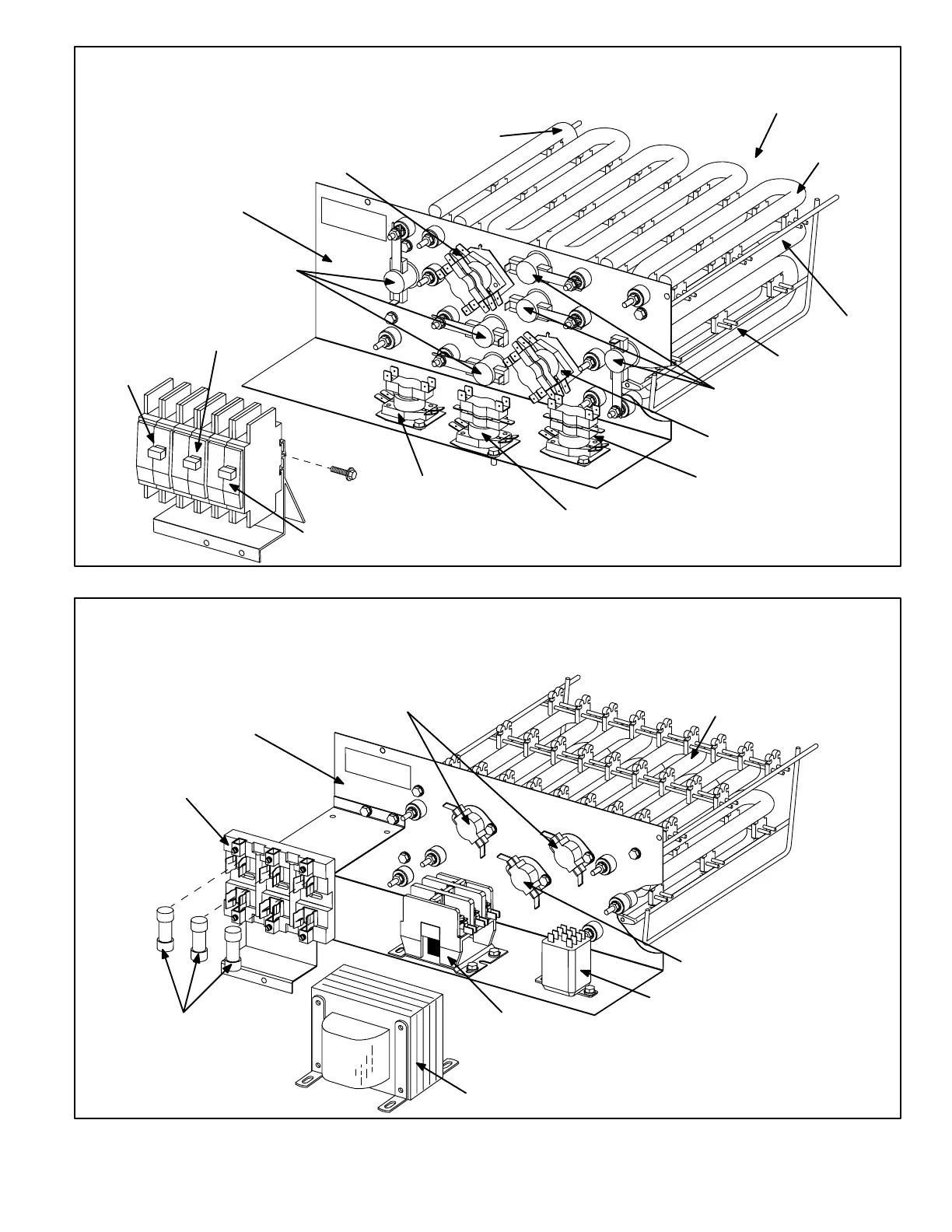

FIGURE 9
ECB29-20CB, -25CB 208/230 THREE PHASE
ECB29-25CB, -30CB 208/230 SINGLE PHASE
ELECTRIC HEAT VESTIBULE PARTS ARRANGEMENT
CIRCUIT BREAKER
(CB1)
PRIMARY LIMIT (S15)
& SECONDARY LIMIT (S20)
ELECTRIC HEAT
ELEMENT (HE4)
ELECTRIC HEAT
VESTIBULE PANEL
ELECTRIC HEAT
SEQUENCER RELAY (K32)
ELECTRIC HEAT
ELEMENT (HE5)
ELECTRIC HEAT
SEQUENCER RELAY (K33)
CIRCUIT BREAKER
(CB3)
PRIMARY LIMIT (S15)
& SECONDARY LIMIT (S20)
ELECTRIC HEAT
ELEMENT (HE1 & HE2)
(not shown)
ELECTRIC HEAT
ELEMENT (HE6)
ELECTRIC HEAT
SEQUENCER RELAY (K34)
CIRCUIT BREAKER
(CB2)
ELECTRIC HEAT
SEQUENCER RELAY (K35)
ELECTRIC HEAT
SEQUENCER RELAY (K116)
ELECTRIC HEAT
ELEMENT (HE3)
FIGURE 10
ECB29-20, -25 575V THREE PHASE
ECB29-10, -15, -20, -25 460V THREE PHASE
ELECTRIC HEAT VESTIBULE PARTS ARRANGEMENT
FUSE BLOCK
TERMINAL STRIP (TB3)
FUSE (F3)
TRANSFORMER (T1)
(575 VOLT ONLY
ELECTRIC HEAT
VESTIBULE PANEL
ELECTRIC HEAT
CONTACTOR (K15)
HEAT BLOWER RELAY
(K36)
ELECTRIC HEAT
ELEMENT (HE1)
PRIMARY LIMIT
(S15)
SECONDARY
LIMIT (S20)
