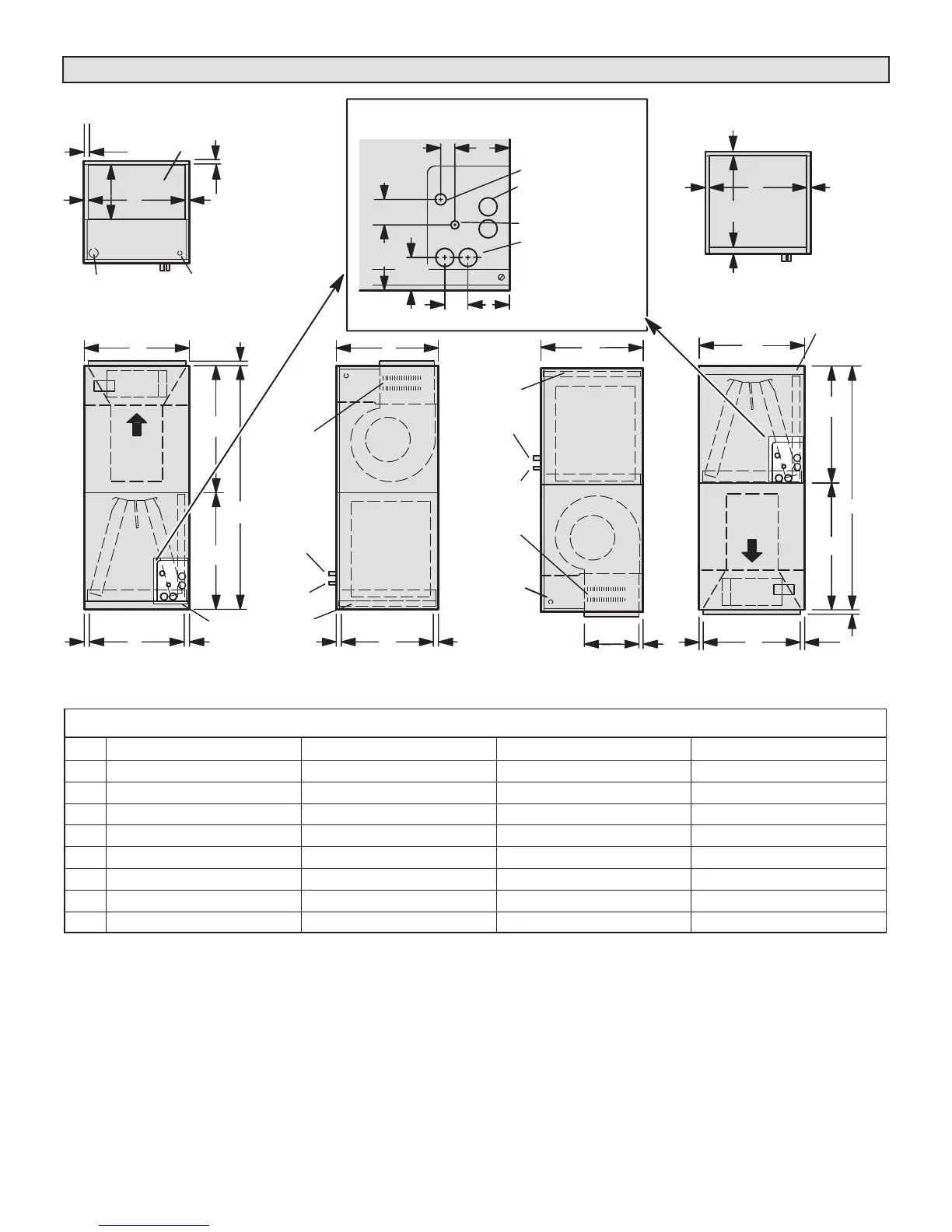

Lennox CBA27UHE-036 - CBA27 UHE Upflow and Downflow Unit Dimensions

Page 2
OPTIONAL
ELECTRIC HEAT
(FIELD-INSTALLED)
AIR
FLOW
LIQUID
LINE
SUCTION
LINE
SUPPLY AIR
OPENING
RETURN AIR
FILTER
LOW VOLTAGE
INLETS (TOP AND
RIGHT SIDE)
RETURN AIR
TOP VIEW
FRONT VIEW
SIDE VIEW
BLOWER
PIPING PLAT E DETAIL
(FOR UP-FLOW AND DOWN-FLOW POSITIONS)
A
CB
11‐1/16 (281)
D
F
E
LIQUID LINE
SUCTION LINE
CONDENSATE DRAINS
(2) (HORIZONTAL)
COIL
3/4 (19)
3/4 (19)
5/8 (16)
)52( 1)61( 8/5
5/8 (16)
1‐3/4 (44)
2
(51)
1‐1/8 (29)
4‐3/8 (111)
2‐3/4
(70)
5‐3/8
(137)
3‐1/2 (89)
OPTIONAL
ELECTRIC HEAT
(FIELD-INSTALLED)
AIR FLOW
LIQUID
LINE
SUCTION
LINE
Return
Air Opening
SUPPLY
AIR
FILTER
SUPPLY AIR
TOP VIEW
FRONT VIEW
SIDE VIEW
BLOWER
A
B
C
11‐1/16 (281)
F
D
E
COIL
5/8 (16)
5/8 (16)
5/8 (16)
5/8 (16)
5/8 (16)
LOW VOLTAGE
(RIGHT SIDE)
LINE VOLTAGE
(LEFT SIDE)
DOWN-FLOW POSITION
1 (25)
UP-FLOW POSITION
CONDENSATE DRAINS
(2) (UP-FLOW AND
DOWN-FLOW)
FILTER ACCESS
FILTER ACCESS
H
G
H
G
LINE VOLTAGE
INLETS (TOP
AND LEFT SIDE)
5/8 (16)
5/8 (16)
CBA27UHE Common Dimensions - Inches (mm)
Dim. -018/-024 -030/-036 -042/-048 -060
A
49-1/4 (1251) 51 (1295) 58-1/2 (1486) 62‐1/2 (1588)
B
21-1/4 (540) 21-1/4 (540) 21‐1/4 (540) 21‐1/4 (540)
C
20-5/8 (524) 22‐5/8 (575) 24-5/8 (625) 24-5/8 (625)
D
19-3/4 (502) 19-3/4 (502) 19‐3/4 (502) 19‐3/4 (502)
E
19 (483) 21 (533) 23 (584) 23 (584)
F
20 (508) 20 (508) 20 (508) 20 (508)
G
24-5/8 (625) 26‐3/8 (670) 27‐7/8 (708) 27‐7/8 (708)
H
24-5/8 (625) 24-5/8 (625) 30-5/8 (778) 34‐5/8 (879)
CBA27UHE Upow and Downow Unit Dimensions – Inches (mm)
