NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Trim stud
Door Handle
Holes for trim studs
Trim Nuts
#10 washers
Trim Pieces
Top of Trim
A
Figure 15
Figure 16
Figure 17
Figure 18

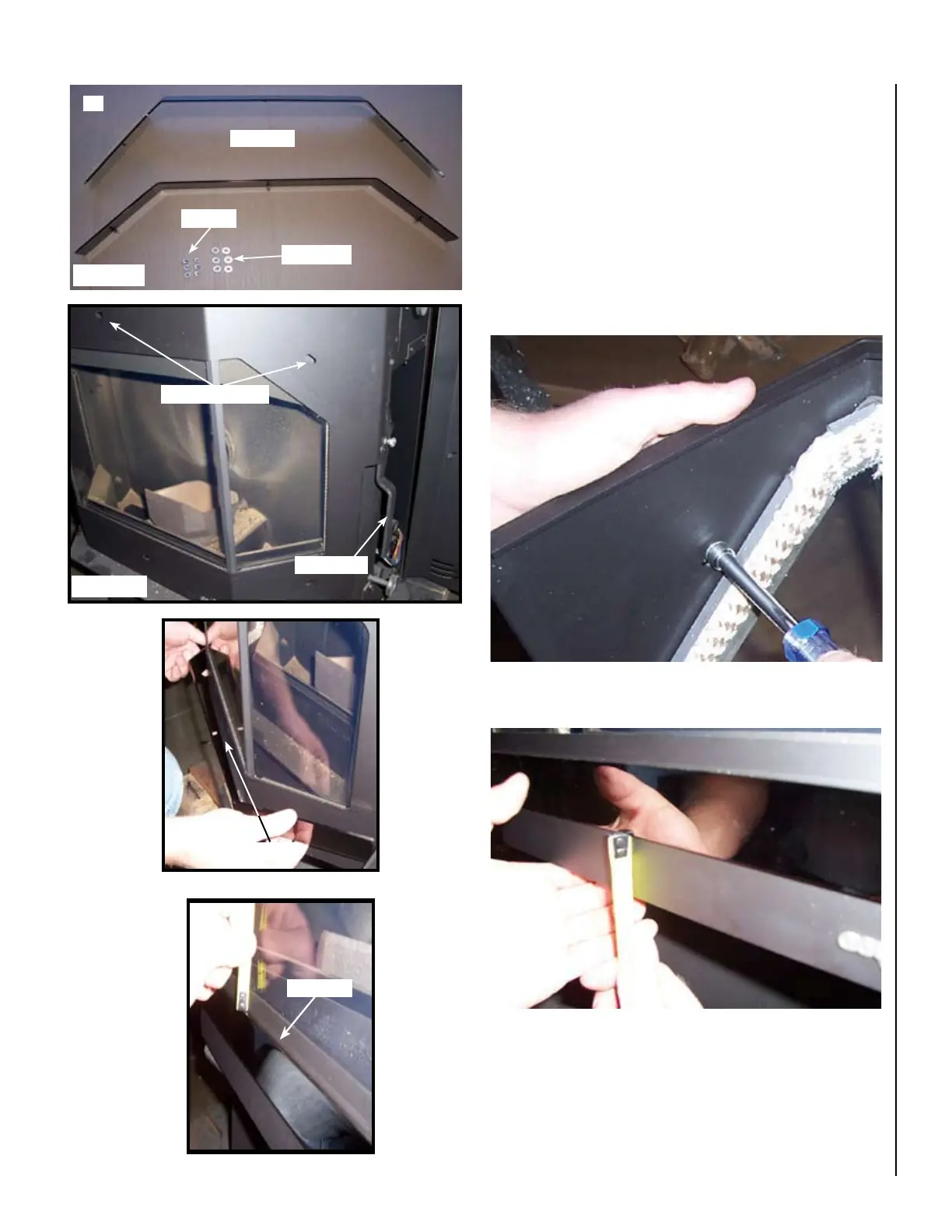

4. Place one washer on each stud. Using a 3/8” nut driver, snug up the
nuts on each piece of trim. Do not finish tightening the nuts yet. See
Figure 19
.
5. There should be approximately a 7/8” (22 mm) gap between the top
edge of the upper trim and the top edge of the door and a 1-1/2” (38
mm) gap between the bottom trim to the bottom of the door. Visually
inspect the alignment of the trim and adjust if necessary. See Figure
20.
6. Finish tightening nuts.
CAUTION - DO NOT OVER-TIGHTEN NUTS,
DIMPLING OF THE TRIM WILL OCCUR!!!
Figure 20
Figure 19
To Next Page
