NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Pellet Insert ZC Kit Assembly
Kit Contents

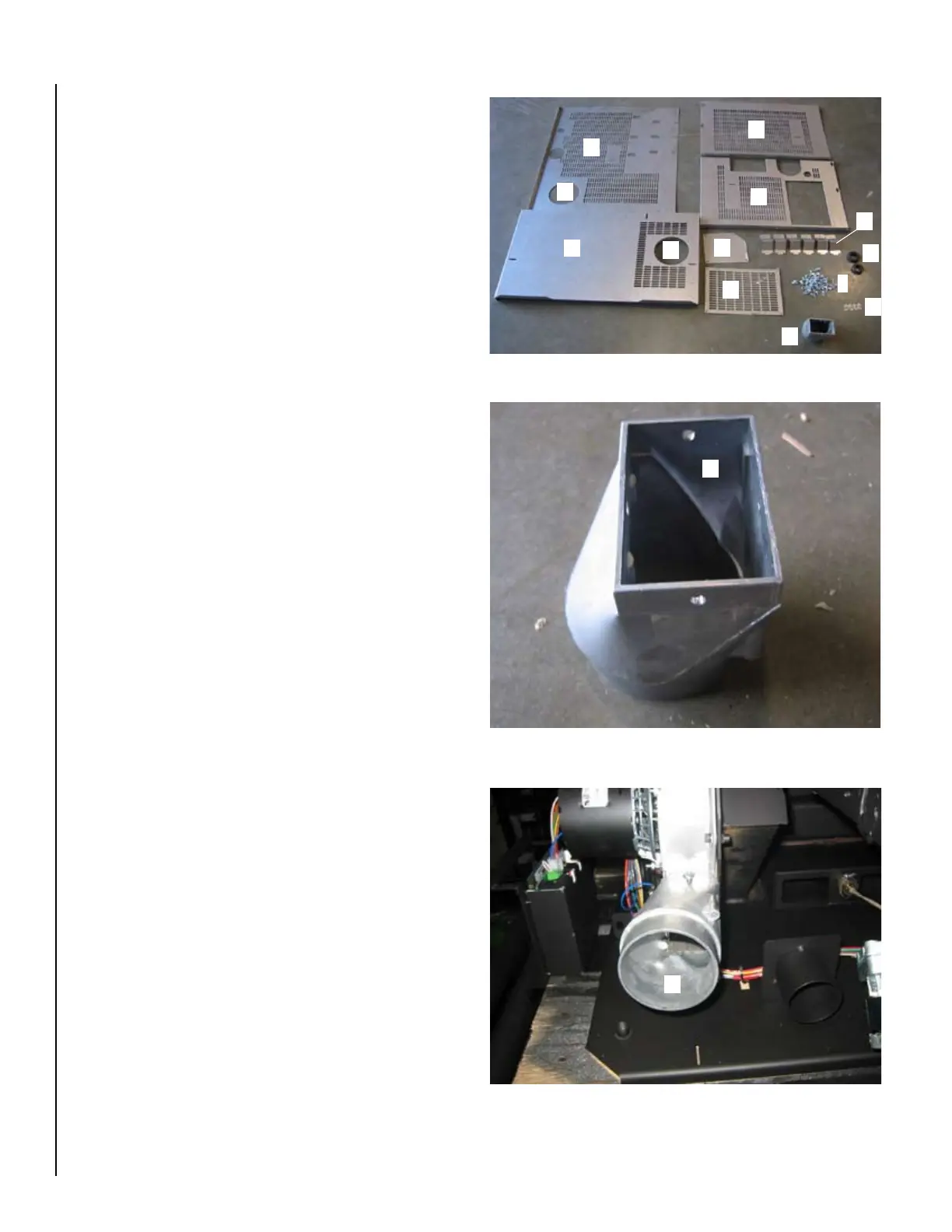

(refer to Figure 52)
1 ea. Back panel (A)
1 ea. Left side panel (B)
1 ea. Right side panel (C)
1 ea. Top panel (D)
1 ea. Access panel (E)
1 ea. Flue block off plate (F)
6 ea. Standoff brackets (G)
2 ea. Rubber grommets (H)
26 ea. 1/8 x 1/2 inch screws (I)
4 ea. Door washers (J)
1 ea. Rear vent adapter (K)
Tools Required
1/4” Nut Driver, 1/8” Drill
Installation Instructions
Note: Top or rear vent? If you will be venting out the top then you will
install the block off plate F onto the lower back panel A in the spot that
is marked R in Figure 52. If you are venting out the back you will install
the block off plate F onto the top panel D in the spot that is marked T in
Figure 52
. You will use four of the sheet metal screws provided to attach
the block off plate, part F.
1. In a rear vent termination you will have to remove the three screws
(one on top and one on each the right and left side) that hold on the
flue clean out box and replace it with the adapter (shown in Figure 53).
Make sure the flat edge is directed towards the inside of the insert.
(Figure 54).
Figure 52
Figure 53
Figure 54
E
A
D
R
T
F
C
B
H
K
J
I
G
K
K
