NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Note: The brick panel comes pre-painted with Metallic Black paint. The
brick panel may be painted with any color of high-temp paint (paint
may discolor with use).
1. Remove the front door of the pellet insert. To remove the front door,
open the two side panels, swing open the front door, and lift it up and
off of its hinges. Remove the optional log set, if present, and the burn
pot.

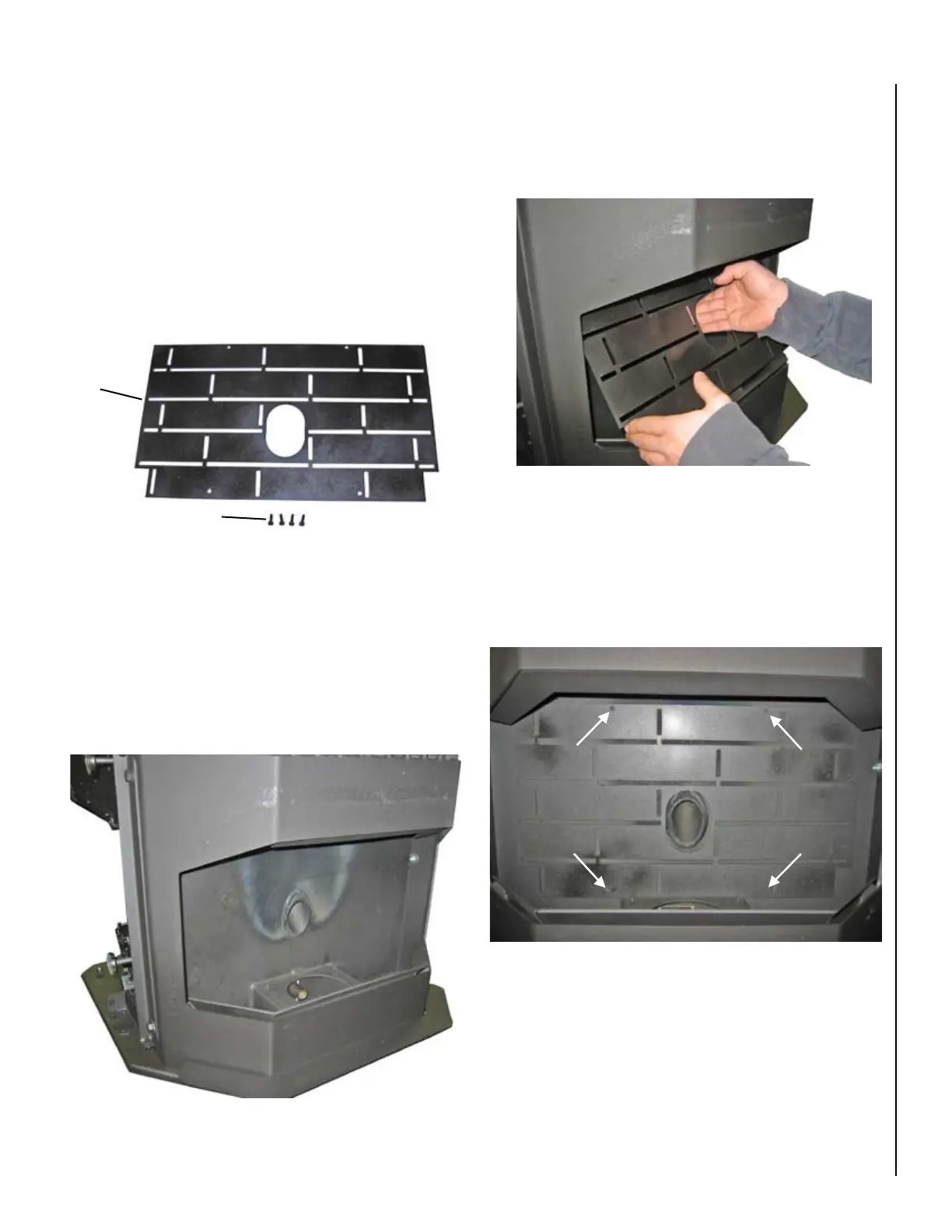

Brick Panel Installation
Option: Part #79030
Kit Contents
Brick Panel (A)
4 Tap Tights (B)
Tools Required
Drill (90° drill recommended)
#18 drill bit
5/32 allen wrench
Figure 26
2. Remove all pellets and ash from the firebox to ensure a proper fit for
the brick panel.
3. Insert the brick panel, top first, as shown in Figure 27
. The two cut
out corners should be at the bottom.
4. Make sure that the brick panel is centered, with equal space on either
side of the auger tube. While holding the panel in place, use the drill
with a #18 drill bit to drill out the four holes in the back of the firebox,
as shown in Figure 28.
Figure 27
Figure 28
Figure 25
