WARNING: Electric shock hazard can cause injury or death. Before attempting to perform any service or maintenance
on the unit, turn OFF the electrical power, and check that the fan has stopped.
MODEL
600x1200
MODEL
600x600

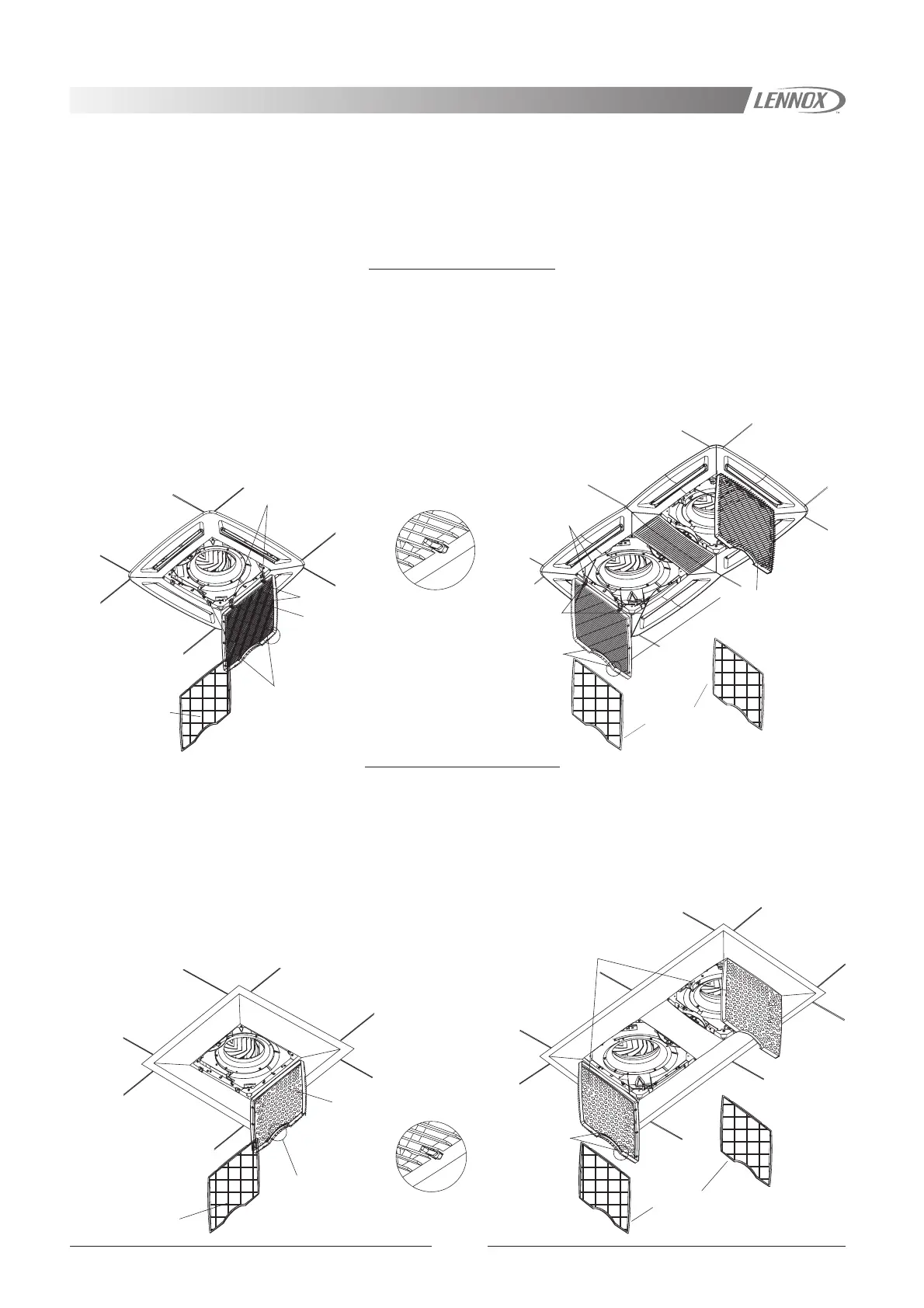

MAINTENANCE
DETAIL A
1.- Stop the unit.
2.- Open the air intake grille on the unit.
Open the grille by way of one hand trigger, which is close to the Lennox brand. The grille will swing down supported by two
screws located on the opposite side of the hand trigger.
3.- Remove the air filter .
The filter can be removed from the grille, pulling up from it.
Clean the air filter depending on the operation conditions and working time, (approximately once every 6 months).
Use a vacuum cleaner to clean dust off. If the filter is too dirty, wash it with water and neutral detergent. Dry the filter before
re-fitting.
4.- Replace the filter in the right position.
5.- Close the air intake grille.
Place the hand trigger on position again.
A
HAND
TRIGGERS
HOOKS
STAYS
AIR FILTER
AIR INTAKE GRILLE
CLEANING THE AIR FILTER
ALWAYS INSTALL THE FILTER
If the unit operates without the filter, there is a risk of damaging the unit through dust contamination.
1.- Stop the unit.
2.- Open the air intake grille on the unit.
Open the grille by way of two hand triggers. The grille will swing down supported by the stays and the hooks.
3.- Release the air intake grille from de unit.
To release the grille pull it down until the stays can be unlock from the diffuser, then pull it back to an angle greater of 90º and
lift it lightly, finally the grille hooks will come away from the diffuser.
4.- Remove the air filter once the air intake grille has been released
Clean the air filter depending on the operation conditions and working time, (approximately once every 6 months).
Use a vacuum cleaner to clean dust off. If the filter is too dirty, wash it with water and neutral detergent. Dry the filter before
re-fitting.
5.- Replace the filter in the right position.
6.- Close the air intake grille.
Place the hand triggers on position again.
