SPECIFICATIONS - Model 2800HT
PAGE 21
Approx. heat capacity Up to ~1800 Sq. Feet
Up to ~ 550 Sq. Meters
Maximum log length 18" (457 mm)
Flue size 6" (152 mm)

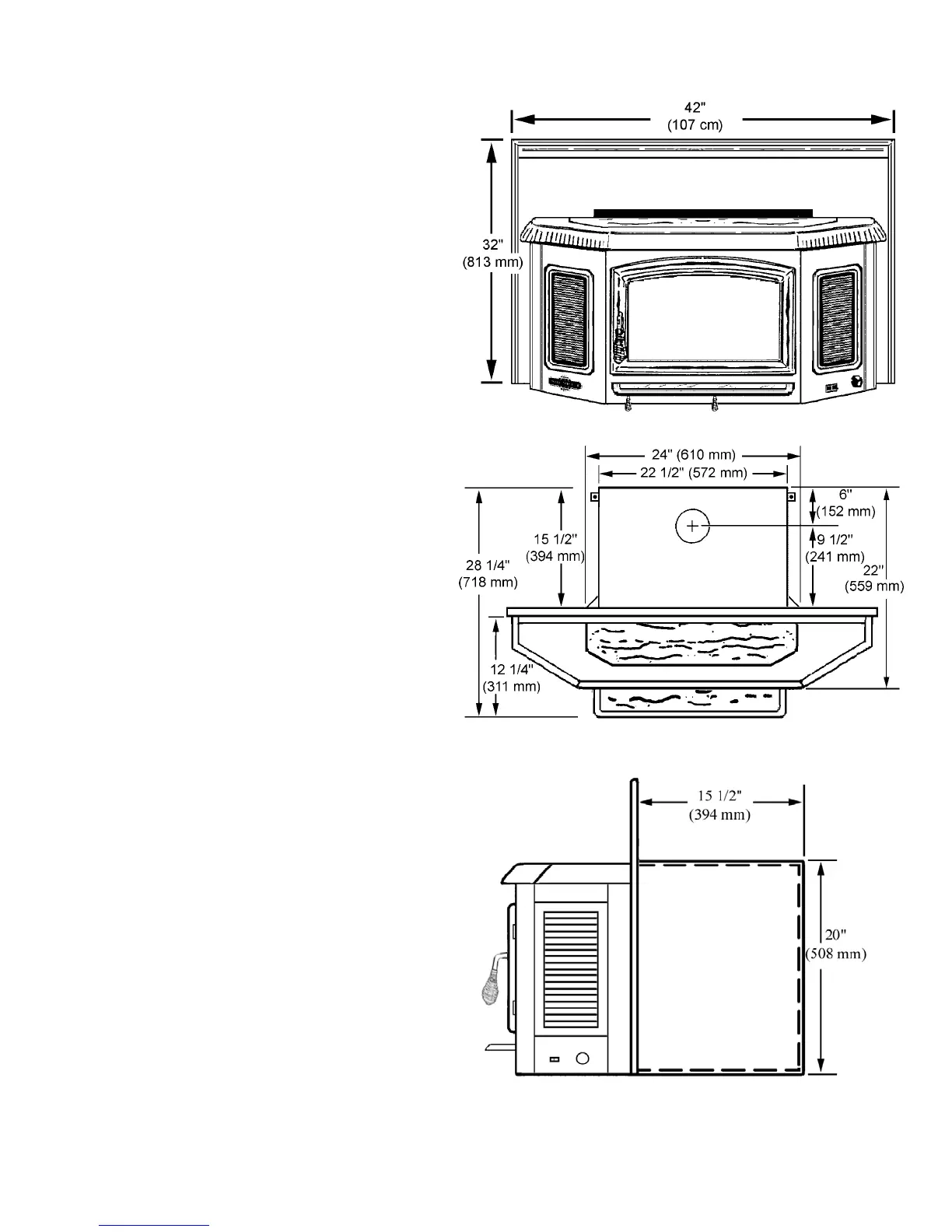

Width w / standard surround 42" (107 cm)
Width at fireplace opening 24" (610 mm)
Width at rear of firebox 22 ½” (572 mm)
Depth into Fireplace 15 ½” (394 mm)
Depth (overall) 28 ¼” (718 mm)
Height 20" (508 mm)
Height w / standard surround 32" (813 mm)
Back of Stove to
Center of Flue 6" (152 mm)
Approx. burn time 8-10 hours
Fuel capacity 50 - 60 lbs.
(23 – 27 kg)
Firebox size (cubic feet) 2.9 c.f. (884 cubic mm)
Maximum Burn Rate 74,100 BTU
EPA BTU Range 11,500-46,700
BTU
EPA Efficiency 63%
Emissions Rate (grams / hour) 4.5 gph
Approx. weight with brick 435 lbs. (197 kg)
Primary Air Control Manual
Start-up Air Manual
Blower Assemblies 500 cfm total
(4 fans, 125 cfm ea., .42 amps ea.)
~ Square feet heating capacity and burn time are approxi-
mations only. They will vary depending upon the level of
insulation, climate, house design, ceiling height, ambient
outside temperatures and how the stove is operated.
Dimensions shown are approximations only (+/- ¼”
[6.4 mm])
