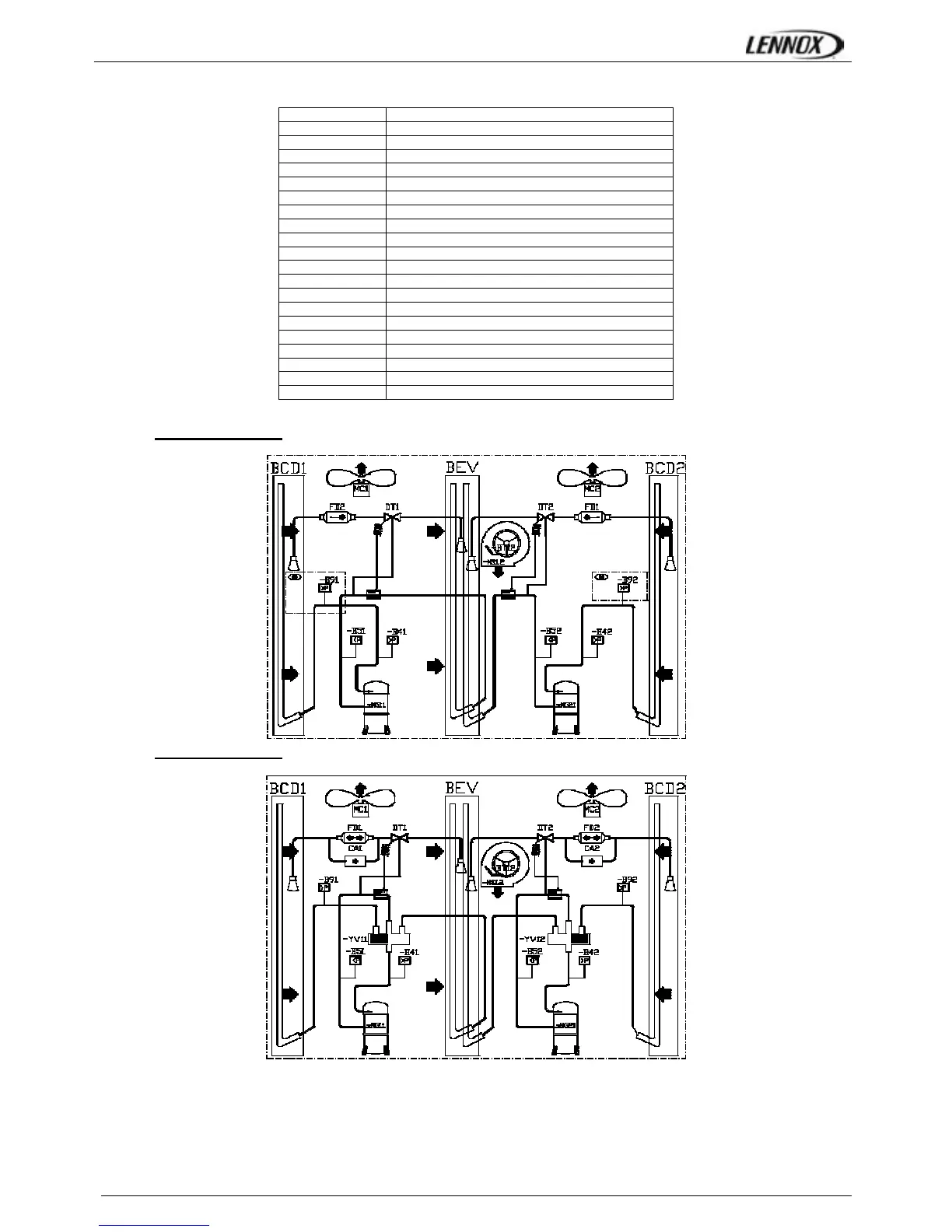

PRINCIPLE SKETCHES
FLEXYII_WSHP-IOM-0909-E Page 101
BCD1.2 CONDENSER COIL
BEC HOT WATER COIL
BEV EVAPORATOR COIL
CA1.2 CHECK VALVE
DT1.2 THERMOSTATIC EXPANSION VALVE
FD1.2 FILTER DRIER
- B14 - B15 HOT WATER COIL ANTIFREEZE THERMOSTAT
- BT12 BLOWER TEMPERATURE PROBE
- BT17 RETURN REGULATION TEMPERATURE SENSOR
- B41 - B42 COMPRESSOR -MG1 - MG2 HIGH PRESSURE SAFETY SWITCH
- B51 - B52 COMPRESSOR -MG1 - MG2 LOW PRESSURE SAFETY SWITCH
- B61 - B62 COMPRESSOR -MG1 - MG2 HIGH PRESSURE CONTROL SWITCH
- MC1 - MC2 CONDENSER -MC1 - MC2 FAN MOTOR
- MC3 - MC4 CONDENSER -MC3 - MC4 FAN MOTOR
- MG11 - MG12 COMPRESSOR -MG1 - MG2
- MG21 - MG22 COMPRESSOR -MG3 - MG4
- MS1 - 2 BLOWER FAN MOTOR -MS1
VAM1.2 MANUAL CHECK VALVE
VRM MANUAL REGULATION VALVE
- YV2 HOT WATER 3-WAY VALVE
- YV11 - YV12 COMPRESSOR -MG1 - MG2 REVERSAL CYCLE VALVE
FCM 085 to 120
FHM 085 to 120
